Honda PCX150 2016 User Manual

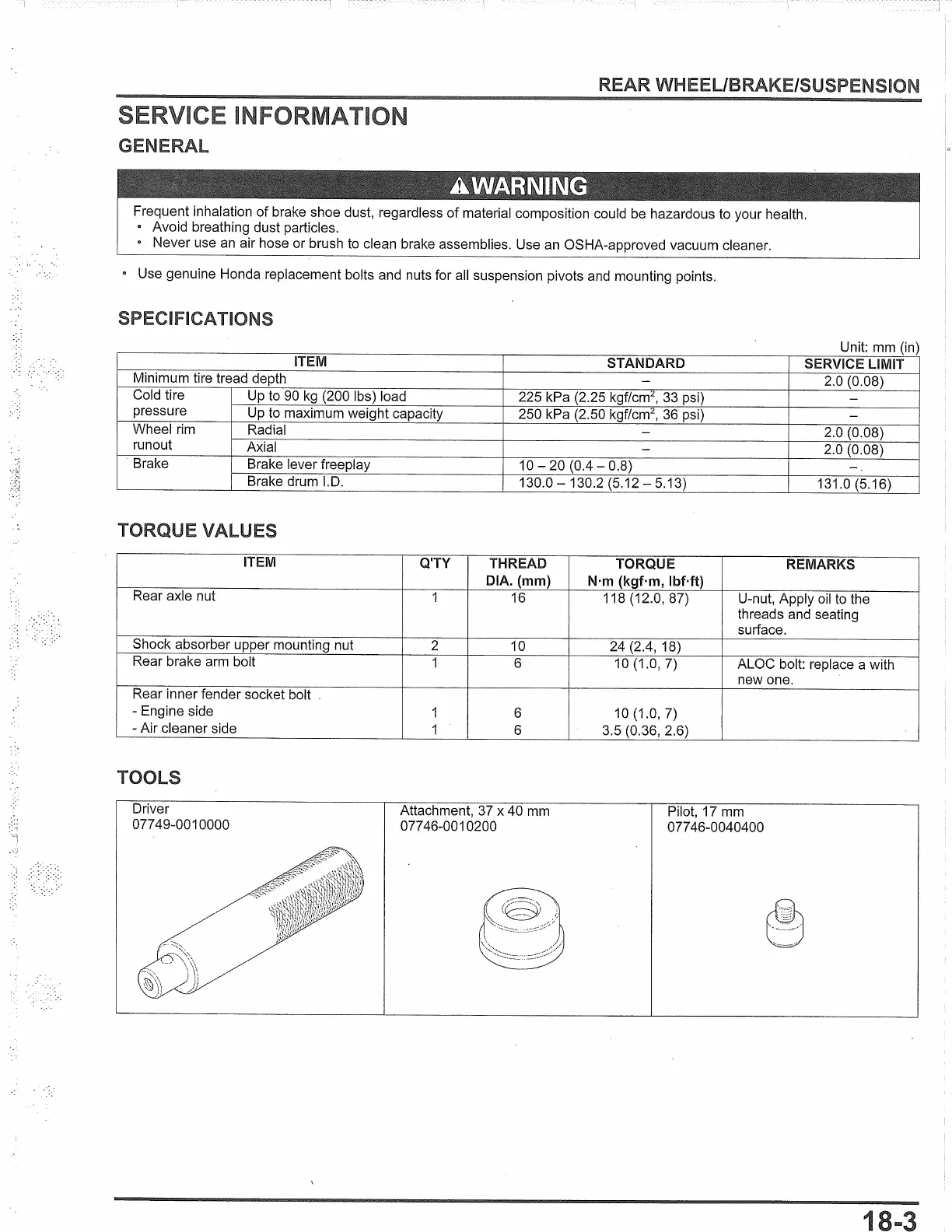

WHEEL/BRAKE/SUSPENSION
GENERAL
Frequent inhalation
of
brake shoe dust, regardless
of
material composition could be hazardous to your health.
• Avoid breathing dust particles.
• Never use
an
air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.
• Use genuine Honda replacement bolts and nuts for all suspension pivots and mounting points.
SPECIFICATIONS
Unit: mm (in)
ITEM
STANDARD SERVICE LIMIT
Minimum tire tread depth
-
2.0 (0.08)
Cold tire
Up to
90
kg
(200 lbs) load
225 kPa (2.25 kgf/cm
2
,
33 psi)
-
pressure
Up to maximum weight capacity
250 kPa (2.50 kgf/cm
2
,
36 psi)
-
Wheel rim
Radial
-
2.0 (0.08)
runout
Axial
-
2.0 (0.08)
· Brake
Brake lever freeplay
10-20
(0.4-
0.8)
-
Brake drum
1.0.
130.0-130.2
(5.12-5.13)
131.0 (5.16)
TORQUE VALUES
ITEM
Q'TY THREAD TORQUE REMARKS
DIA. (mm)
N·m (kgf·m,
lbMt)
Rear axle nut
1
16
118(12.0,87)
U-nut, Apply oil to the
threads and seating
surface.
Shock absorber upper mounting nut
2 10 24 (2.4, 18)
Rear brake arm bolt
1 6
10(1.0,7)
ALOC bolt: replace a with
new one.
Rear inner fender socket bolt .
- Engine side
1 6
10(1.0,7)
- Air cleaner side
1 6 3.5 (0.36, 2.6)
TOOLS
Driver
07749-0010000
Attachment, 37 x 40 mm
077 46-0010200
Pilot, 17 mm
077 46-0040400
18-3

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
