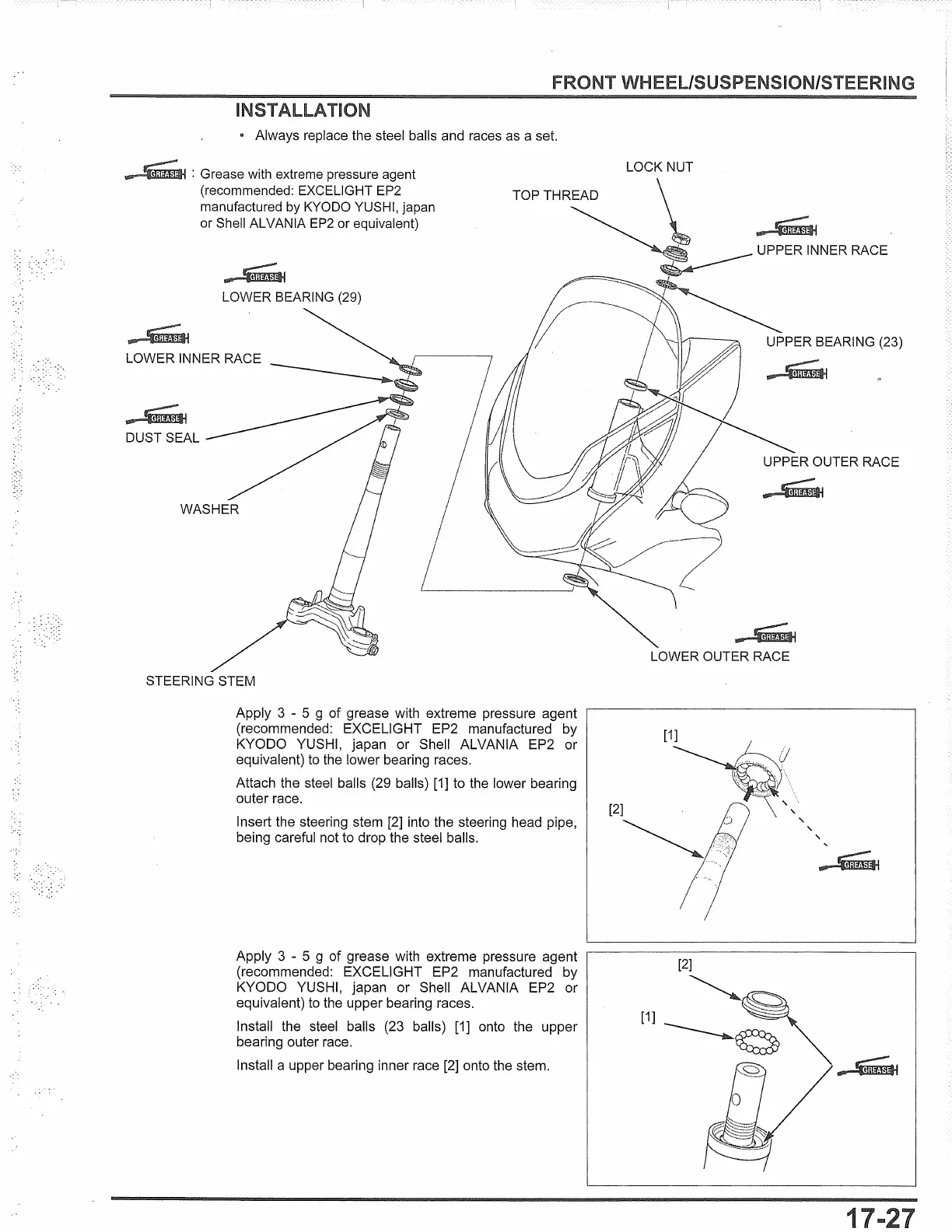

FRONT WHEEL/SUSPENSION/STEERING
INSTALLATION
• Always replace the steel balls and races as a set.
LOCK
NUT
-~1'.'t:1:11 : Grease with extreme pressure agent
(recommended: EXCELIGHT EP2
manufactured by KYODO YUSHI, japan
or Shell ALVANIA EP2 or equivalent)
TOP THREAD \
~ UPPER INNER RACE.
--==-----c:- I
LOWER BEARING (29)
DUST SEAL
I
STEERING STEM
Apply 3 - 5 g of grease with extreme pressure agent
(recommended: EXCELIGHT EP2 manufactured by
KYODO YUSHI, japan or Shell ALVANIA EP2 or
equivalent)
to the lower bearing races.
Attach the steel balls
(29 balls) [1] to the lower bearing
outer race.
Insert the steering stem [2] into the steering head pipe,
being careful not to drop the steel balls.
Apply 3 - 5 g of grease with extreme pressure agent
(recommended: EXCELIGHT EP2 manufactured by
KYODO YUSHI, japan or Shell ALVANIA EP2 or
equivalent)
to the upper bearing races.
Install the steel balls (23 balls) [1] onto the upper
bearing outer race.
Install a upper bearing inner race [2] onto the stem.
~"",
I
LOWER OUTER RACE
0
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
