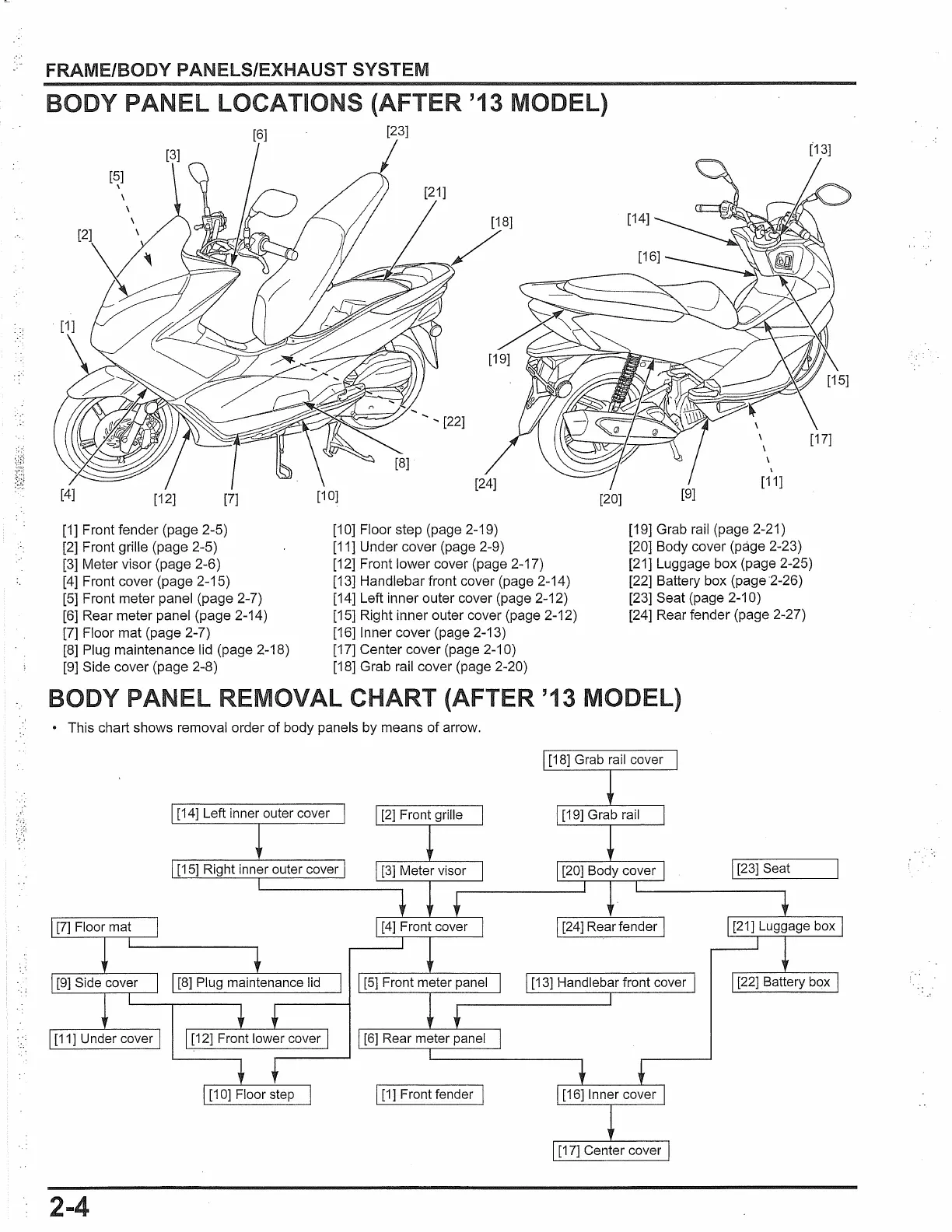

FRAME/BODY PANELS/EXHAUST SYSTEM
BODY PAN
LOCATIONS (AFTER '13 MODEL)
[12]
[7]
[1] Front
fender
(page
2-5)
[2] Front grille (page 2-5)
[3] Meter visor (page
2-6)
[4] Front cover (page
2-15)
[5] Front meter panel
(page
2-7)
[6] Rear meter panel (page 2-14)
[7] Floor
mat
(page 2-7)
[8] Plug maintenance lid (page 2-18)
[9] Side cover (page 2-8)
[23]
[1
O]
Floor step (page 2-19)
[11]
Under
cover
(page 2-9)
[12] Front
lower
cover (page 2-17)
[13] Handlebar front cover (page 2-14)
[14] Left inner outer cover (page 2-12)
[15] Right inner outer cover (page 2-12)
[16] Inner
cover
(page 2-13)
[17] Center cover (page 2-10)
[18] Grab rail cover (page 2-20)
[13]
[19] Grab rail (page 2-21)
[20] Body cover (page 2-23)
[21] Luggage box (page 2-25)
[22] Battery box (page
2-26)
[23] Seat (page 2-10)
[24] Rear
fender
(page 2-27)
BODY PANEL REMOVAL CHART (AFTER '13 MODEL)
• This chart shows removal order
of
body panels by means
of
arrow.
[18] Grab rail cover
[14] Left inner outer cover
[2] Front grille [19] Grab rail
[15] Right inner outer cover
[3] Meter visor
[20] Body cover
j [23] Seat
[7] Floor mat
[4] Front cover
j [24] Rear fender I
[21] Luggage box
[9] Side cover
[8] Plug maintenance lid [5] Front meter panel [13] Handlebar front cover
I [22] Battery box j
[11] Under cover [12] Front lower cover
[6] Rear meter panel
[1
O]
Floor step
I [1] Front fender j
[16] Inner cover
[17] Center cover
2-4
