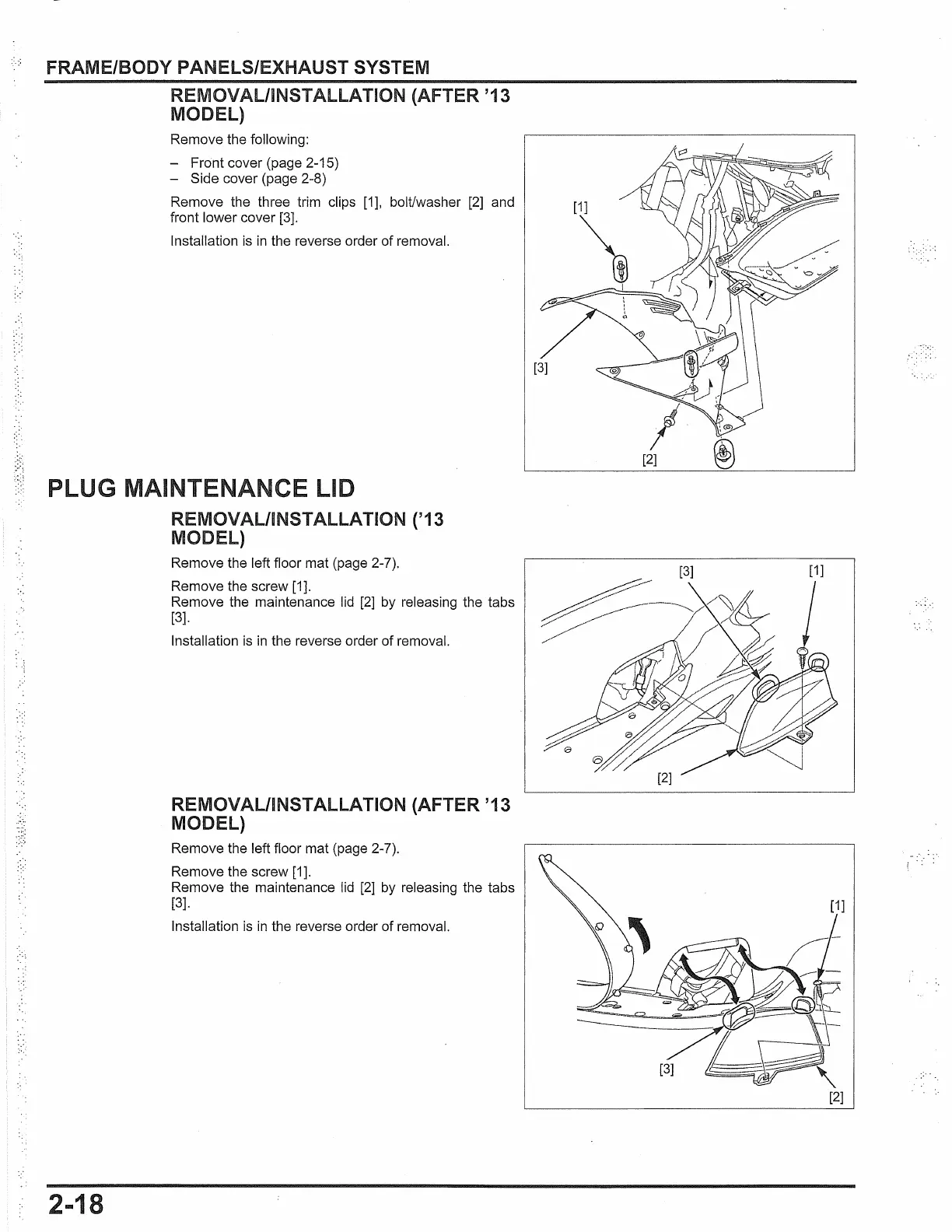

FRAME/BODY PANELS/EXHAUST SYSTEM
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the following:
- Front cover (page 2-15)
- Side cover (page 2-8)
Remove the three trim clips [1], bolt/washer
[2] and
front lower cover [3].
Installation
is in the reverse order of removal.
PLUG MAINTENANCE LID
REMOVAL/INSTALLATION ('13
MODEL)
2-18
Remove the left floor mat (page 2-7).
Remove the screw [1].
Remove the maintenance
lid [2] by releasing the tabs
[3].
Installation is in the reverse order of removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the left floor mat (page 2-7).
Remove the screw [1].
Remove the maintenance
lid [2] by releasing the tabs
[3].
Installation is in the reverse order of removal.
[2]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
