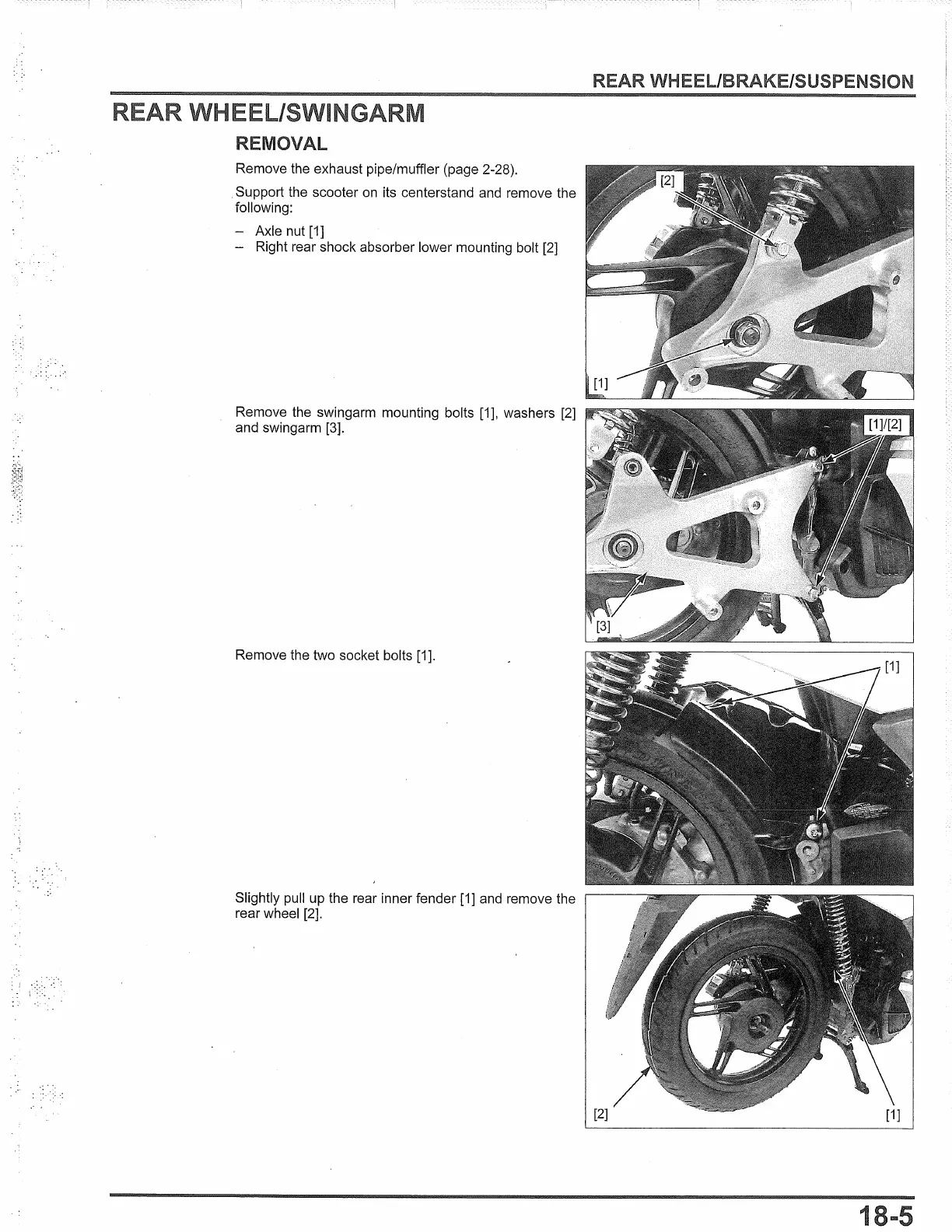

Remove the exhaust pipe/muffler (page 2-28).
Support the scooter
on
its centerstand
and
remove the
following:
- Axle nut [1]
- Right rear shock absorber lower mounting bolt
[2]
Remove the swingarm mounting bolts [1], washers
[2]
and swingarm [3].
Remove the two socket bolts
[1
].
Slightly pull
up
the rear inner fender
[1]
and
remove the
rear wheel [2].
WHEEL/BRAKE/SUSPENSION
