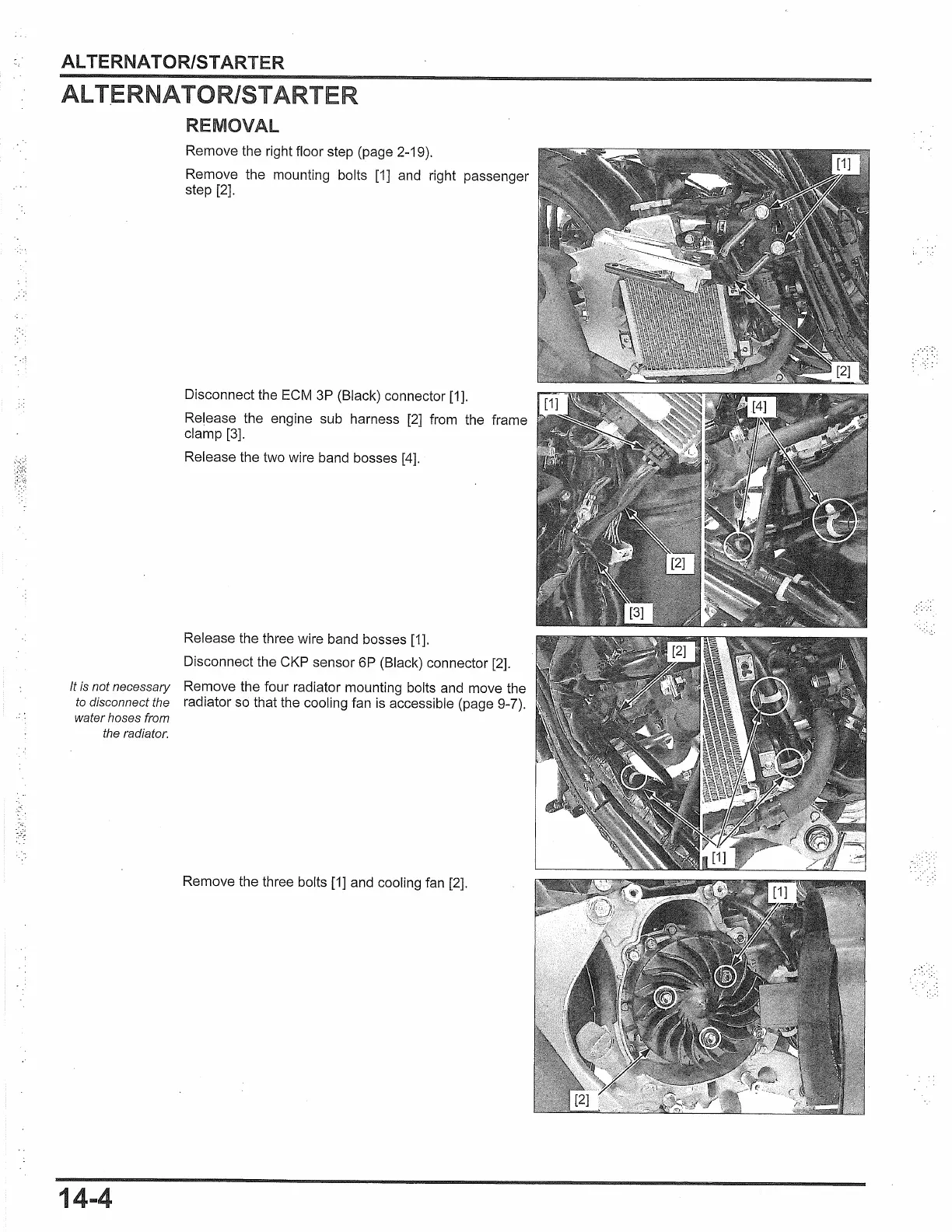

AL
TERNA
TOR/ST
ARTER
REMOVAL
Remove the right floor step (page 2-19).
Remove the mounting bolts [1] and right passenger
step [2].
Disconnect the
ECM
3P
(Black) connector
[1
].
Release the engine sub harness
[2]
from the frame
clamp [3].
Release the two wire band bosses
[4].
Release the three wire band bosses
[1].
Disconnect the CKP sensor 6P (Black) connector [2].
It is not necessary
Remove the four radiator mounting bolts and move the
to
disconnect the
radiator so that the cooling fan
is
accessible (page 9-7).
water hoses from
the radiator.
Remove the three bolts
[1]
and cooling fan [2].
14-4
