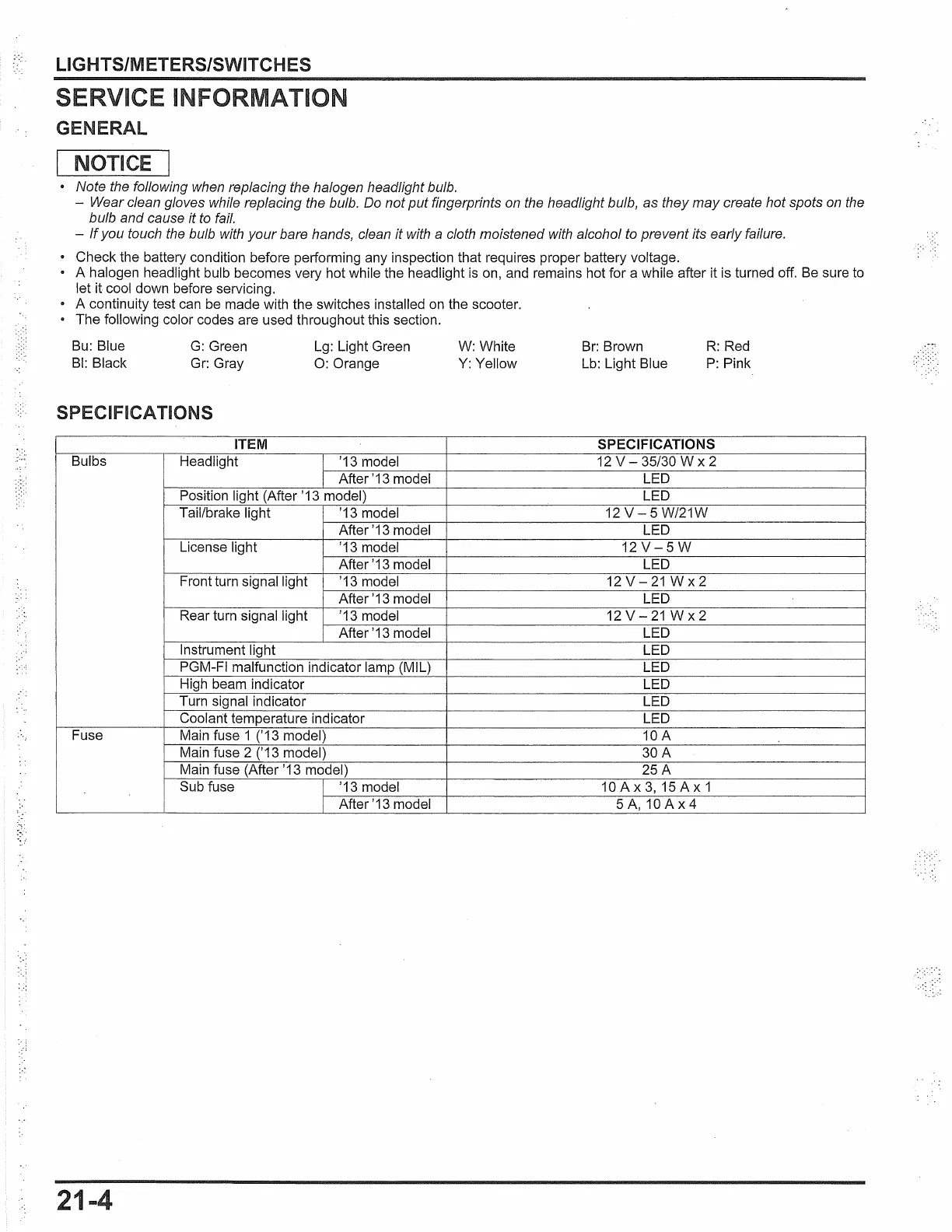

LIGHTS/METERS/SWITCHES
5 RVICE INFORMATION
GENERAL
NOTICE
• Note the following when replacing the halogen headlight bulb.
- Wear clean gloves while replacing the bulb. Do not
put
fingerprints
on
the headlight bulb, as they
may
create hot spots
on
the
bulb and cause it
to
fail.
-
If
you touch the bulb with
your
bare hands, clean
it
with a cloth moistened with alcohol to prevent its early failure.
• Check the battery condition before performing any inspection that requires proper battery voltage.
• A halogen headlight bulb becomes very hot while the headlight
is
on, and remains hot for a while after it is turned off.
Be
sure
to
let
it
cool down before servicing.
• A continuity test can be made with the switches installed
on
the scooter.
• The following color codes are used throughout this section.
Bu:
Blue
Bl:
Black
G:
Green
Gr: Gray
Lg: Light Green
O:
Orange
SPECIFICATIONS
ITEM
Bulbs
Headlight '13 model
After '13 model
Position light (After '13 model)
Tail/brake light
'13 model
After '13 model
License light '13 model
After '13 model
Front turn signal light '13 model
After '13 model
Rear turn signal light '13 model
After '13 model
Instrument light
PGM-FI malfunction indicator lamp (MIL)
High beam indicator
Turn signal indicator
Coolant temperature indicator
Fuse
Main fuse 1
('
13 model)
Main fuse 2 ('13 model)
Main fuse (After '13 model)
Sub fuse '13 model
After '13 model
21-4
W: White
Y:
Yellow
Br: Brown
Lb:
Light Blue
R:
Red
P:
Pink
SPECIFICATIONS
12
V - 35/30 W x 2
LED
LED
12
V-5
W/21W
LED
12
V-5
W
LED
12V-21Wx2
LED
12V-21Wx2
LED
LED
LED
LED
LED
LED
10 A
30A
25A
10
Ax
3,
15
Ax
1
5A,
10Ax4
