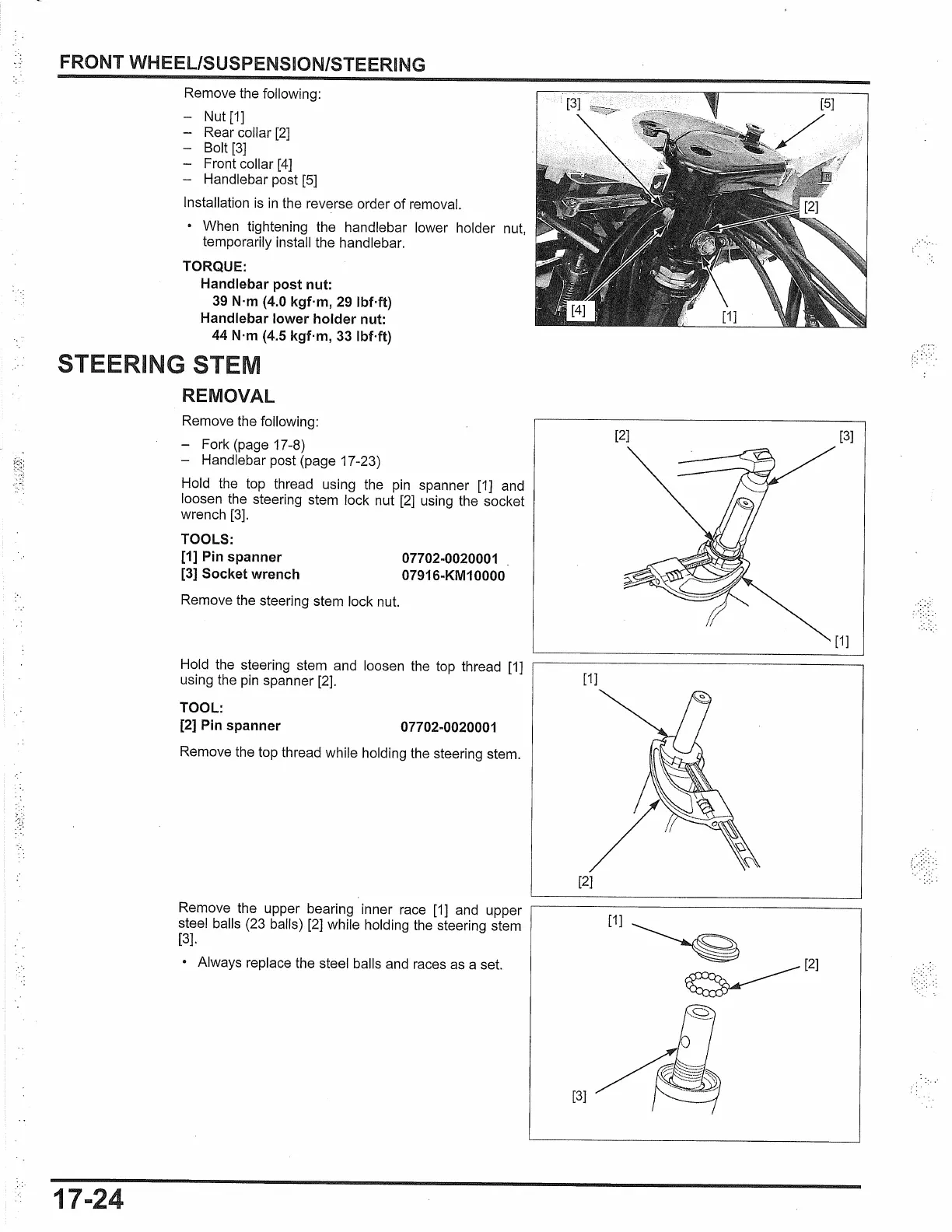

FRONT WHEEL/SUSPENSION/STEERING
Remove the following:
- Nut
[1]
- Rear collar
[2]
Bolt
[3]
- Front collar
[4]
- Handlebar post [5]
Installation
is
in
the reverse order of removal.
• When tightening the handlebar lower holder nut,
temporarily install the handlebar.
TORQUE:
Handlebar post nut:
39 N·m (4.0 kgf·m, 29
lbMt)
Handlebar lower holder nut:
44 N·m (4.5 kgf·m, 33
lbMt)
STEERING STEM
REMOVAL
17-24
Remove the following:
- Fork (page 17-8)
- Handlebar post (page 17-23)
Hold the top thread using the pin spanner [1] and
loosen the steering stem lock nut
[2]
using the socket
wrench
[3].
TOOLS:
[1] Pin spanner
[3] Socket wrench
Remove the steering stem lock nut.
07702-0020001
07916-KM10000
Hold the steering stem and loosen the top thread [1]
using the pin spanner [2].
TOOL:
[2] Pin spanner 07702-0020001
Remove the top thread while holding the steering stem.
Remove the upper bearing inner race
[1]
and upper
steel balls (23 balls) [2] while holding the steering stem
[3].
• Always replace the steel balls and races
as
a set.
[2]
[3]
[1]
[1]
[1]~~
~
[2]
~
[3]
