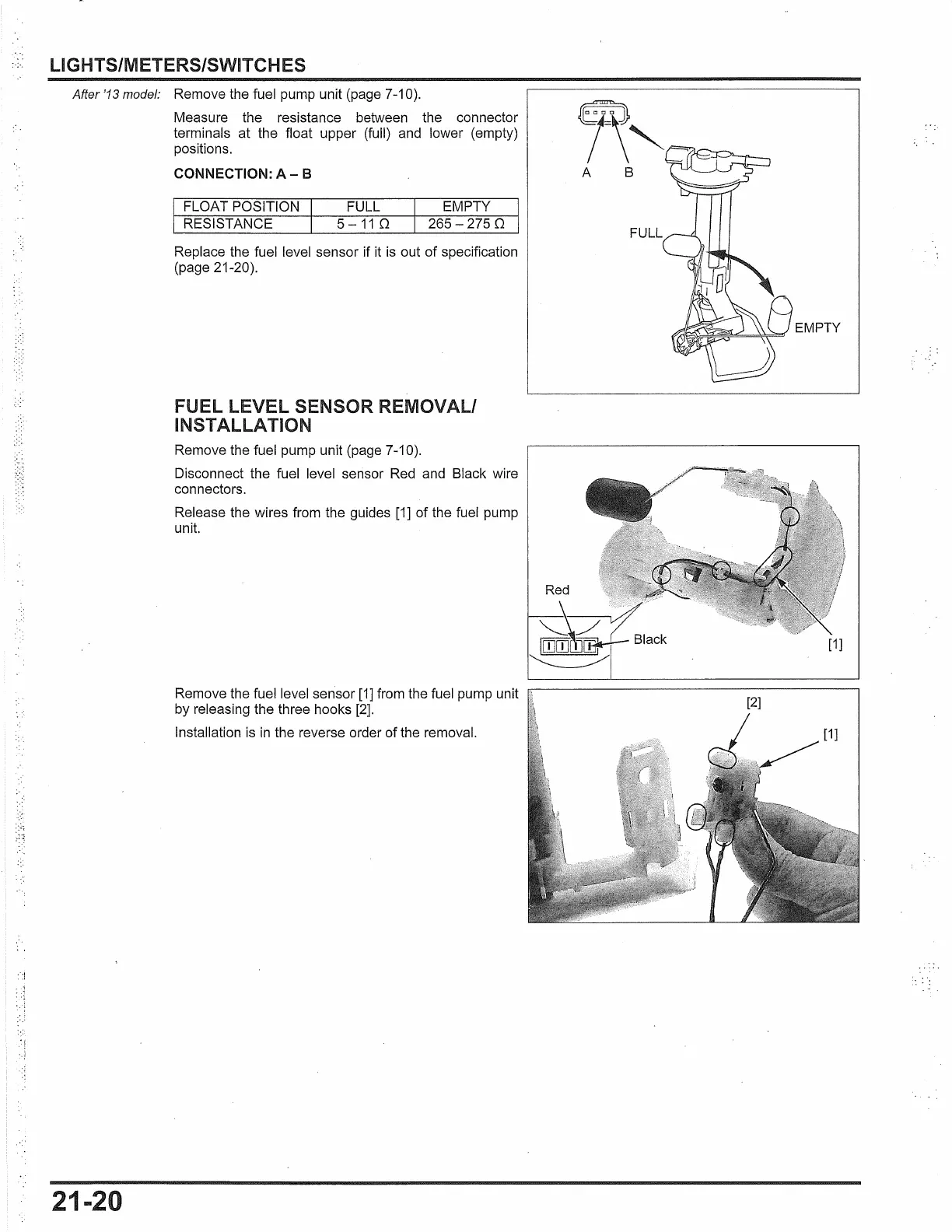

LIGHTS/METERS/SWITCHES
After '13 model: Remove the fuel pump unit (page 7-10).
21-20
Measure the resistance between the connector
terminals at the float upper (full) and lower (empty)
positions.
CONNECTION: A- B
FLOAT POSITION
FULL
EMPTY
RESISTANCE
5-11 n 265-275 n
Replace the fuel level sensor if it is out of specification
(page 21-20).
FUEL LEVEL SENSOR REMOVAL/
INSTALLATION
Remove the fuel pump unit (page 7-10).
Disconnect the fuel level sensor Red and Black wire
connectors.
Release the wires from the guides
[1] of the fuel pump
unit.
Remove the fuel level sensor
[1] from the fuel pump unit
by releasing the three hooks [2].
Installation is
in the reverse order of the removal.
Red
~~lack
~
[1]
[2]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
