Honda PCX150 2016 User Manual

·~
.
;.-·.,

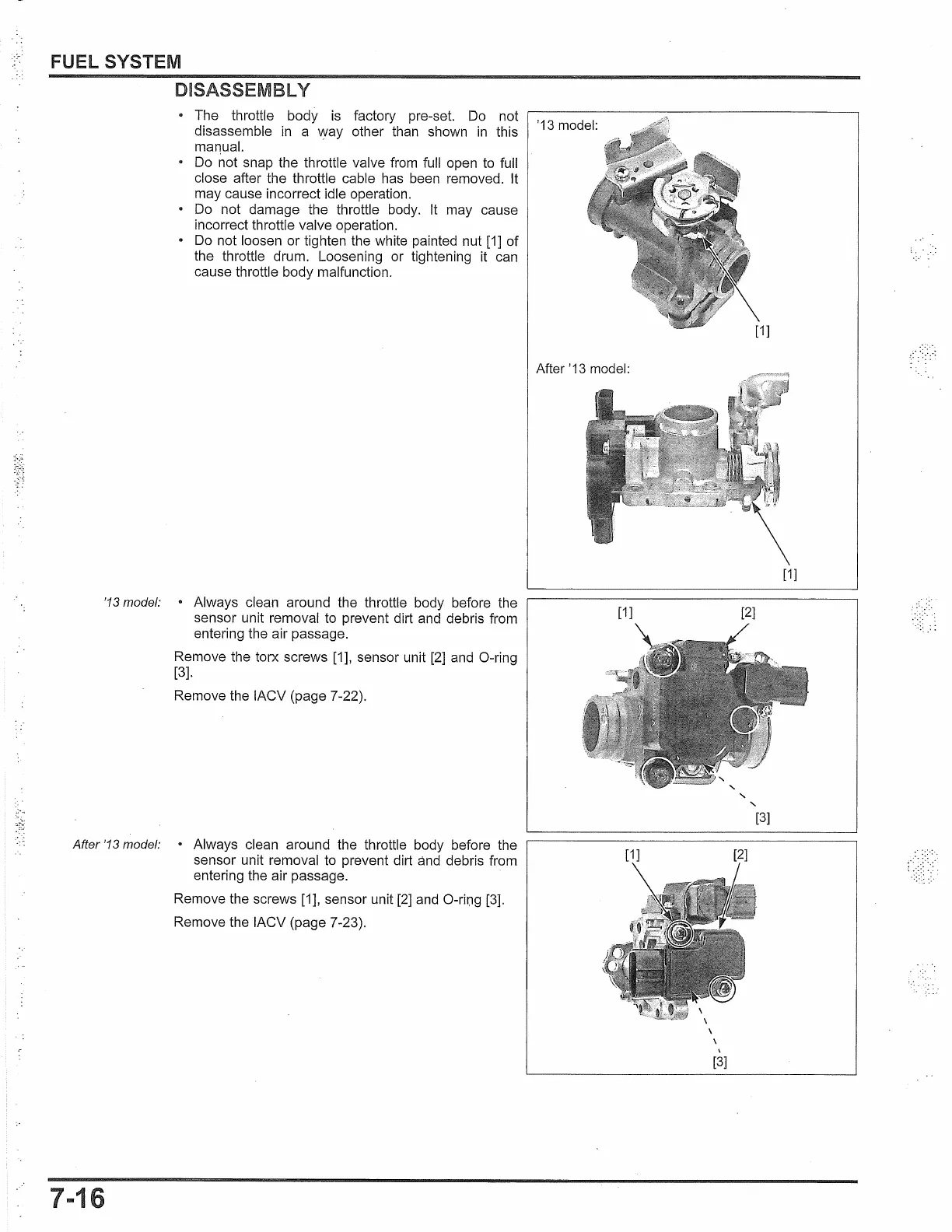

FUEL SYSTEM
DISASSEMBLY
The throttle body
is
factory pre-set.
Do
not
disassemble
in
a way other than shown
in
this
mariual. ·
•
Do
not snap the throttle valve from full open
to
full
close after the throttle cable has been removed. It
may cause incorrect idle operation.
•
Do
not damage the throttle body. It may cause
incorrect throttle valve operation.
•
Do
not loosen or tighten the white painted nut
[1]
of
the throttle drum. Loosening or tightening it can
cause throttle body malfunction.
'13 model:
Always clean around the throttle body before the
sensor unit removal to prevent dirt and debris from
entering the air passage.
Remove the torx screws [1], sensor unit
[2]
and 0-ring
[3].
Remove the IACV (page 7-22).
After '13 model: •
Always clean around the throttle body before the
7-1
sensor unit removal to prevent dirt
and
debris from
entering the air passage.
Remove the screws [1], sensor unit
[2]
and 0-rir:ig [3].
Remove the IACV (page 7-23).
'13 model:
After '13 model:
[1]
[1]
\
[3]
[2]
'
'
[2]
[1]
[3]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
