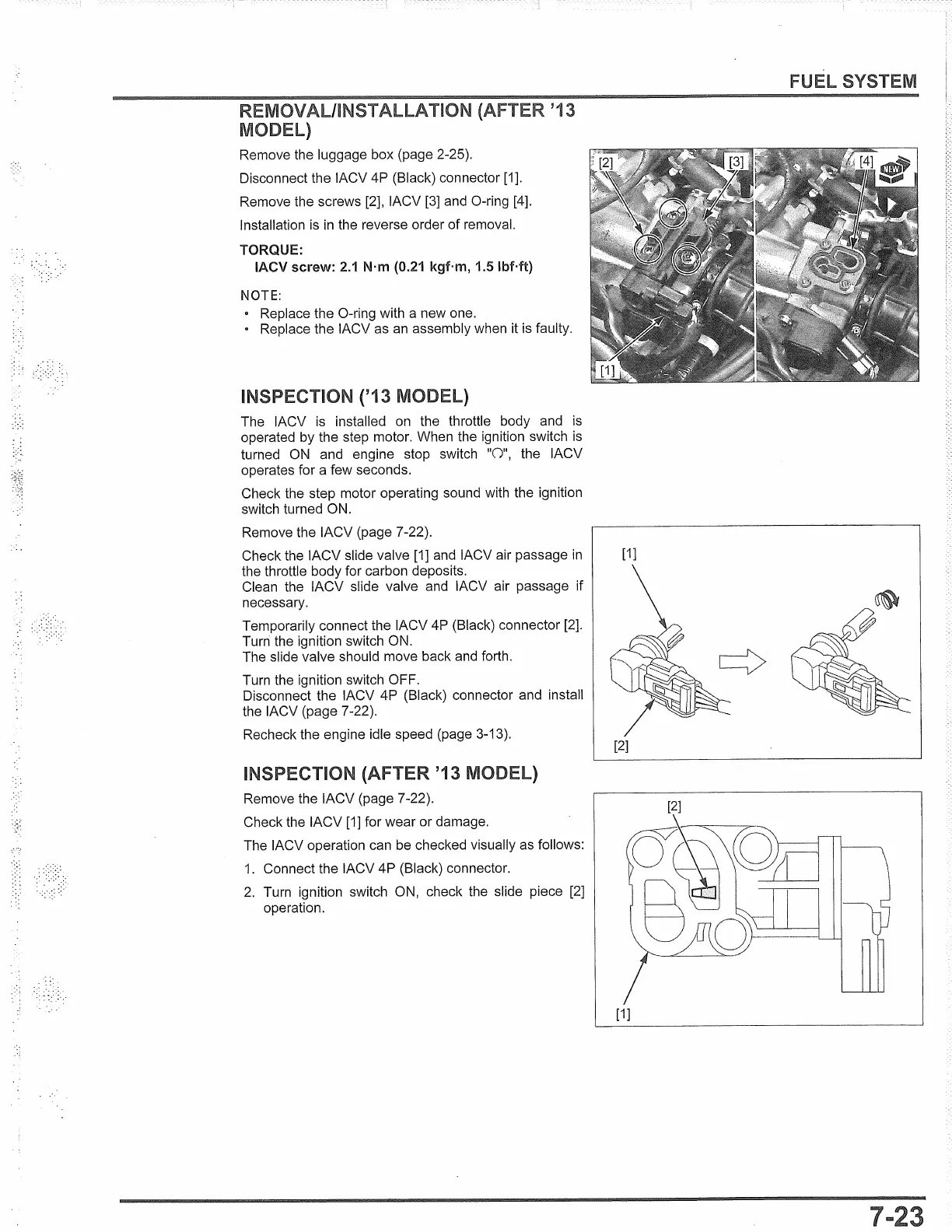

REMOVAL/INSTALLATION
MODEL)
Remove the luggage box (page 2-25).
Disconnect the IACV 4P (Black) connector
[1
].
Remove the screws [2], IACV
[3]
and 0-ring [4].
Installation
is
in
the reverse order of removal.
TORQUE:
IACV screw:
2.1
N·m (0.21 kgf·m, 1.5
lbMt)
NOTE:
Replace the 0-ring with a new one.
'13
• Replace the IACV
as
an
assembly when it
is
faulty.
INSPECTION ('13 MODEL)
The IACV
is
installed
on
the throttle body and
is
operated by the step motor. When the ignition switch
is
turned
ON
and engine stop switch
"0",
the IACV
operates for a few seconds.
Check the step motor operating sound with the ignition
switch turned ON.
Remove the IACV (page 7-22).
Check the IACV slide valve [1]
and
IACV air passage
in
the throttle body for carbon deposits.
Clean the IACV slide valve and IACV air passage if
necessary.
Temporarily connect the IACV
4P
(Black) connector [2].
Turn the ignition switch ON.
The slide valve should move back
and
forth.
Turn the ignition switch OFF.
Disconnect the IACV 4P (Black) connector and install
the IACV (page 7-22).
Recheck the engine idle speed (page 3-13).
INSPECTION (AFTER '13 MODEL)
Remove the IACV (page 7-22).
Check the IACV
[1]
for wear or damage.
The IACV operation can be checked visually as follows:
1.
Connect the IACV 4P (Black) connector.
2.
Turn ignition switch ON, check the slide piece
[2]
operation.
FUEL SYSTEM
[1]
[2]
[1]
To Next Page
