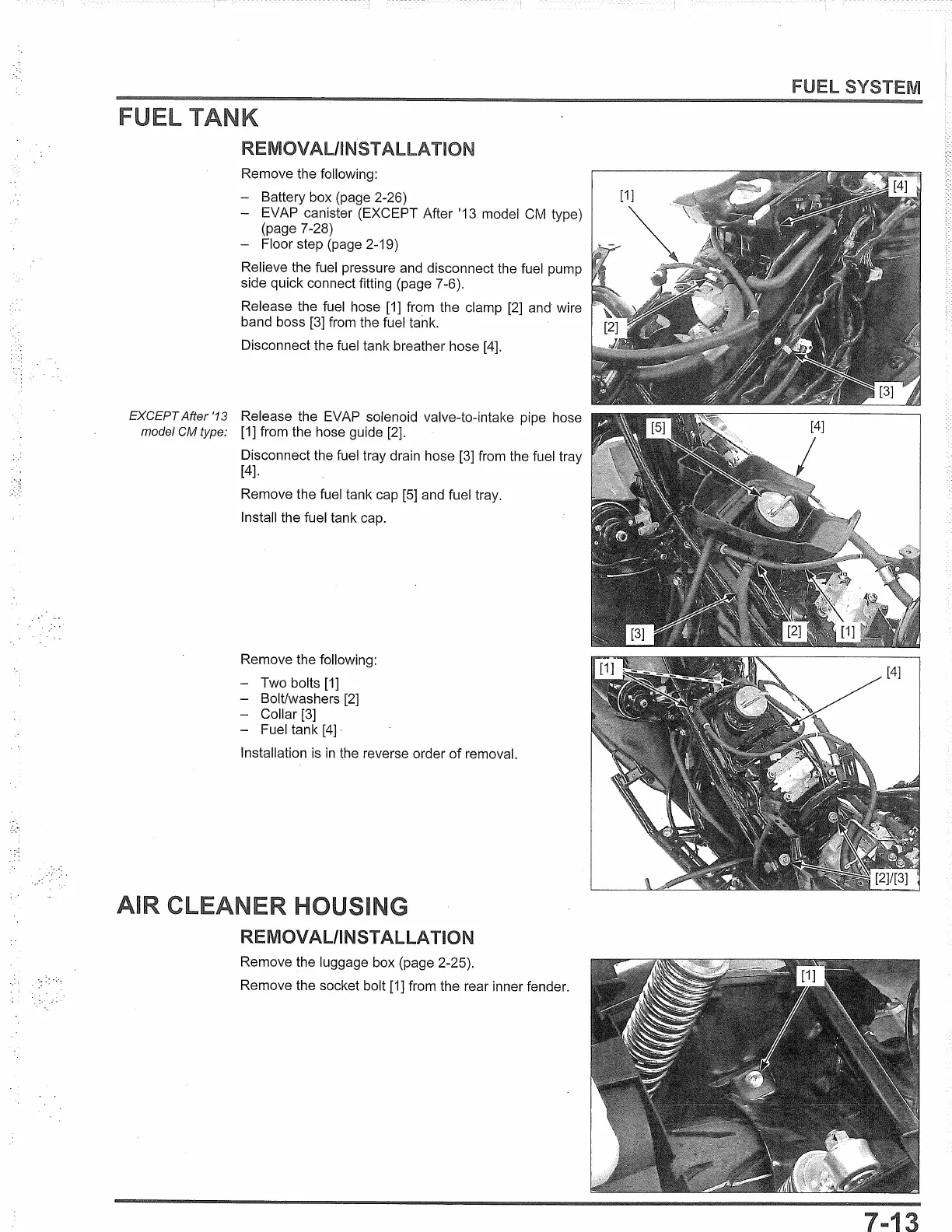

REMOVAL/INSTALLATION
Remove the following:
- Battery box (page 2-26)
- EVAP canister (EXCEPT After '13 model
CM
type)
(page 7-28)
- Floor step (page 2-19)
Relieve the fuel pressure and disconnect the fuel pump
side quick connect fitting (page 7-6).
Release the fuel hose
[1]
from the clamp
[2]
and wire
band boss [3] from the fuel tank.
Disconnect the fuel tank breather hose [4].
EXCEPT
After
'13
Release the EVAP solenoid valve-to-intake pipe hose
model
CM
type:
[1] from the hose guide [2].
Disconnect the fuel tray drain hose [3] from the fuel tray
[4].
Remove the fuel tank cap
[5]
and fuel tray.
Install the fuel tank cap.
Remove the following:
- Two bolts
[1]
- Bolt/washers
[2]
- Collar [3]
- Fuel tank
[4]
·
Installation
is
in
the reverse order
of
removal.
IN
REMOVAL/INSTALLATION
Remove the luggage box (page 2-25).
Remove the socket bolt
[1]
from the rear inner fender.
