Honda PCX150 2016 User Manual

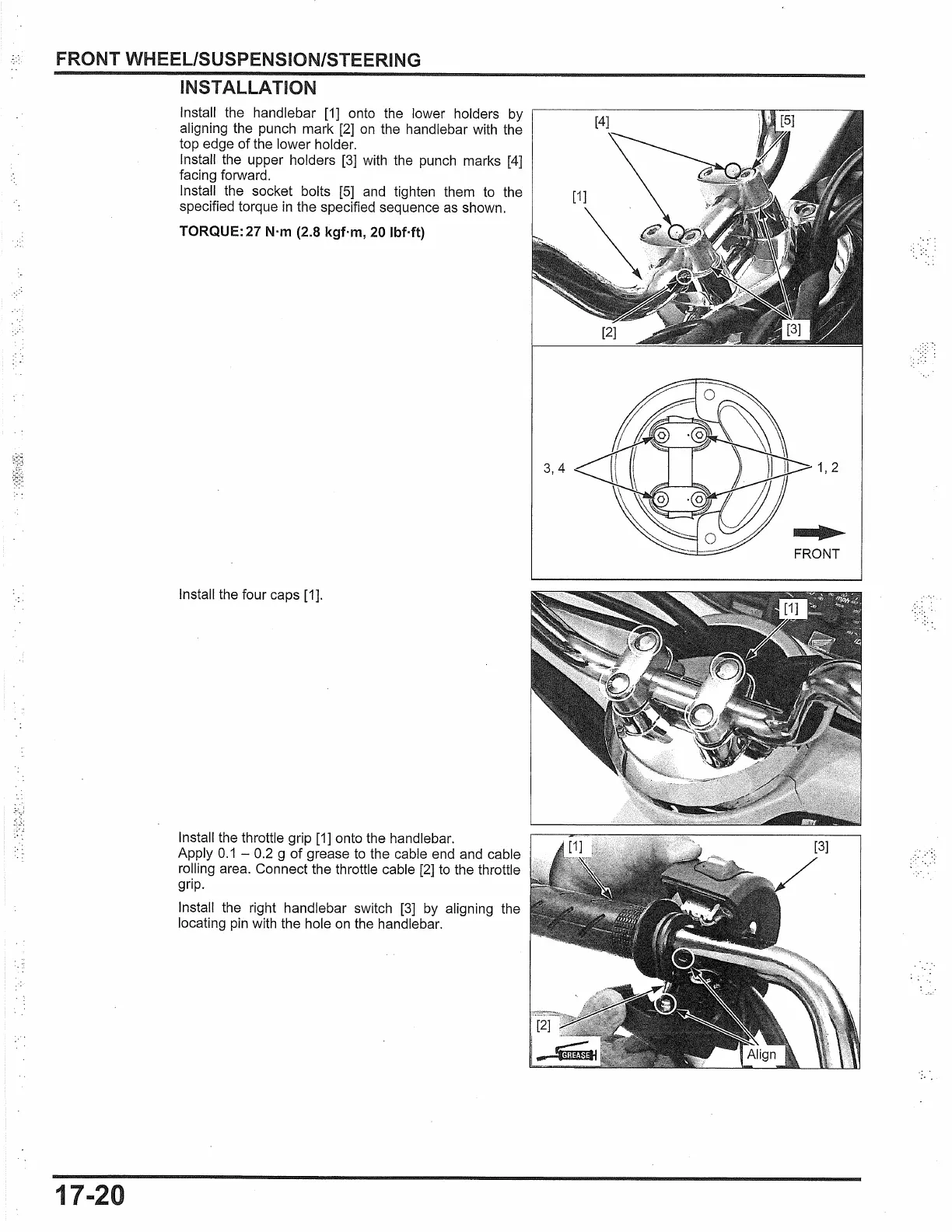

FRONT WHEEL/SUSPENSION/STEERING
17-20
INSTALLATION
Install the handlebar
[1]
onto the lower holders by
aligning the punch mark
[2]
on
the handlebar with the
top edge of the lower holder.
Install the upper holders
[3]
with the punch marks
[4]
facing forward.
Install the socket bolts
[5]
and
tighten them
to
the
specified torque
in
the specified sequence
as
shown.
TORQUE: 27 N·m (2.8 kgf·m, 20 lbMt)
Install the four caps [1].
Install the throttle grip
[1]
onto the handlebar.
Apply
0.1
- 0.2 g of grease
to
the cable end and cable
rolling area. Connect the throttle cable
[2]
to
the throttle
grip.
Install the right handlebar switch
[3]
by
aligning the
locating
pin
with the hole
on
the handlebar.
3,4

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
