PGM-FI SYSTEM
4
..
54

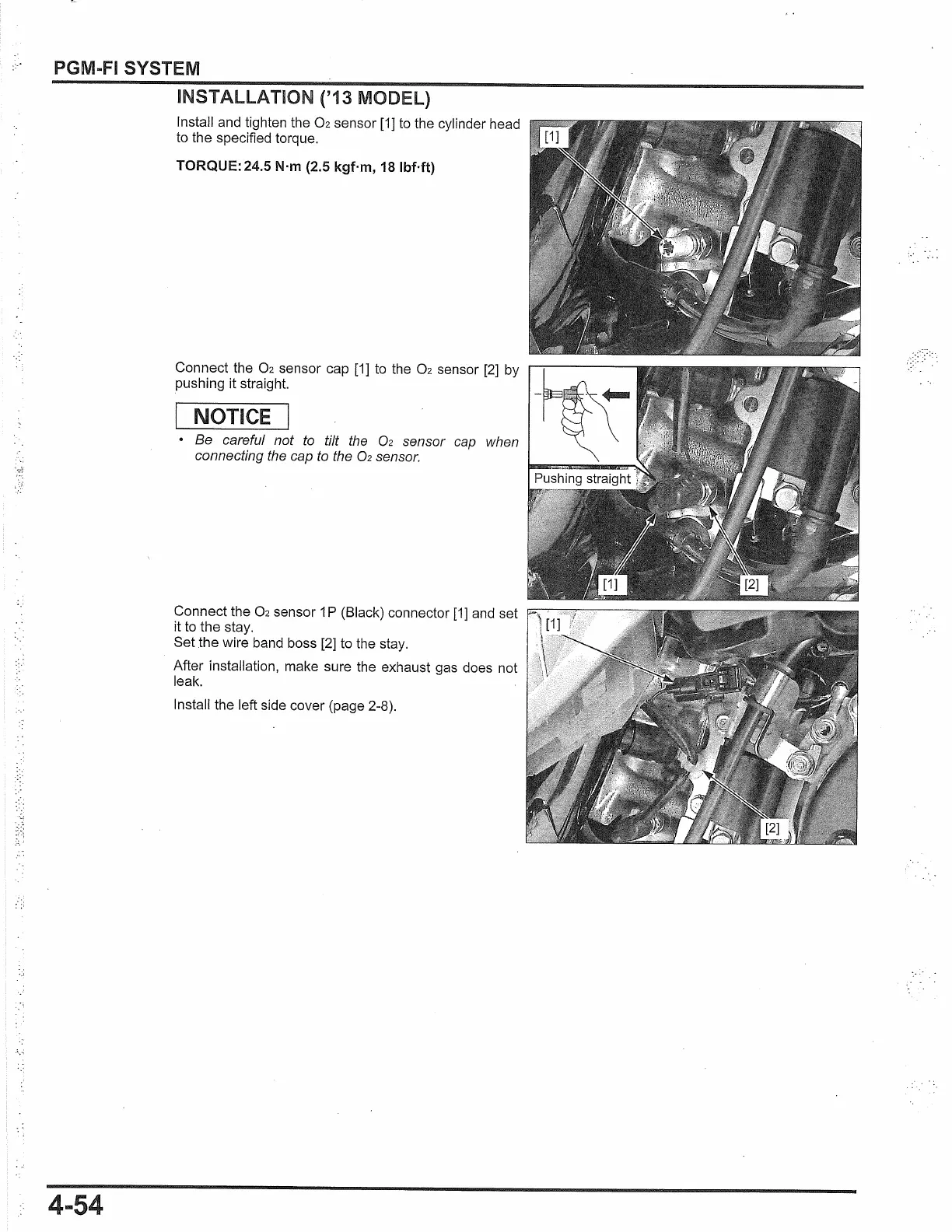

INSTALLATION ('13 MODEL)
Install and tighten the
02
sensor
[1]
to
the cylinder head
to the specified torque.
TORQUE:24.5 N·m (2.5 kgf·m,
18
lbMt)
Connect the
02
sensor cap
[1]
to the
02
sensor
[2]
by
pushing it straight.
l
NOTICE
I
• Be careful not
to
tilt
the
02
sensor
cap
when
connecting
the
cap
to
the
02
sensor.
Connect the
02
sensor 1 P (Black) connector
[1]
and set
it
to
the stay.
Set the wire band boss [2] to the stay.
After installation, make sure the exhaust gas does not
leak.
Install the left side cover (page 2-8).
