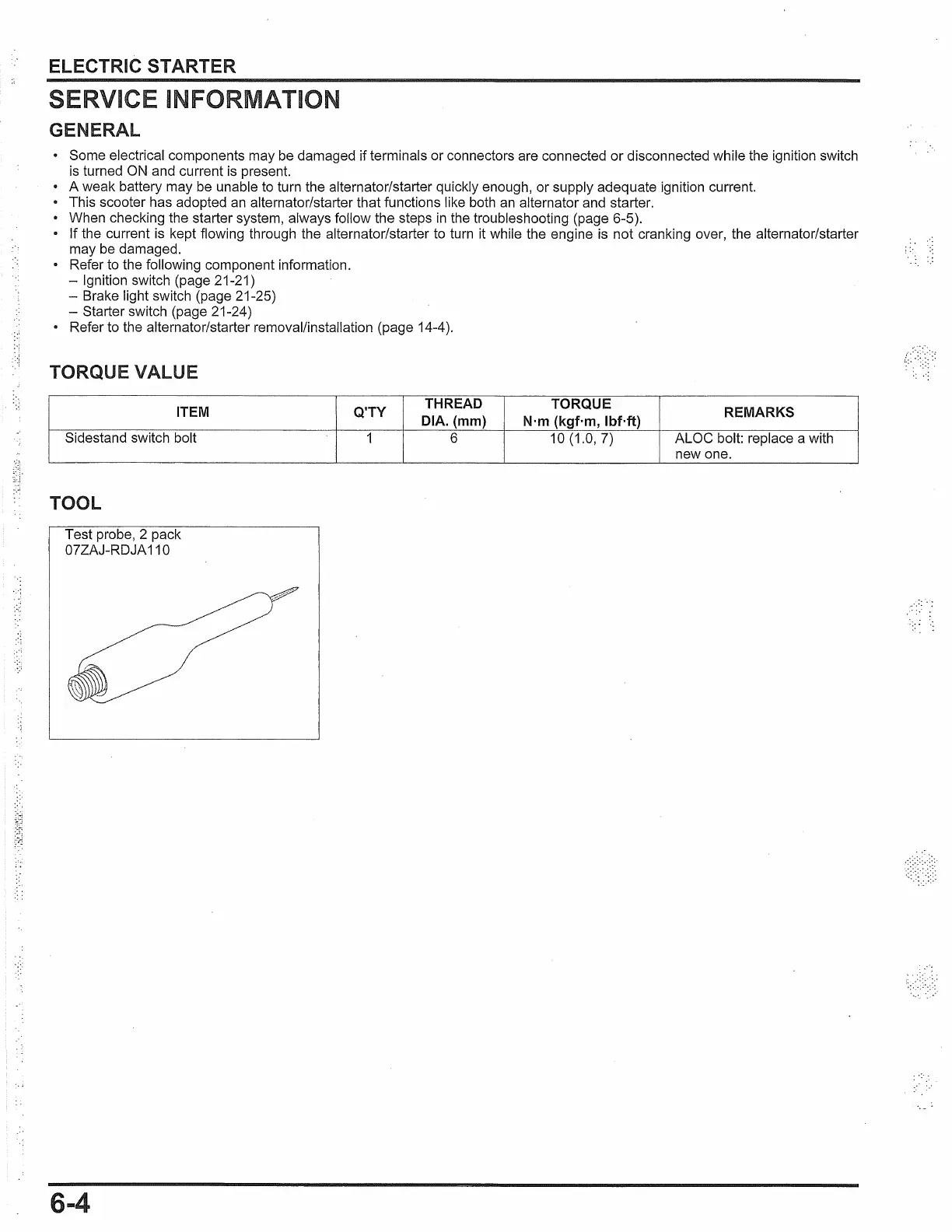

ELECTRIC STARTER
S RVICE INFOR ATION
GENERAL
• Some electrical components may be damaged if terminals or connectors are connected or disconnected while the ignition switch
is turned ON and current is present.
• A weak battery may be unable to turn the alternator/starter quickly enough, or supply adequate ignition current.
• This scooter has adopted
an alternator/starter that functions like both an alternator and starter.
• When checking the starter system, always follow the steps
in the troubleshooting (page 6-5).
• If the current
is kept flowing through the alternator/starter to turn it while the engine is not cranking over, the alternator/starter
may be damaged.
Refer to the following component information.
- Ignition switch (page 21-21)
- Brake light switch (page 21-25)
- Starter switch (page 21-24)
• Refer to the alternator/starter removal/installation (page 14-4
).
TORQUE VALUE
ITEM
Sidestand switch bolt
TOOL
Test probe, 2 pack
O?ZAJ-RDJA 110
6-4
Q'TY
THREAD
DIA. (mm)
1
6
TORQUE
REMARKS
N·m (kgf·m, lbf·ft)
10(1.0,7)
ALOC bolt: replace a with
new one.

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
