Honda PCX150 2016 User Manual

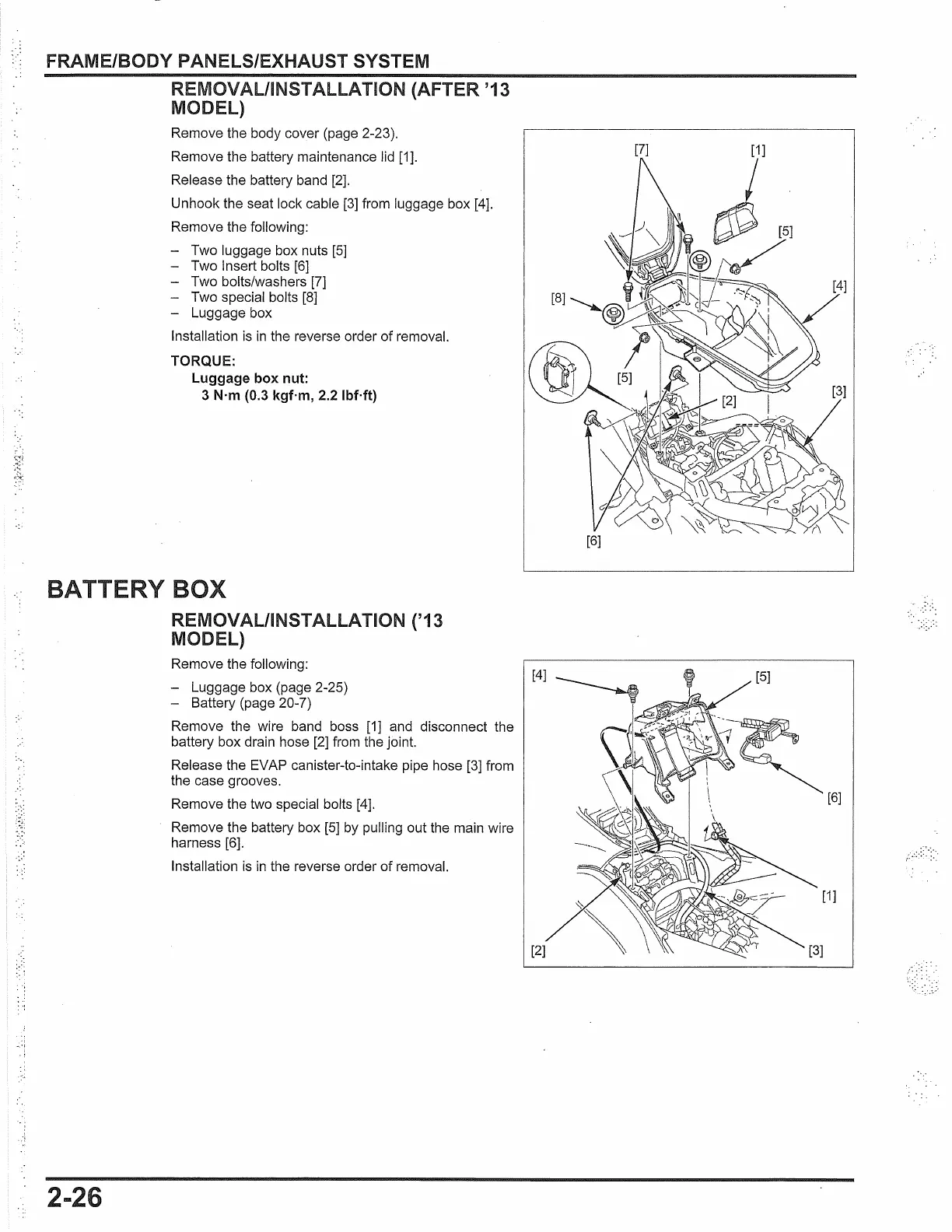

FRAME/BODY PANELS/EXHAUST SYSTEM
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the body cover (page 2-23).
Remove the battery maintenance lid [1].
Release the battery band [2].
Unhook the seat lock cable
[3]
from luggage box [4].
Remove the following:
- Two luggage box nuts
[5]
- Two Insert bolts
[6]
- Two bolts/washers [7]
- Two special bolts
[8]
- Luggage box
Installation
is
in
the reverse order
of
removal.
TORQUE:
Luggage box nut:
3 N·m (0.3 kgf·m, 2.2 lbf·ft)
BATTERY BOX
REMOVAL/INSTALLATION ('13
MODEL)
2-26
Remove the following:
- Luggage box (page 2-25)
- Battery (page 20-7)
Remove the wire band boss
[1]
and disconnect the
battery box drain hose [2] from the joint.
Release the EVAP canister-to-intake pipe hose [3] from
the case grooves.
Remove the two special bolts [4].
Remove the battery box
[5]
by pulling out the main wire
harness [6].
Installation
is
in
the reverse order
of
removal.
[6]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
