Honda PCX150 2016 User Manual

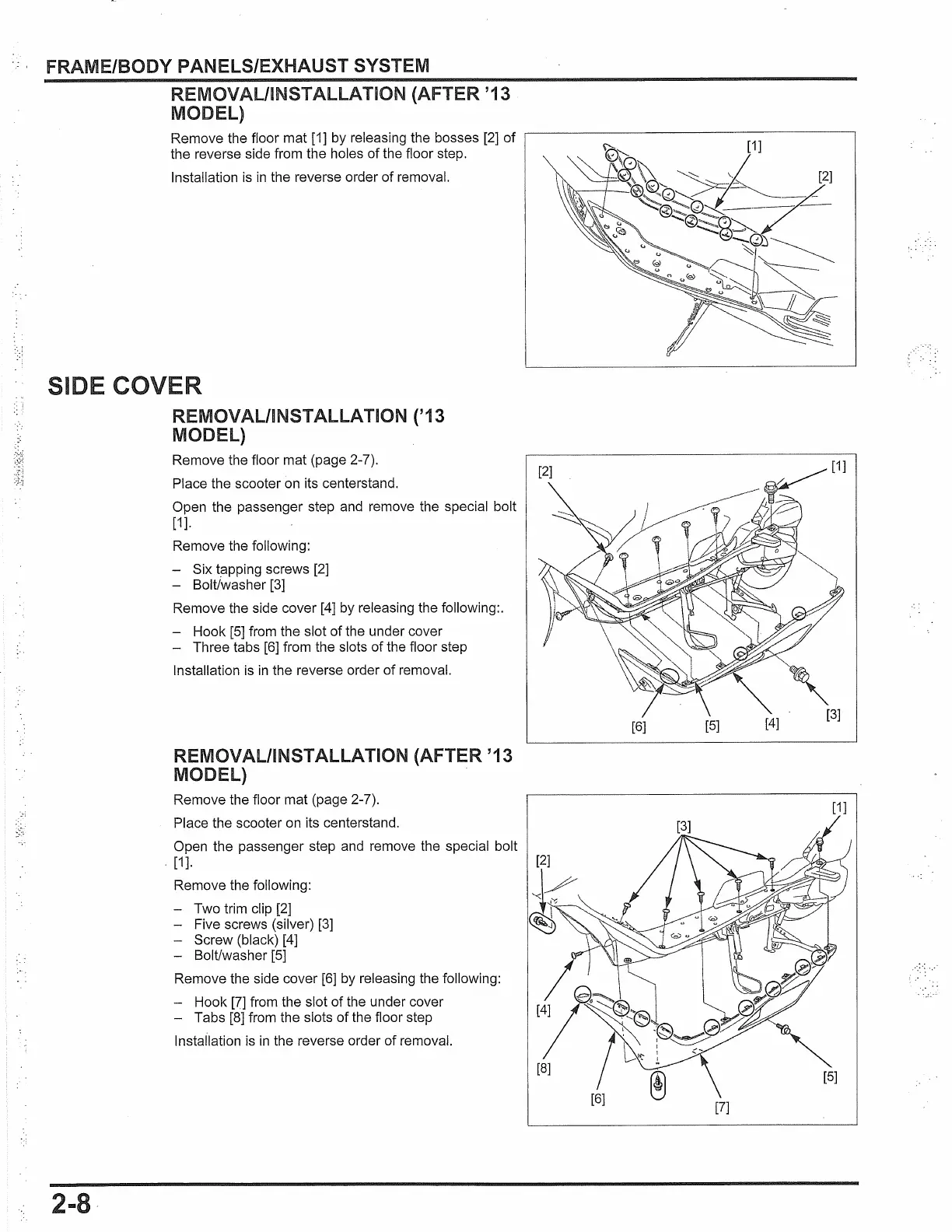

FRAMBBODYPANEL~EXHAUSTSYSTEM
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the floor mat [1] by releasing the bosses [2]
of
the reverse side from the holes of the floor step.
Installation is
in
the reverse order
of
removal.
SIDE COVER
2-8
REMOVAL/INSTALLATION ('13
MODEL)
Remove the floor mat (page 2-7).
Place the scooter on its centerstand.
Open the passenger step and remove the special bolt
[1
].
Remove the following:
- Six tapping screws [2]
- Boltiwasher [3]
Remove the side cover [4] by releasing the following:.
- Hook [5] from the slot
of
the under cover
- Three tabs [6] from the slots
of
the floor step
Installation
is
in
the reverse order
of
removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL) .
Remove the floor mat (page 2-7).
Place the scooter on its centerstand.
Open the passenger step and remove the special bolt
. [1].
Remove the following:
Two trim clip [2]
- Five screws (silver) [3]
- Screw (black) [4]
- Bolt/washer [5]
Remove the side cover [6] by releasing the following:
- Hook [7] from the slot
of
the under cover
- Tabs [8] from the slots of the floor step
Installation is
in
the reverse order of removal.
[6]
[5]
[1]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
