MAINTENANCE
3-18

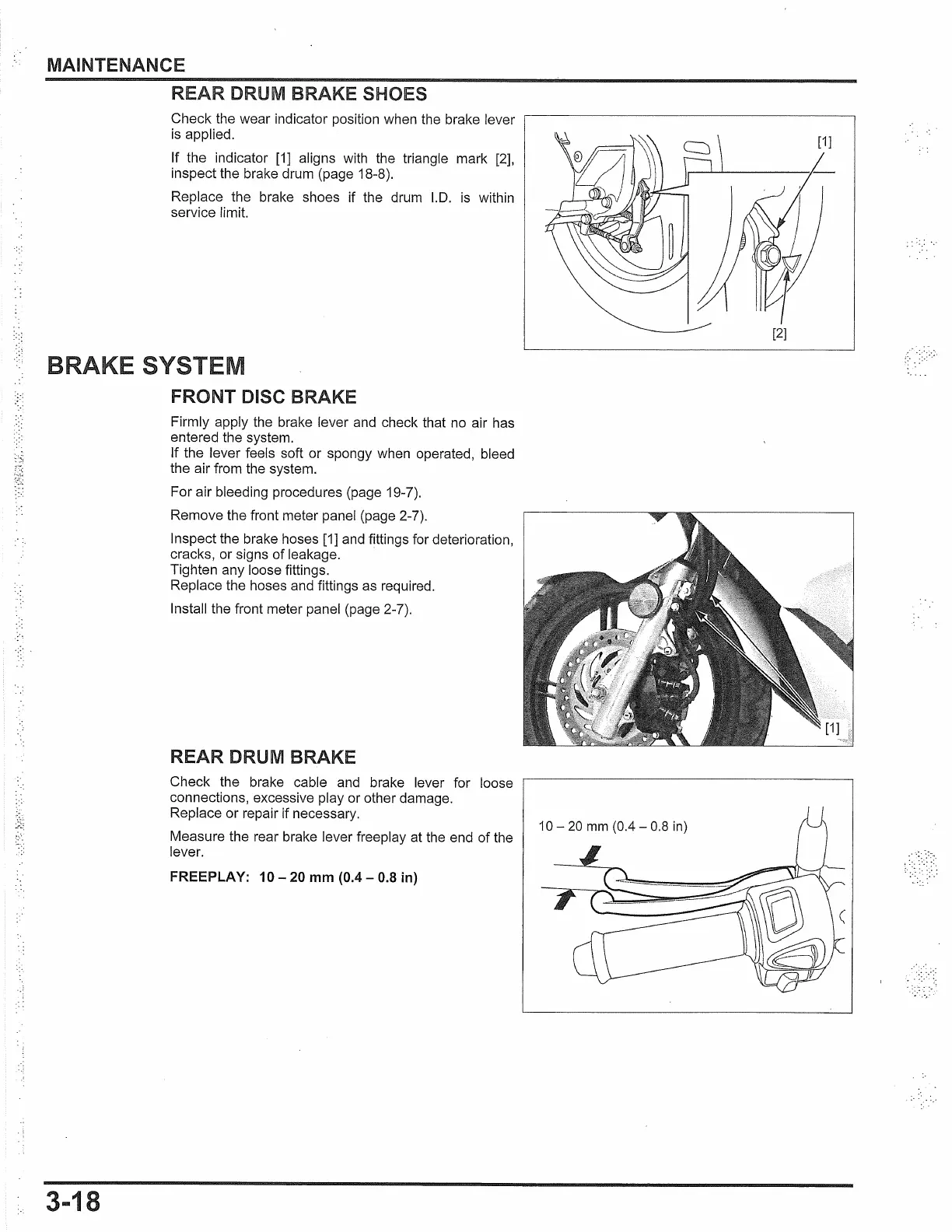

REAR DRUM BRAKE SHOES
Check the wear indicator position when the brake lever
is applied.
If the indicator
[1]
aligns with the triangle mark [2],
inspect the brake drum (page 18-8).
Replace the brake shoes if the drum
1.0.
is within
service limit.
SYSTE
FRONT DISC BRAKE
Firmly apply the brake lever and check that no air has
entered the system.
If the lever feels soft or spongy when operated, bleed
the air from the system.
For air bleeding procedures (page 19-7).
Remove the front meter panel (page
2-7).
Inspect the brake hoses [1] and fittings for deterioration,
cracks, or signs of leakage.
Tighten any loose fittings.
Replace the hoses and fittings as required.
Install the front meter panel (page
2-7).
REAR DRUM BRAKE
Check the brake cable and brake lever for loose
connections, excessive play or other damage.
Replace or repair if necessary.
Measure the rear brake lever freeplay at the end
of
the
lever.
FREEPLA
Y:
10 - 20 mm (0.4 - 0.8 in)
[2]
10-
20
mm
(0.4-
0.8
in)
