Honda PCX150 2016 User Manual

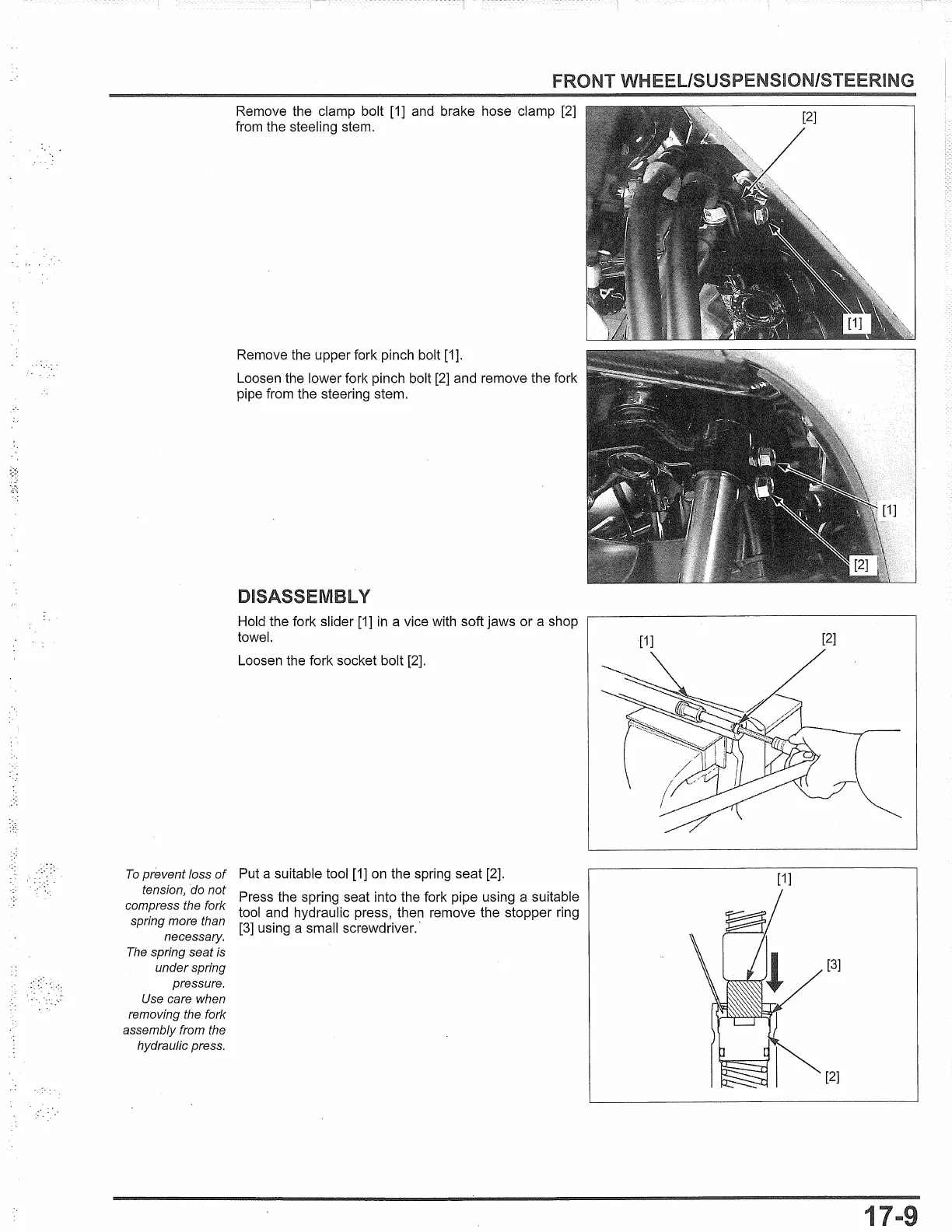

FRONT WHEEL/SUSPENSION/STEERING
Remove the clamp bolt
[1]
and
brake hose clamp
[2]
from the steeling stem.
Remove the upper fork pinch bolt [1].
Loosen the lower fork pinch bolt
[2]
and remove the fork
pipe from the steering stem.
DISASSEMBLY
Hold the fork slider
[1]
in
a vice with soft jaws or a shop
towel.
Loosen the fork socket bolt [2].
To
prevent loss
of
Put a suitable tool
[1]
on
the spring seat [2].
tension, do not
Press the spring seat into the fork pipe using a suitable
compress the fork
tool and hydraulic press, then remove the stopper ring
spring more than
[3]
using a small screwdriver.·
necessary.
The
spring seat is
under spring
pressure.
Use care when
removing the fork
assembly from the
hydraulic press.
[1]
[2]
[1]
[3]
[2]
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
