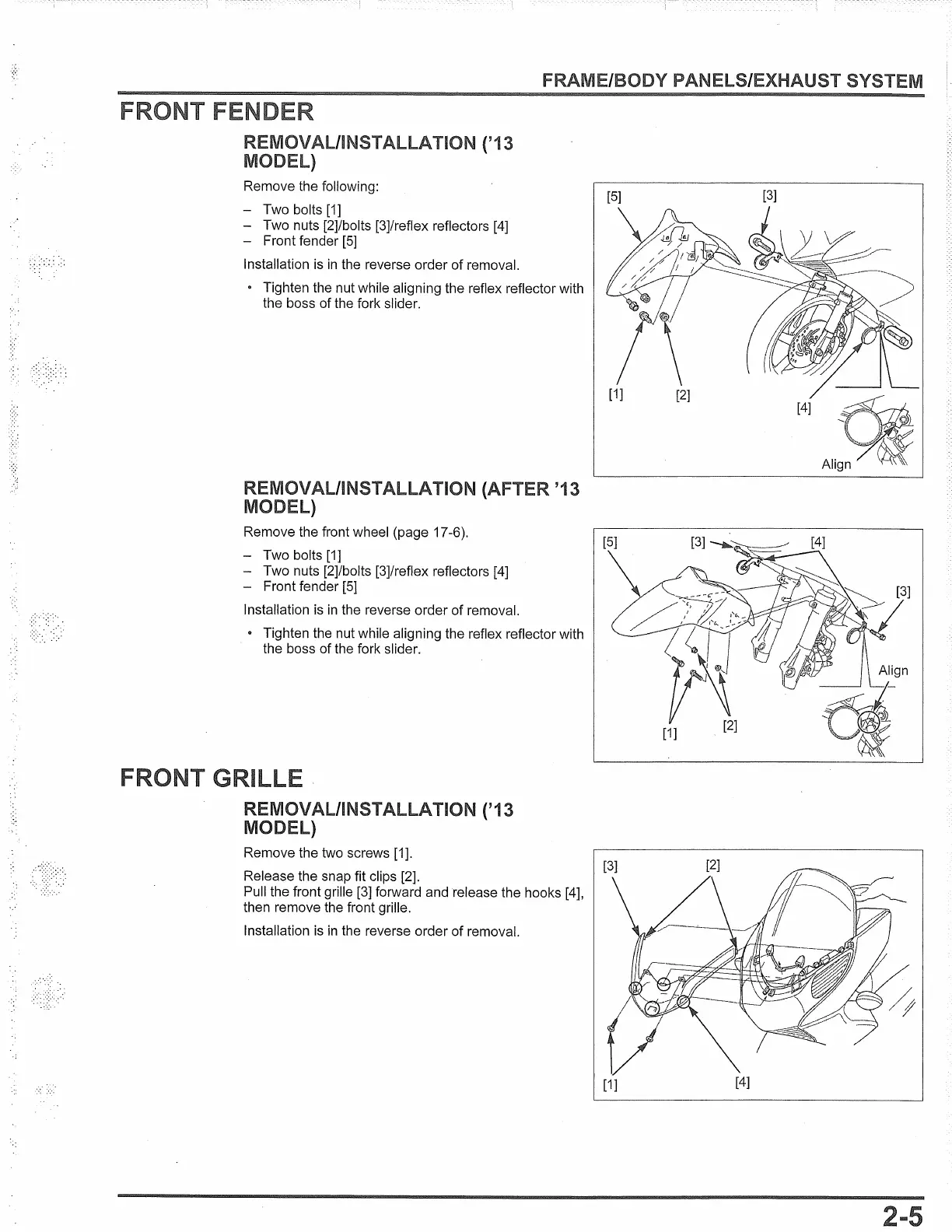

FRAME/BODY PANELS/EXHAUST
REMOVAL/INSTALLATION ('13
MODEL)
Remove the following:
- Two bolts [1]
- Two nuts [2]/bolts [3]/reflex reflectors [4]
- Front fender
[5]
Installation
is
in
the reverse order
of
removal.
• Tighten the nut while aligning the reflex reflector with
the boss of the fork slider.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the front wheel (page 17-6).
- Two bolts [1]
- Two nuts [2]/bolts [3]/reflex reflectors [4]
- Front fender [5]
Installation
is
in
the reverse order
of
removal.
• Tighten the nut while aligning the reflex reflector with
the boss of the fork slider.
REMOVAL/INSTALLATION ('13
MODEL)
Remove the two screws [1].
Release the snap fit clips [2].
Pull the front grille [3] forward and release the hooks [4],
then remove the front grille.
Installation is
in
the reverse order
of
removal.
[5]
[1]
[2]
[1]
[4]
