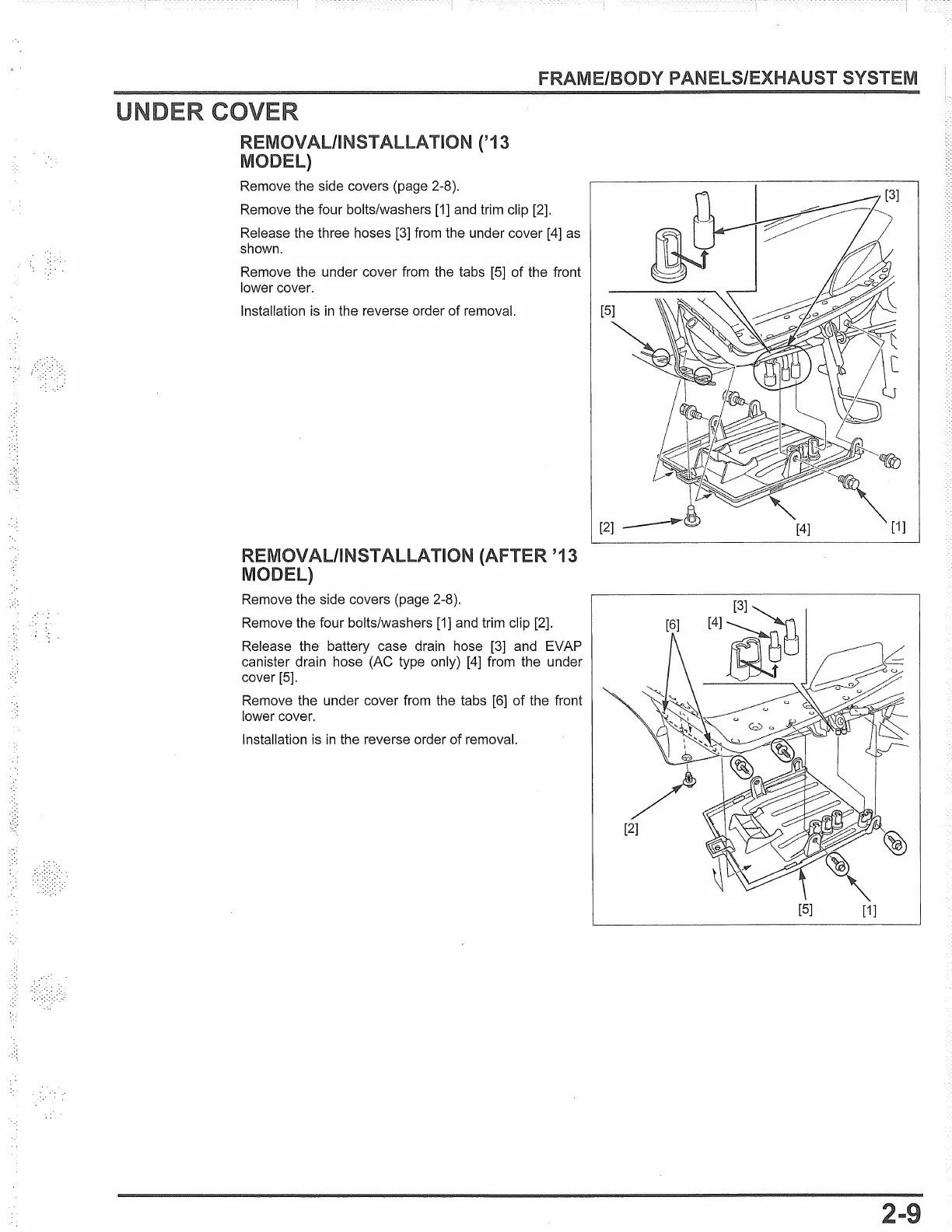

FRAME/BODY PANELS/EXHAUST
REMOVAL/INSTALLATION ('13
MODEL)
Remove the side covers (page 2-8).
Remove the four bolts/washers
[1]
and
trim clip [2].
Release the three hoses
[3]
from the under cover
[4]
as
shown.
Remove the under cover from the tabs [5] of the front
lower cover.
Installation
is
in
the reverse order of removal.
REMOVAL/INSTALLATION '13
MODEL)
Remove the side covers (page 2-8).
Remove the four bolts/washers
[1]
and
trim clip [2].
[6]
Release the battery case drain hose [3] and EVAP
canister drain hose (AC type only)
[4]
from the under
cover [5].
Remove the under cover from the tabs
[6]
of
the front
lower cover.
Installation
is
in
the reverse order of removal.
[5] [1]
