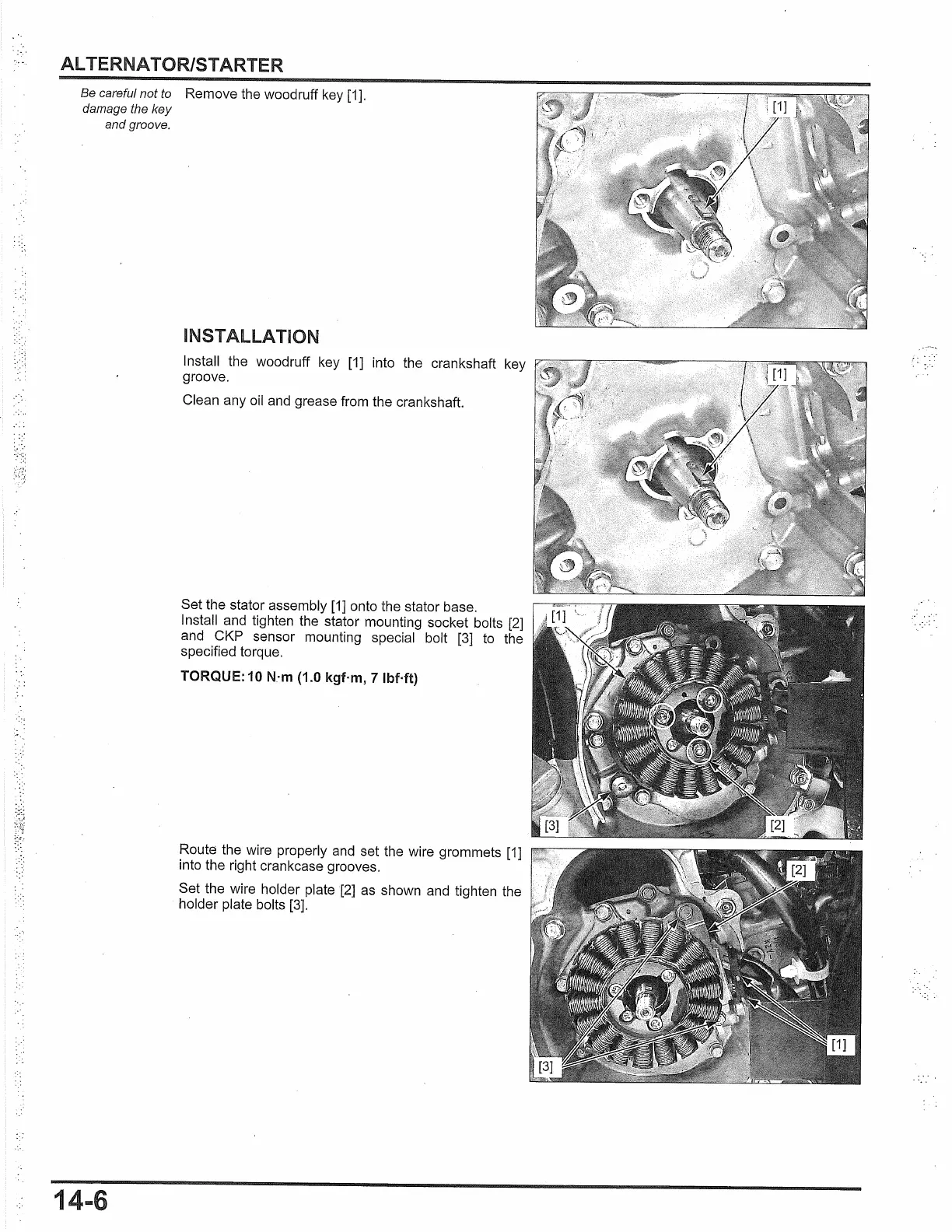

AL
TERNA TOR/STARTER
Be careful
not
to
Remove the woodruff key
[1].
damage the key
and groove.
14-6
INSTALLATION
Install the woodruff key
[1]
into the crankshaft key
groove.
Clean any oil
and
grease from the crankshaft.
Set the stator assembly
[1]
onto the stator base.
Install and tighten the stator mounting socket bolts
[2]
and CKP sensor mounting special bolt [3]
to
the
specified torque.
TORQUE: 10
N.·m
(1.0
kgf·m,
7 lbMt)
Route the wire properly
and
set the wire grommets
[1]
into the right crankcase grooves.
Set the wire holder plate
[2]
as
shown
and
tighten the
holder plate bolts
[3].

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
