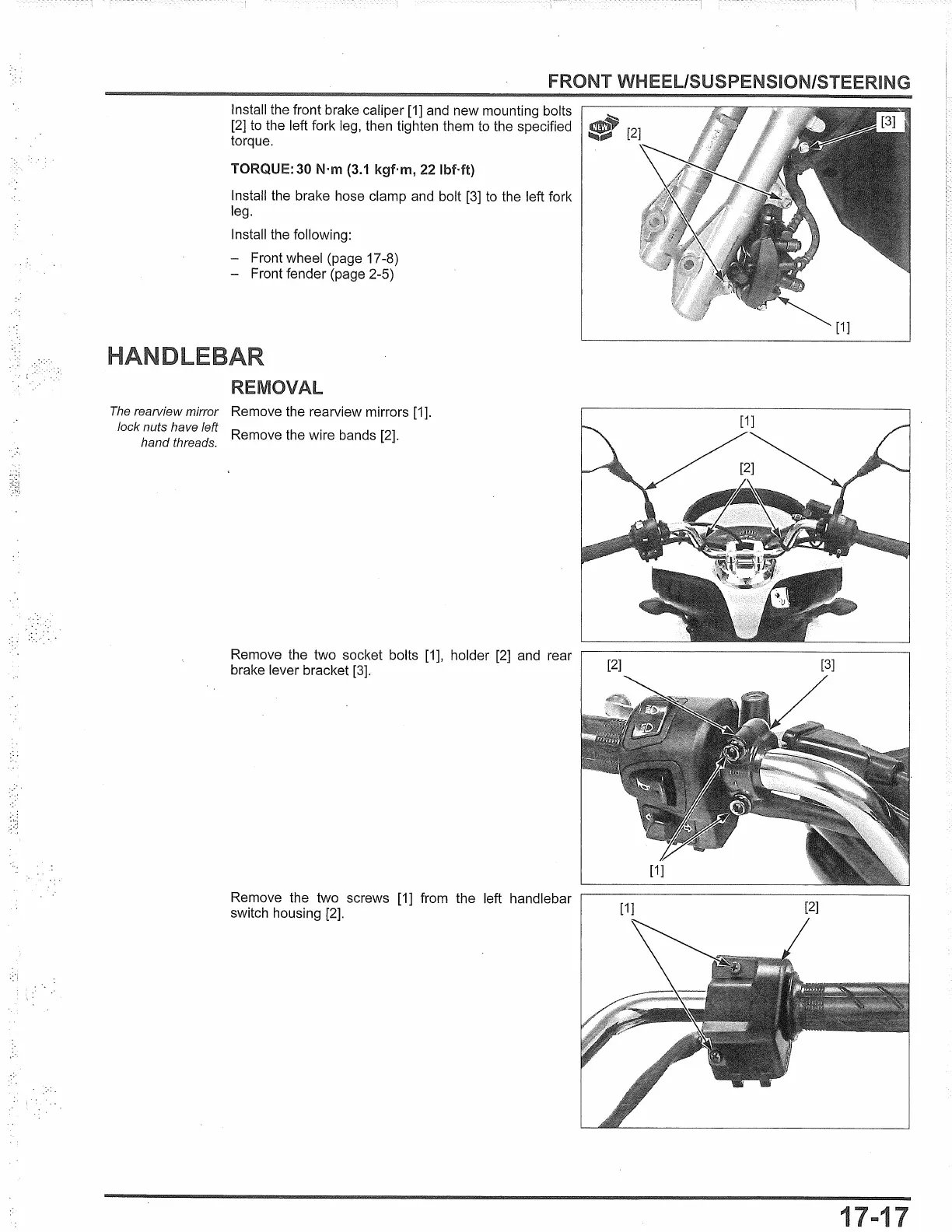

FRONT WHEEL/SUSPENSION/STEERING
Install the front brake caliper
[1]
and new mounting bolts
[2]
to
the left fork leg, then tighten them
to
the specified
torque.
TORQUE:30 N·m
(3.1
kgf·m, 22 lbMt)
Install the brake hose clamp and bolt
[3]
to
the left fork
leg.
Install the following:
- Front wheel (page 17-8)
- Front fender (page 2-5)
REMOVAL
The
rearview mirror
Remove the rearview mirrors [1].
lock nuts have left
hand
threads.
Remove the wire bands [2].
Remove the two socket bolts [1], holder
[2]
and rear
brake lever bracket [3].
Remove the two screws [1] from the left handlebar
switch housing [2].
[2]
[3]
[1]
[2]
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
