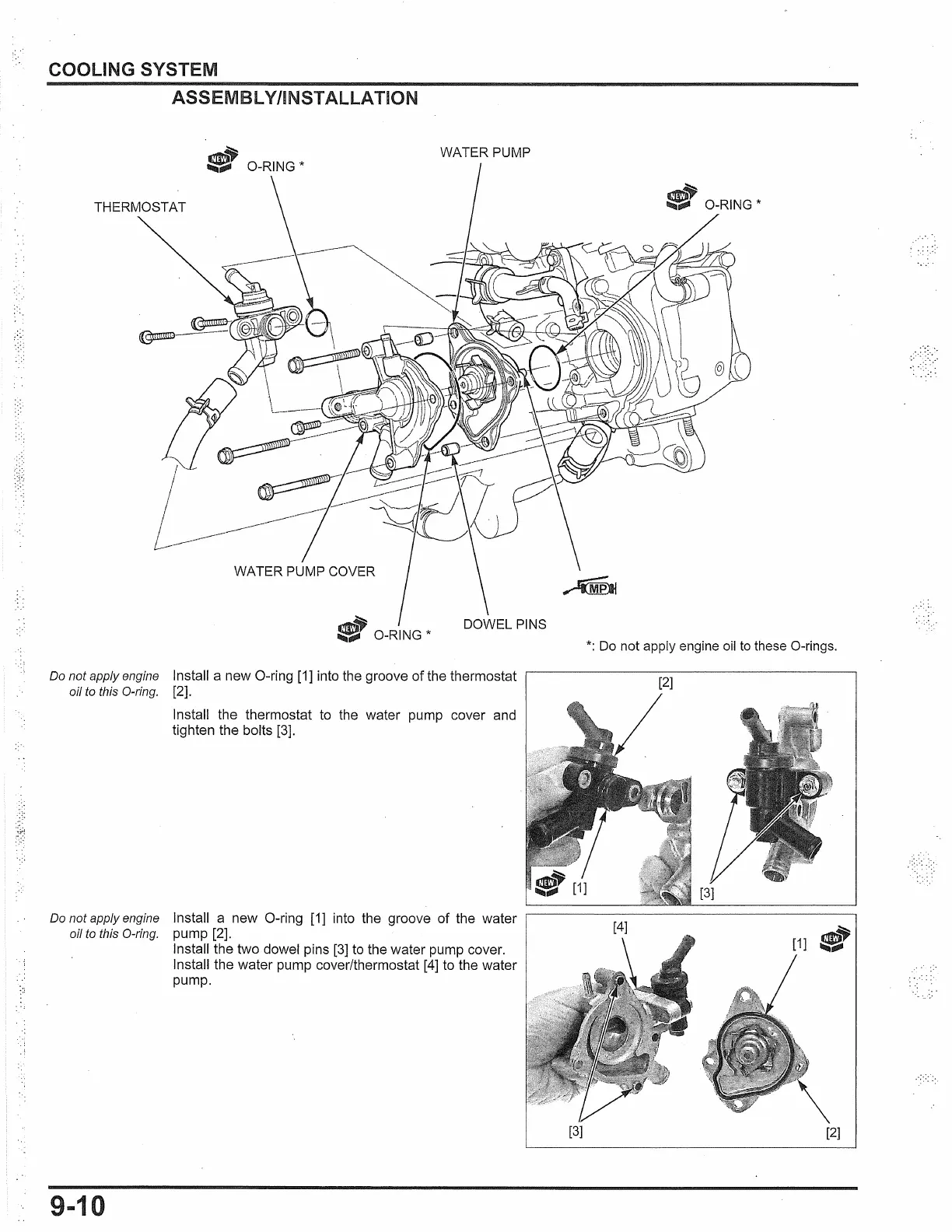

COOLING SYSTEM
ASSEMBLY/INSTALLATION
~
S
0-RING*
WATER
PUMP
WATER
PUMP COVER
~
$J.
0-RING
*
DOWEL
PINS
Do not apply engine
Install a new 0-ring [1] into the groove
of
the thermostat
oil to this 0-ring.
[2].
Install the thermostat to the water pump cover and
tighten the bolts [3].
Do not apply engine
Install a new 0-ring [1] into the groove of the water
oil to this 0-ring.
pump [2].
9-10
Install the two dowel pins
[3]
to
the water pump cover.
Install the water pump cover/thermostat
[4]
to the water
pump.
~
e
0-RING*
*:
Do
not apply engine
oil
to
these 0-rings.
[2]
[3]
[4]
[1]
[3]
[2]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
