Honda PCX150 2016 User Manual

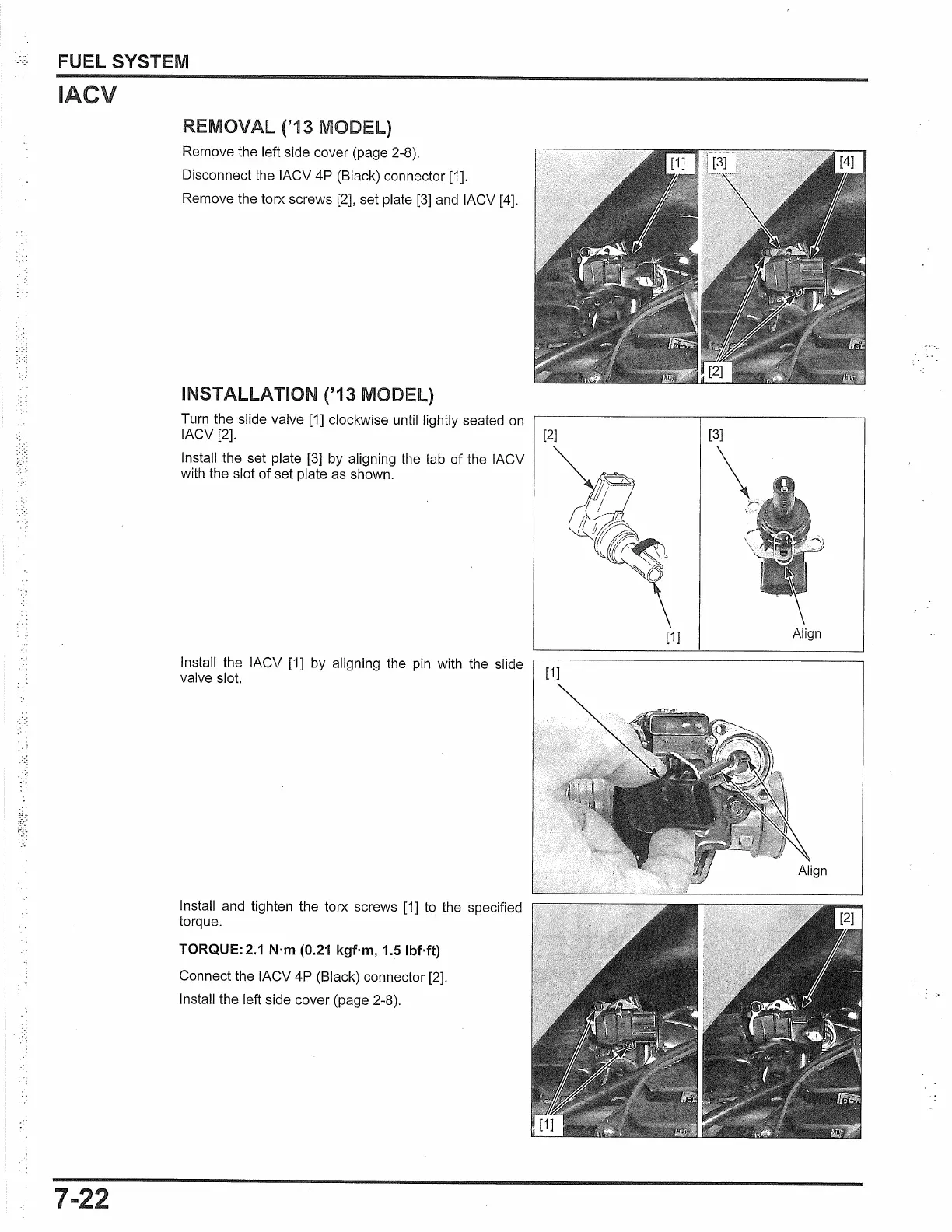

FUEL SYSTEM
IACV
7-22
REMOVAL ('13 MODEL)
Remove the left side cover (page 2-8).
Disconnect the IACV
4P
(Black) connector
[1].
Remove the torx screws [2], set plate [3] and IACV [4].
INSTALLATION ('13 MODEL)
Turn the slide valve [1] clockwise until lightly seated on
IACV
[2].
[2]
Install the set plate [3] by aligning the tab
of
the IACV
with the slot
of
set plate as shown.
Install the IACV [1] by aligning the pin with the slide
valve slot.
Install and tighten the torx screws [1] to the specified
torque.
TORQUE:2.1 N·m
(0.21
kgf·m, 1.5 lbMt)
Connect the IACV
4P
(Black) connector [2].
Install the left side cover (page 2-8).
[1]
[1]
Align

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
