Honda PCX150 2016 User Manual

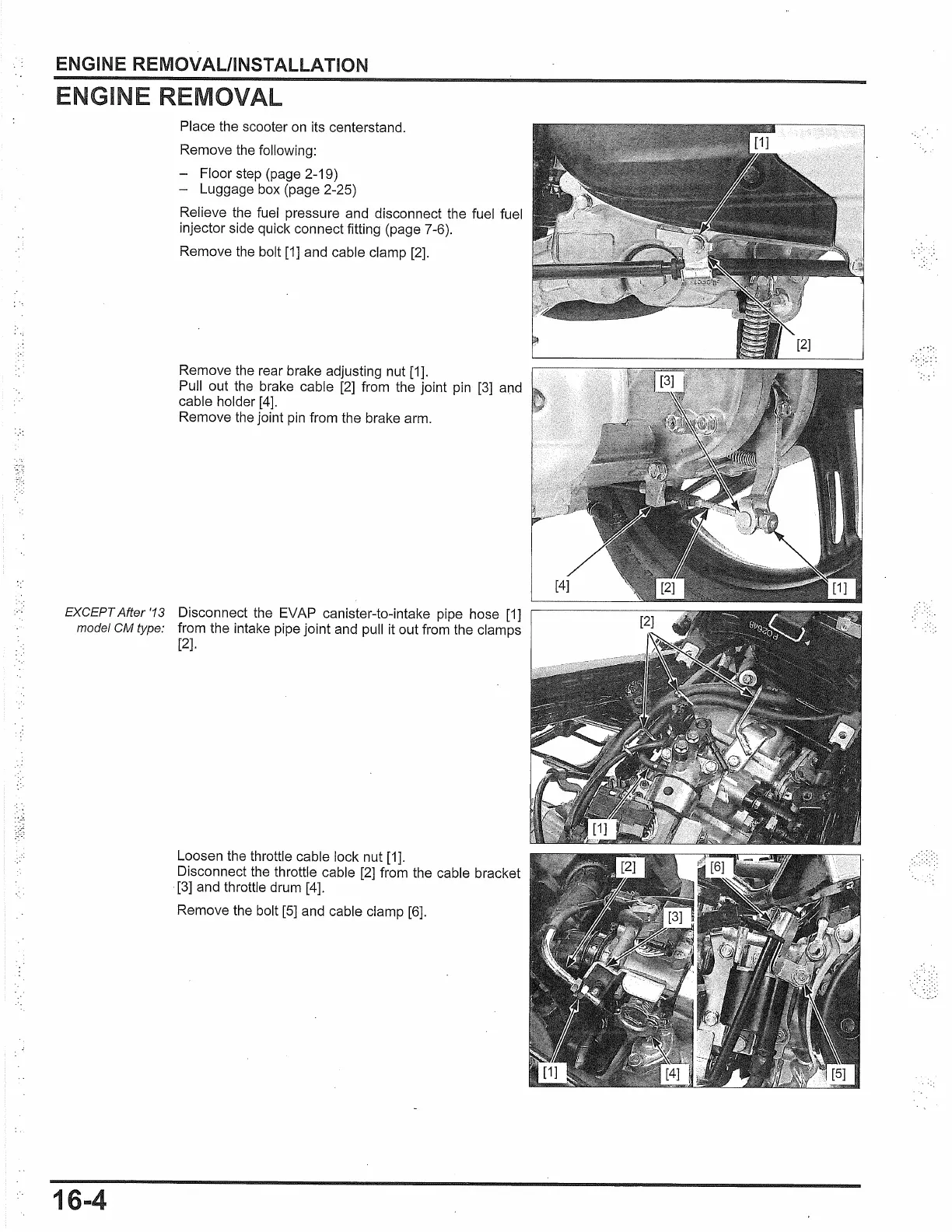

ENGINE REMOVAL/INSTALLATION
ENGINE REMOVAL
Place the scooter
on
its centerstand.
Remove the following:
- Floor step (page 2-19)
- Luggage box (page 2-25)
Relieve the fuel pressure and disconnect the fuel fuel
injector side quick connect fitting (page 7-6).
Remove the bolt [1] and cable clamp
[2].
Remove the rear brake adjusting nut [1].
Pull out the brake cable
[2]
from the joint
pin
[3]
and
cable holder
[4].
Remove the joint pin from the brake arm.
EXCEPT
After
'13
Disconnect the EVAP canister-to-intake pipe hose
[1]
model
CM
type:
from the intake pipe joint and pull it out from the clamps
[2].
Loosen the throttle cable lock nut [1].
Disconnect the throttle cable [2] from the cable bracket
· [3] and throttle drum [4].
Remove the bolt
[5]
and cable clamp [6].
16-4

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
