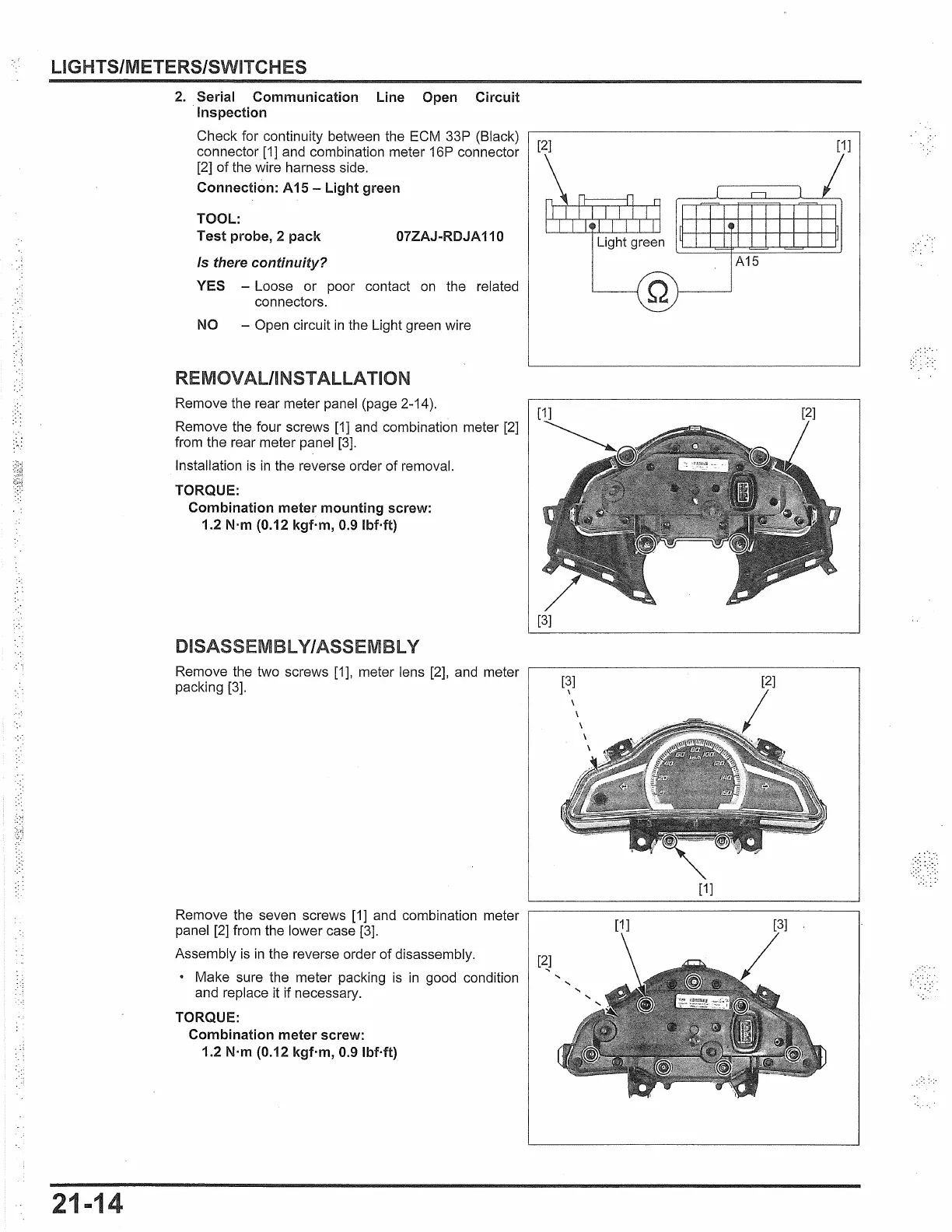

LIGHTS/METERS/SWITCHES
2. Serial Communication Line Open Circuit
· Inspection
Check for continuity between the ECM 33P (Black)
connector [1] and combination meter 16P connector
[2] of the wire harness side.
Connection: A15 - Light green
TOOL:
Test probe, 2 pack
07ZAJ-RDJA110
Is there continuity?
YES - Loose or poor contact on the related
connectors.
NO - Open circuit in the Light green wire
REMOVAl/lNSTALLA TION
Remove the rear meter panel (page 2-14).
Remove the four screws
[1] and combination meter [2]
from the rear meter panel [3].
Installation is in the reverse order of removal.
TORQUE:
Combination meter mounting screw:
1.2 N·m (0.12 kgf·m, 0.9 lbMt)
DISASSEMBLY/ASSEMBLY
Remove the two screws [1], meter lens [2], and meter
packing [3].
Remove the seven screws [1] and combination meter
panel [2] from the lower case [3].
Assembly
is in the reverse order of disassembly.
• Make sure the meter packing
is in good condition
and replace it if necessary.
TORQUE:
Combination meter screw:
1.2 N·m (0.12 kgf·m, 0.9
lbMt)
[2] [1]
Light green
A15
[3]
[1]
[2]
