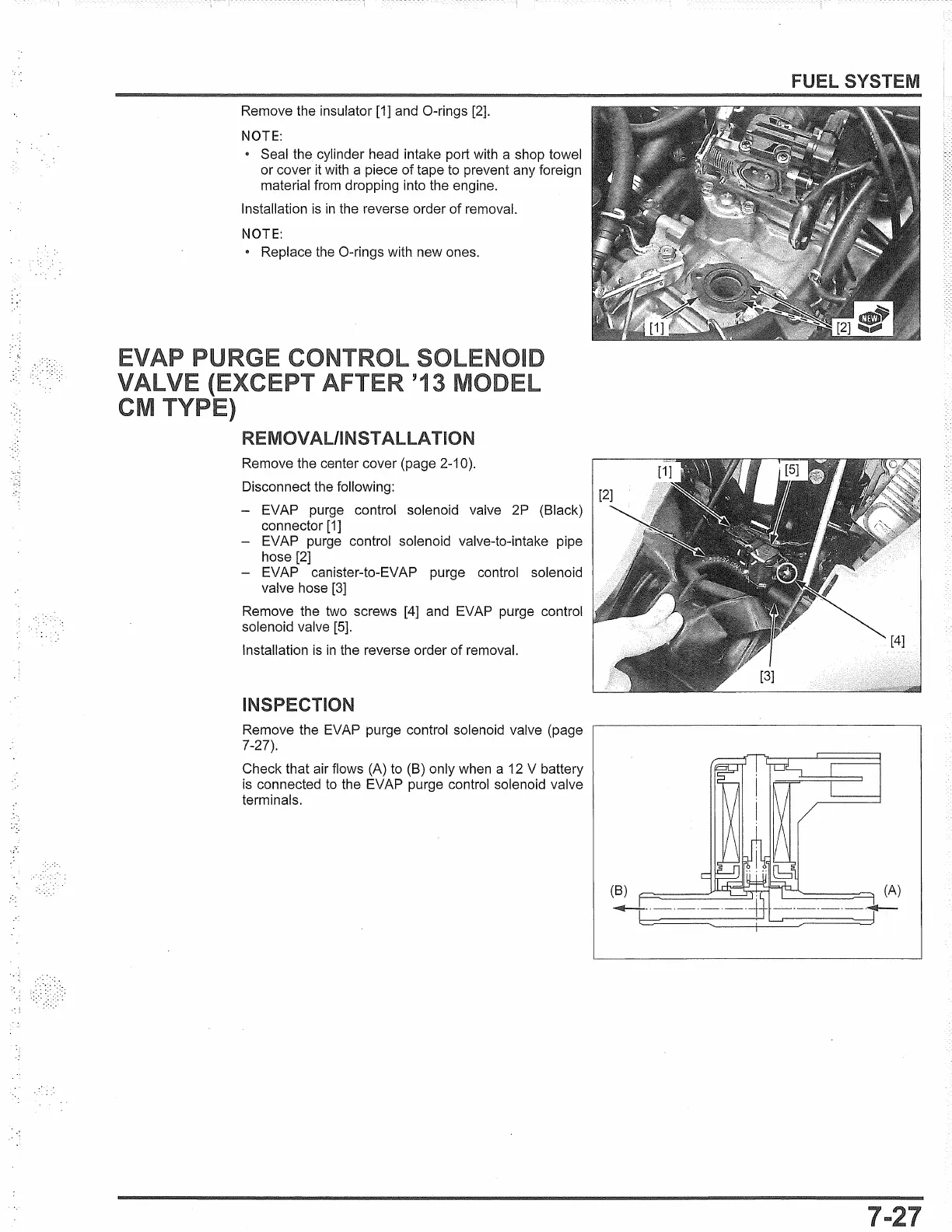

Remove the insulator [1] and 0-rings [2].
NOTE:
• Seal the cylinder head intake port with a shop towel
or cover it with a piece
of tape to prevent any foreign
material from dropping into the engine.
Installation
is in the reverse order of removal.
NOTE:
• Replace the 0-rings with new ones.
REMOVAL/INSTALLATION
Remove the center cover (page 2-10).
Disconnect the following:
- EVAP purge control solenoid valve 2P (Black)
connector
[1]
- EVAP purge control solenoid valve-to-intake pipe
hose [2]
- EVAP canister-to-EVAP purge control solenoid
valve hose [3]
Remove the two screws [4] and EVAP purge control
solenoid valve [5].
Installation
is in the reverse order of removal.
INSPECTION
Remove the EVAP purge control solenoid valve (page
7-27).
Check that air flows (A) to (B) only when a 12 V battery
is connected to the EVAP purge control solenoid valve
terminals.
(B) .
~-----------1
(A)

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
