Honda PCX150 2016 User Manual

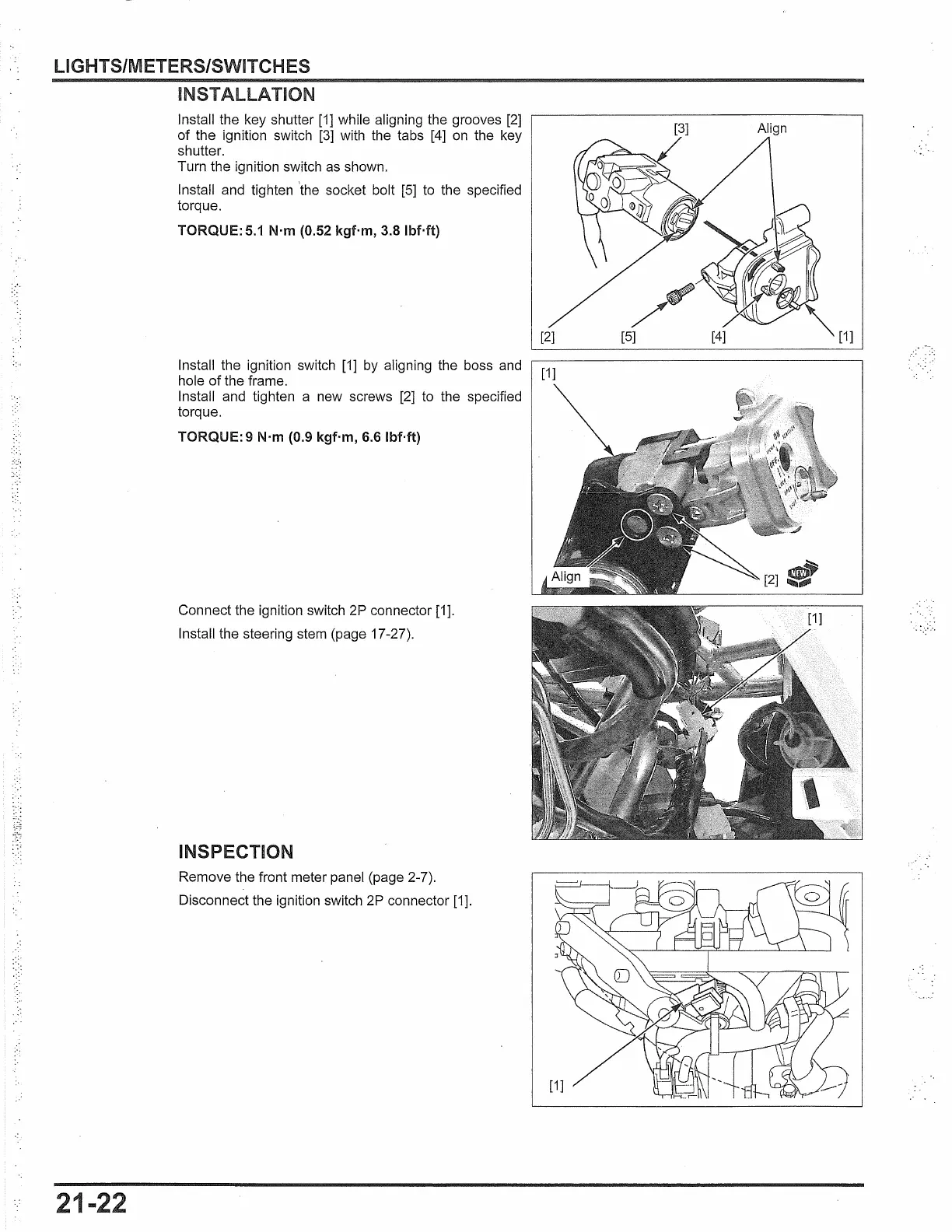

LIGHTS/METERS/SWITCHES
21-22
INSTALLATION
Install the key shutter [1] while aligning the grooves [2]
of the ignition switch [3] with the tabs [4] on the key
shutter.
Turn the ignition switch
as shown.
Install and tighten
'the socket bolt [5] to the specified
torque.
TORQUE: 5.1 N·m (0.52 kgf·m, 3.8 lbMt)
Install the ignition switch [1] by aligning the boss and
hole of the frame.
Install and tighten a new screws
[2] to the specified
torque.
TORQUE: 9 N·m (0.9 kgf·m, 6.6 lbMt)
Connect the ignition switch 2P connector [1].
Install the steering stem (page 17-27).
INSPECTION
Remove the front meter panel (page 2-7).
Disconnect the ignition switch
2P connector [1].
[3]
Align
[1]
[1]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
