Honda PCX150 2016 User Manual

:j
I

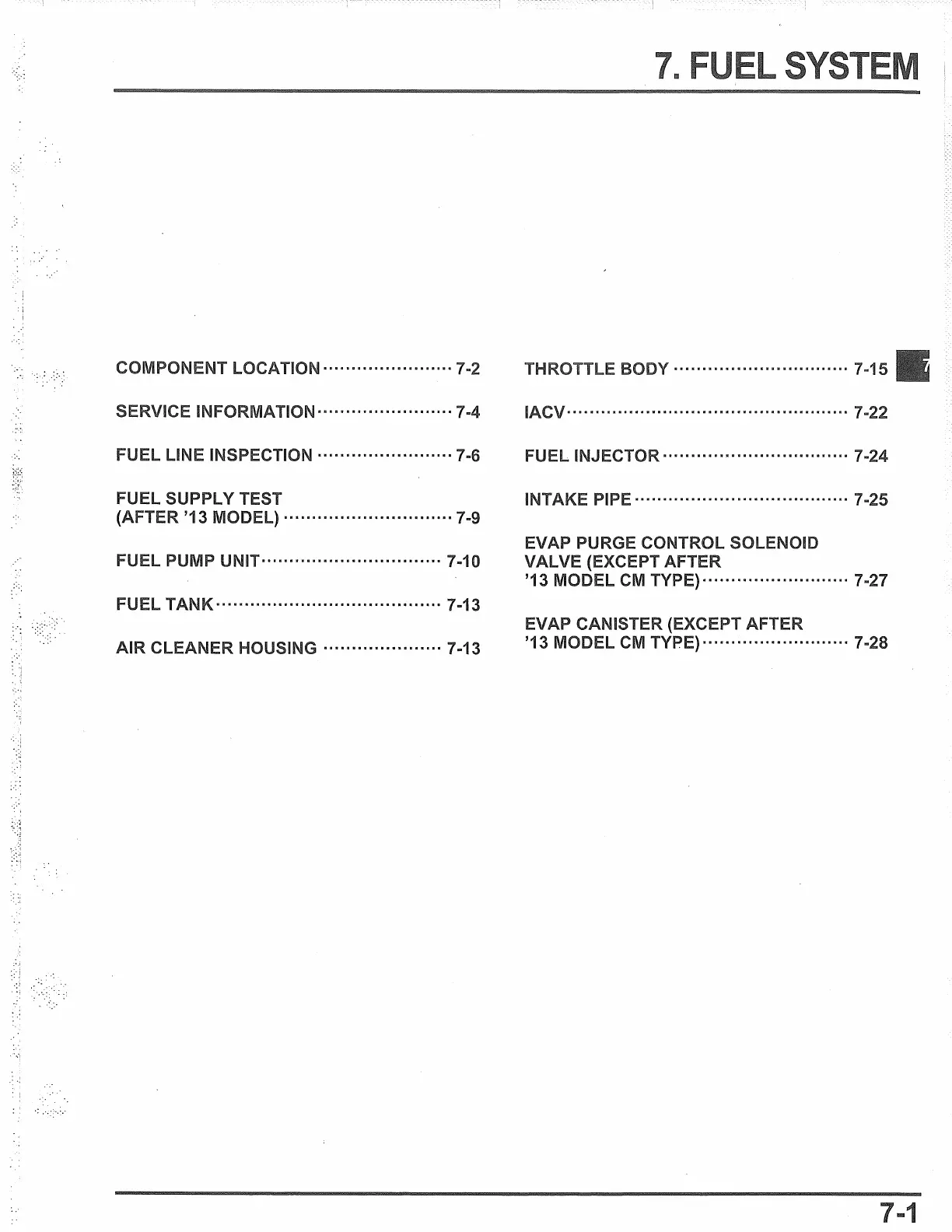

COMPONENT LOCATION
......................
.
SERVICE INFORMATION
........................
7-4
LINE INSPECTION ·
......
·
........
· .. · · · · · 7
-6
FUEL SUPPLY TEST
(AFTER '13 MODEL)
..............................
7-9
FUEL PUMP UNIT,
...............................
7-10
FUEL
TANK········································
7-13
AIR
CLEANER HOUSING
.....................
7-13
THROTTLE BODY
...............................
7-15
IACV··················································
7-22
FUEL INJECTOR
.................................
7-24
INTAKE
PIPE······································
7-25
EVAP PURGE CONTROL SOLENOID
VALVE(EXCEPT
'13 MODEL
CM
TYPE)··· .. · .. · ..
······
........ · 7-27
EVAP CANISTER (EXCEPT AFTER
'13 MODEL
CM
TYPE)
..........................
7-28

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
