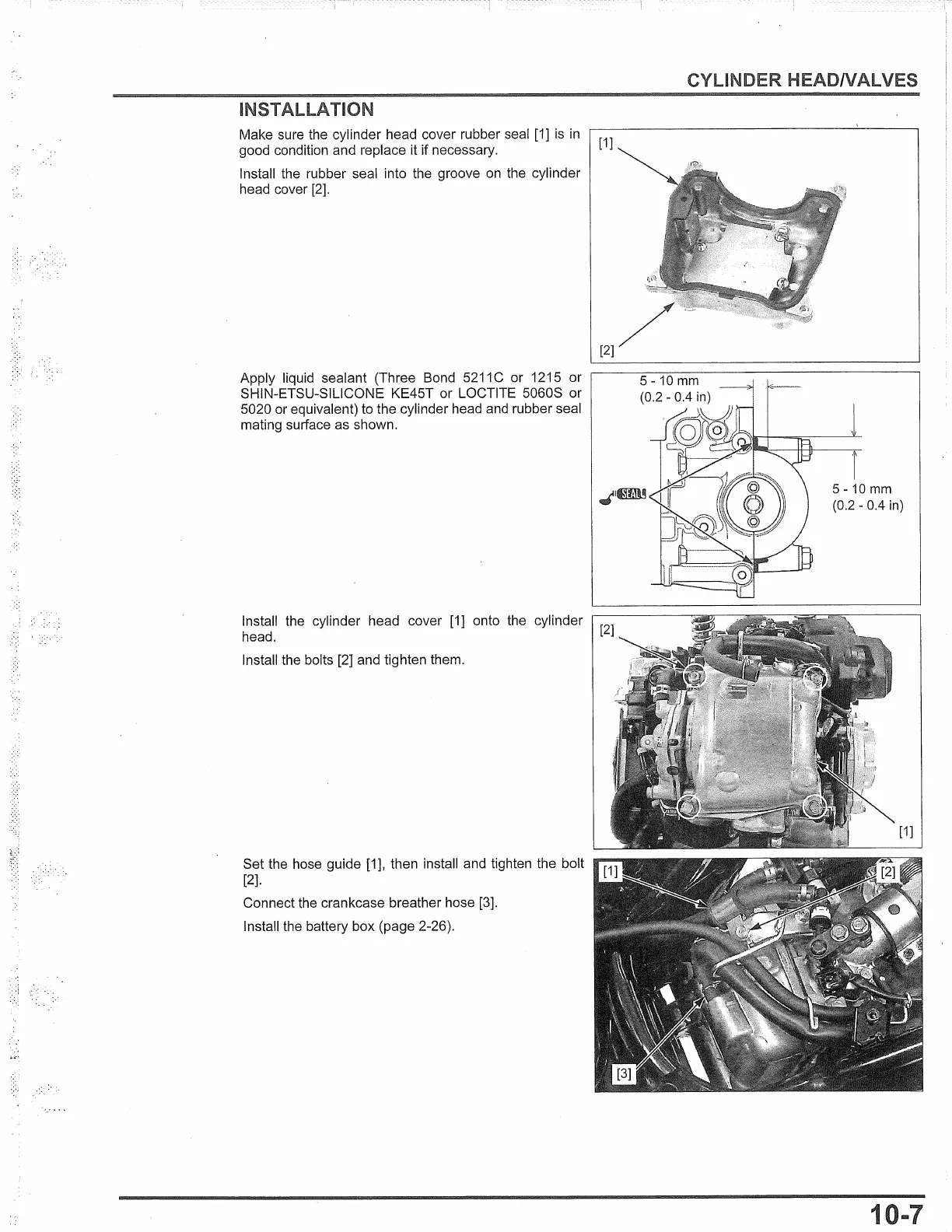

INSTALLATION
Make sure the cylinder head cover rubber seal [1] is
in
good condition and replace it if necessary.
Install the rubber seal into the groove
on
the cylinder
head cover [2].
Apply liquid sealant (Three Bond 5211C or 1215 or
SHIN-ETSU-SILICONE KE45T or LOCTITE 5060S or
5020 or equivalent) to the cylinder head and rubber seal
mating surface as shown.
Install the cylinder head cover [1] onto the cylinder [
2
]
head.
Install the bolts [2] and tighten them.
Set the hose guide [1], then install and tighten the bolt
[2].
Connect the crankcase breather hose [3].
Install the battery box (page 2-26).
HEADNALVES
__
,
-
l
5 -
10
mm
(0.2 -
0.4
in)
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
