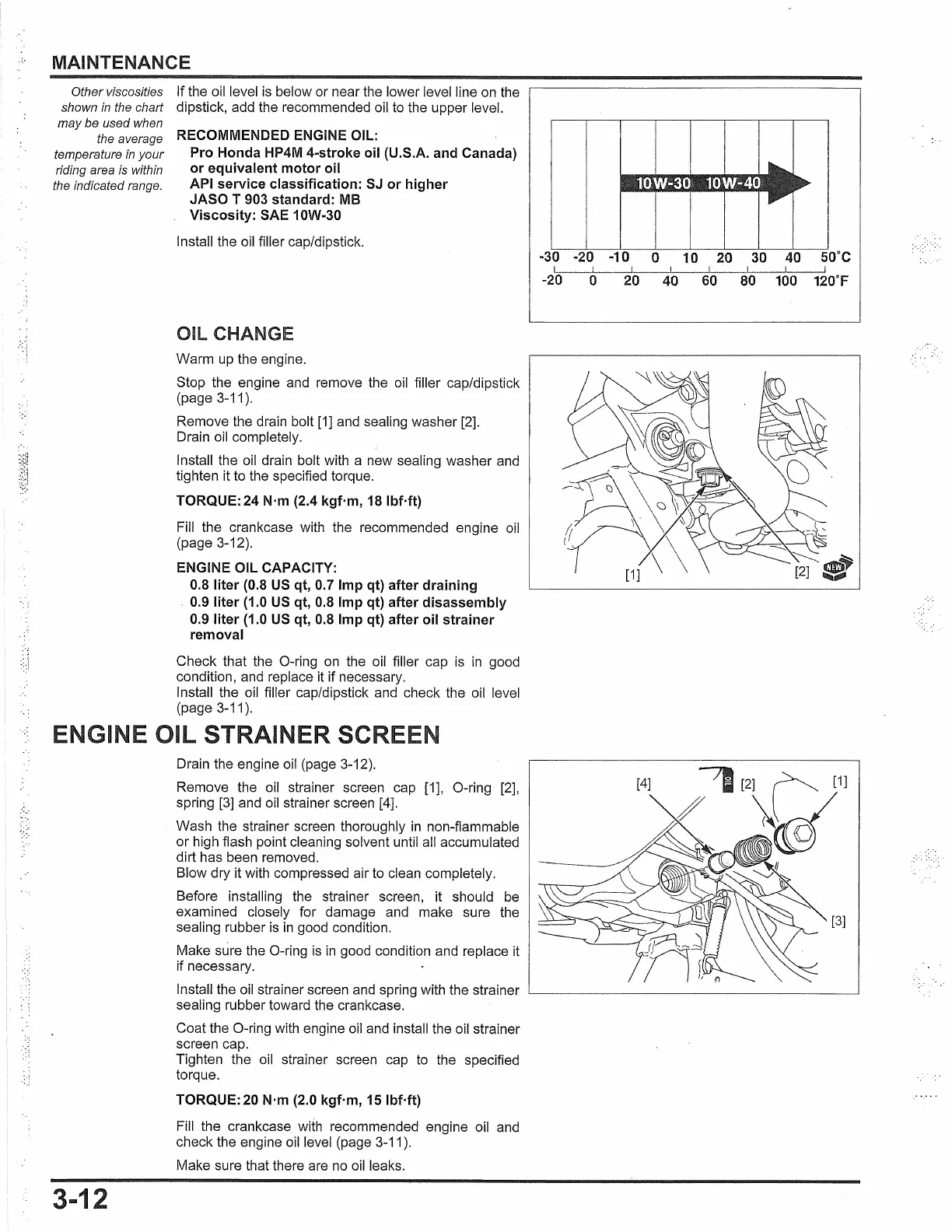

- MAINTENANCE
Other viscosities
If the oil level
is
below or near the lower level line
on
the
shown
in
the chart
dipstick, add the recommended oil
to
the upper level.
may be used when
the average
temperature in
your
riding area is within
the indicated range.
RECOMMENDED ENGINE OIL:
Pro Honda HP4M 4-stroke
oil
(U.S.A. and Canada)
or equivalent motor oil
API service classification:
SJ
or higher
JASO T 903 standard:
MB
Viscosity: SAE 1
OW-30
Install the oil filler cap/dipstick.
OIL CHANGE
Warm
up
the engine.
Stop the engine and remove the
oil
filler cap/dipstick
(page
3-11
).
Remove the drain bolt
[1]
and sealing washer [2].
Drain oil completely.
Install the oil drain bolt with a new sealing washer and
tighten it to the specified torque.
TORQUE:24 N·m (2.4 kgf·m, 18
lbHt)
Fill the crankcase with the recommended engine
oil
(page 3-12).
ENGINE OIL CAPACITY:
0.8 liter (0.8
US
qt, 0.7 Imp qt) after draining
. 0.9 liter (1.0
US
qt, 0.8 Imp qt) after disassembly
0.9 liter (1.0
US
qt, 0.8 Imp qt) after oil strainer
removal
Check that the 0-ring
on
the oil filler cap
is
in
good
condition, and replace it if necessary.
Install the
oil
filler cap/dipstick and check the oil level
(page
3-11
).
ENGIN OIL STRAINER SCRE N
3-12
Drain the engine
oil
(page 3-12).
Remove the oil strainer screen cap [1], 0-ring [2],
spring [3] and
oil
strainer screen [4].
Wash the strainer screen thoroughly
in
non-flammable
or high flash point cleaning solvent until
all
accumulated
dirt has been removed.
Blow dry it with compressed air to clean completely.
Before installing the strainer screen, it should
be
examined closely for damage and make sure the
sealing rubber
is
in
good condition.
Make sure the 0-ring
is
in
good condition and replace it
if necessary.
Install the oil strainer screen and spring with the strainer
sealing rubber toward the crankcase.
Coat the 0-ring with engine
oil
and install the oil strainer
screen cap.
Tighten the
oil
strainer screen cap
to
the specified
torque.
TORQUE:20 N·m (2.0 kgf·m, 15
lbHt)
Fill the crankcase with recommended engine oil and
check the engine
oil
level (page
3-11
).
Make sure that there are
no
oil
leaks.
