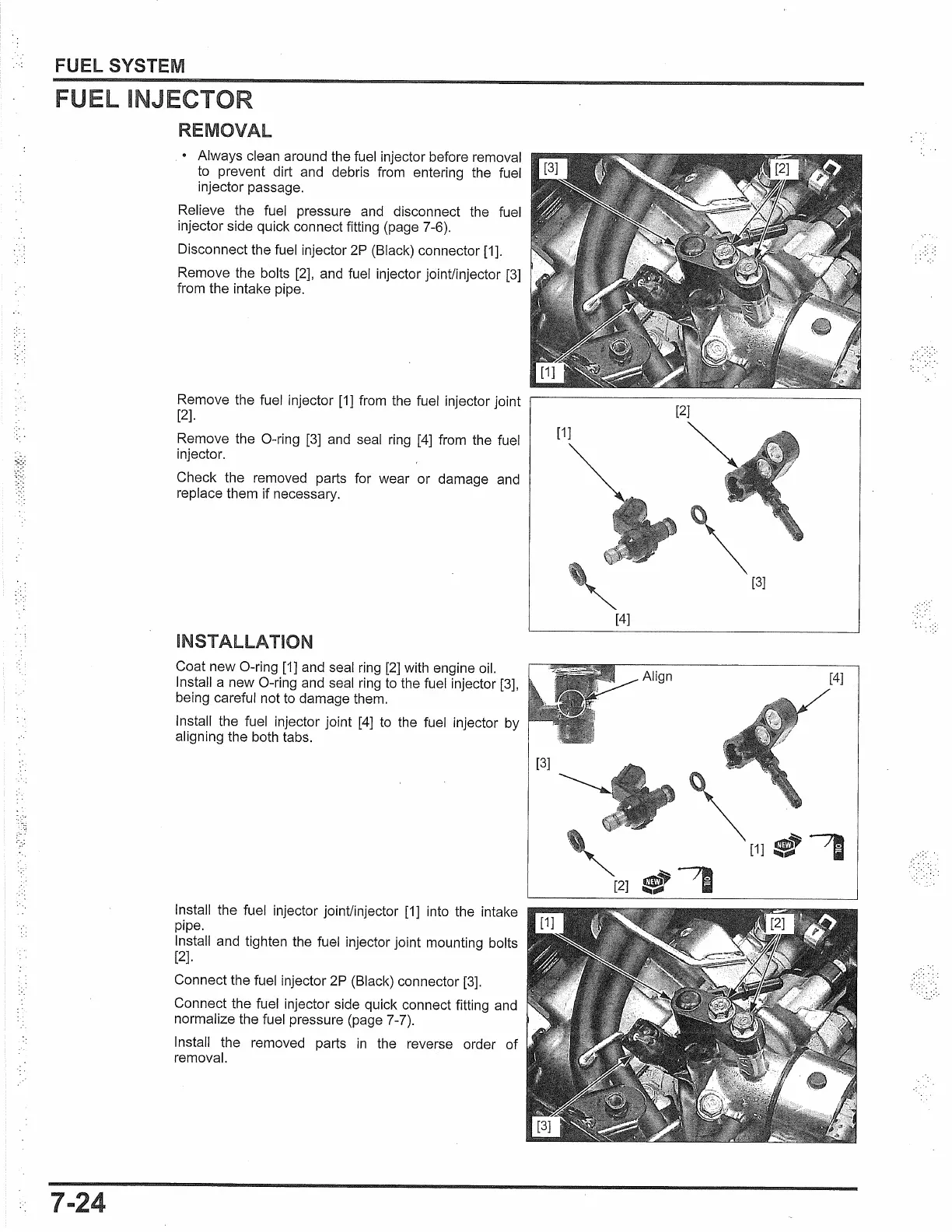

FUEL SYSTEM
7-24
REMOVAL
• Always clean around the fuel injector before removal
to prevent dirt and debris from entering the fuel
injector passage.
Relieve the fuel pressure and disconnect the fuel
injector side quick connect fitting (page 7-6).
Disconnect the fuel injector 2P (Black) connector [1].
Remove the bolts [2], and fuel injector joint/injector [3]
from the intake pipe.
Remove the fuel injector
[1]
from the fuel injector joint
[2].
Remove the 0-ring [3] and seal ring
[4]
from the fuel
injector.
Check the removed parts for wear or damage and
replace them if necessary.
INSTALLATION
Coat new 0-ring
[1]
and seal ring
[2]
with engine oil.
Install a new 0-ring and seal ring to the fuel injector [3],
being careful not
to
damage them.
Install the fuel injector joint [4]
to
the fuel injector by
aligning the both tabs.
Install the fuel injector joint/injector [1] into the intake
pipe.
Install and tighten the fuel injector joint mounting bolts
[2].
Connect the fuel injector
2P
(Black) connector [3].
Connect the fuel injector side quick connect fitting and
normalize the fuel pressure (page 7-7).
Install the removed parts
in
the reverse order
of
removal.
[1]
[3]
[2]
[4]
Align
~/It
[2]
s .
iJ
[3]
[4]
[11:ft-"l

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
