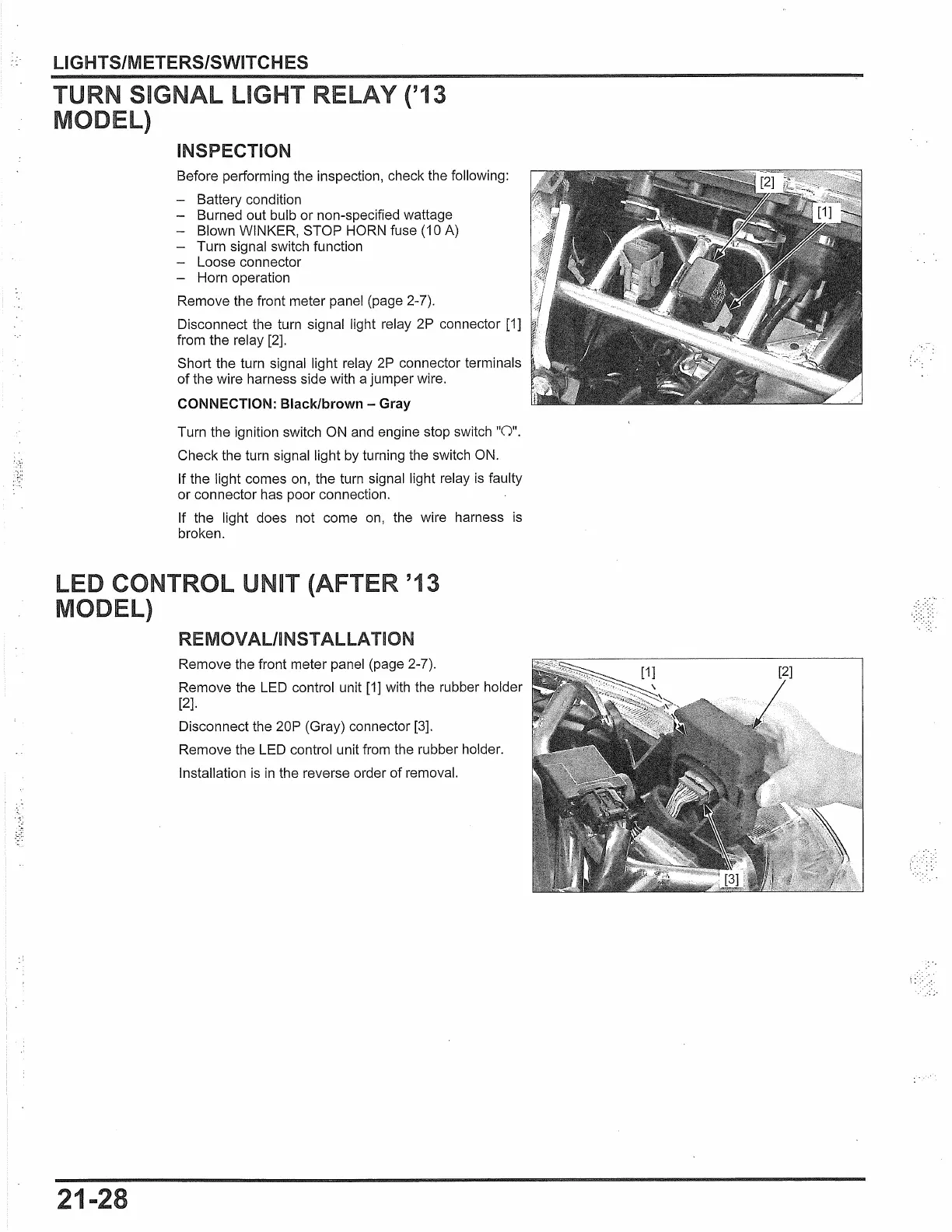

LIGHTS/METERS/SWITCHES
SIGNAL
MO EL)
{'13
INSPECTION
Before performing the inspection, check the following:
- Battery condition
- Burned out bulb or non-specified wattage
- Blown WINKER, STOP HORN fuse (10
A)
- Turn signal switch function
- Loose connector
- Horn operation
Remove the front meter panel (page 2-7).
Disconnect the turn signal light relay 2P connector [1]
from the relay [2].
Short the turn signal light relay 2P connector terminals
of the wire harness side with a jumper wire.
CONNECTION: Black/brown - Gray
Turn the ignition switch
ON
and
engine stop switch
"0".
Check the turn signal light
by
turning the switch
ON.
If the light comes on, the turn signal light relay
is
faulty
or connector has poor connection.
If the light does not come
on,
the wire harness
is
broken.
LED CONTR
MOD L)
UNIT
'13
21-28
REMOVAL/INSTALLATION
Remove the front meter panel (page 2-7).
Remove the LED control unit
[1]
with the rubber holder
[2].
Disconnect the 20P (Gray) connector [3].
Remove the LED control unit from the rubber holder.
Installation
is
in
the reverse order of removal.

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
