Honda PCX150 2016 User Manual

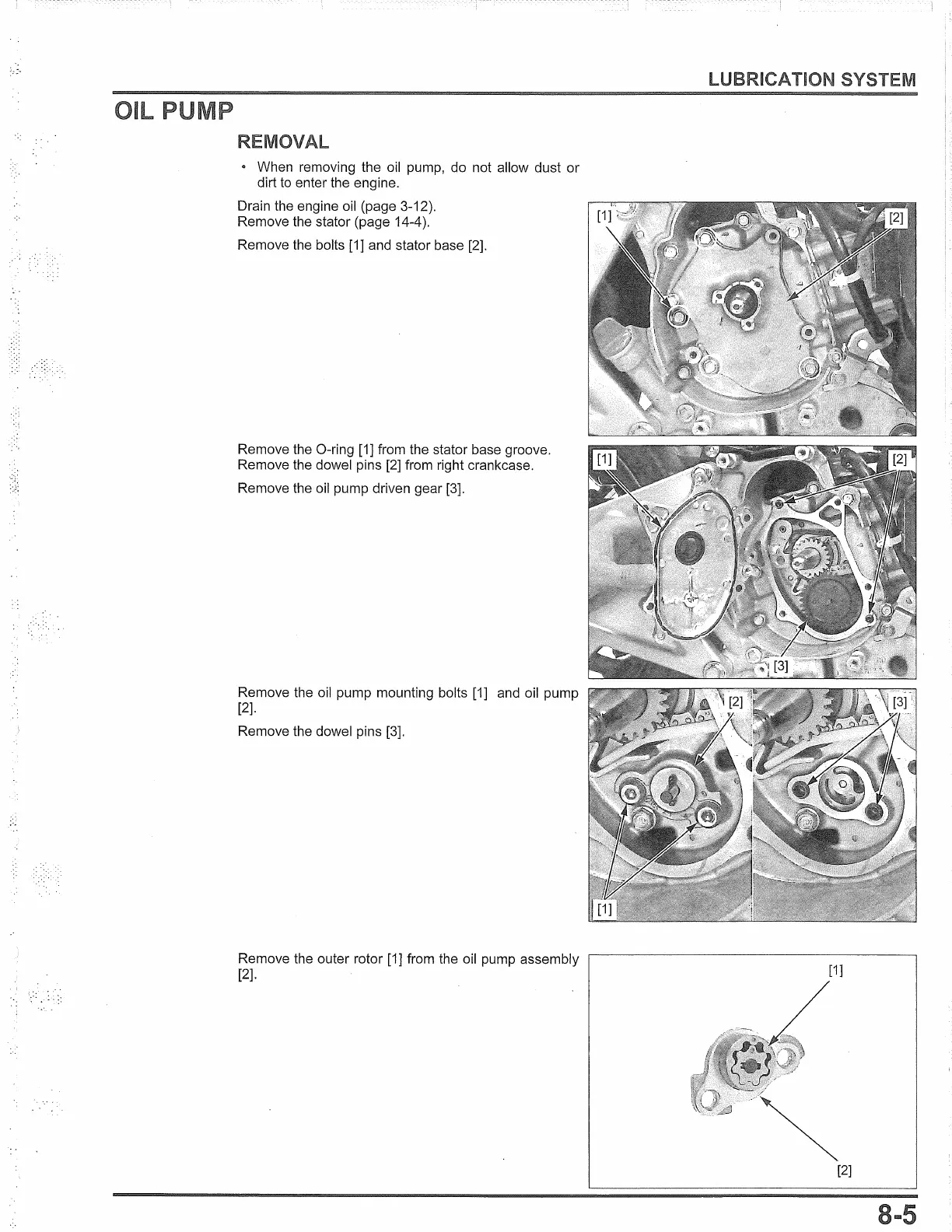

• When removing the oil pump, do not allow dust or
dirt
to
enter the engine.
Drain the engine oil (page 3-12).
Remove the stator (page 14-4
).
Remove the bolts [1] and stator base [2].
Remove the 0-ring
[1]
from the stator base groove.
Remove the dowel pins [2] from right crankcase.
Remove the oil pump driven gear [3].
Remove the oil pump mounting bolts
[1]
and oil pump
[2].
Remove the dowel pins [3].
Remove the outer rotor
[1]
from the oil pump assembly
[2].
[2]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
