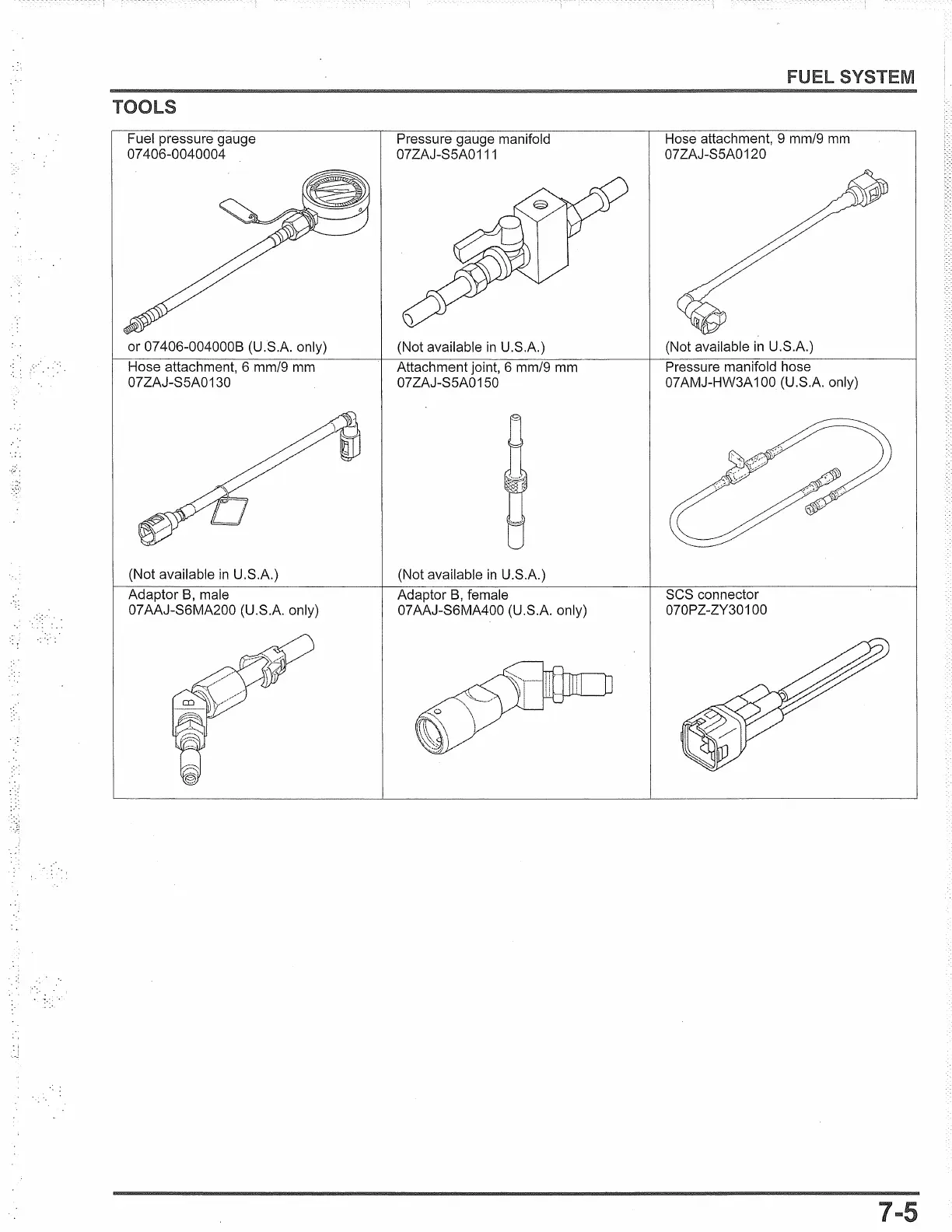

Fuel pressure gauge
07 406-0040004
or 07406-0040008 (U.S.A. only)
Hose attachment, 6 mm/9 mm
07ZAJ-S5A0130
(Not available
in
U.S.A.)
Adaptor
B,
male
07 AAJ-S6MA200 (U.S.A. only)
Pressure gauge manifold
07ZAJ-S5A0111
(Not available
in
U.S.A.)
Attachment joint, 6 mm/9 mm
07ZAJ-S5AO 150
(Not available
in
U.S.A.)
Adaptor
B,
female
07 AAJ-S6MA400 (U.S.A. only)
SYSTEM
Hose attachment, 9 mm/9
mm
07ZAJ-S5A0120
(Not available in U.S.A.)
Pressure manifold hose
07
AMJ-HW3A 100 (U.S.A. only)
SCS connector
070PZ-ZY30100
