Honda PCX150 2016 User Manual

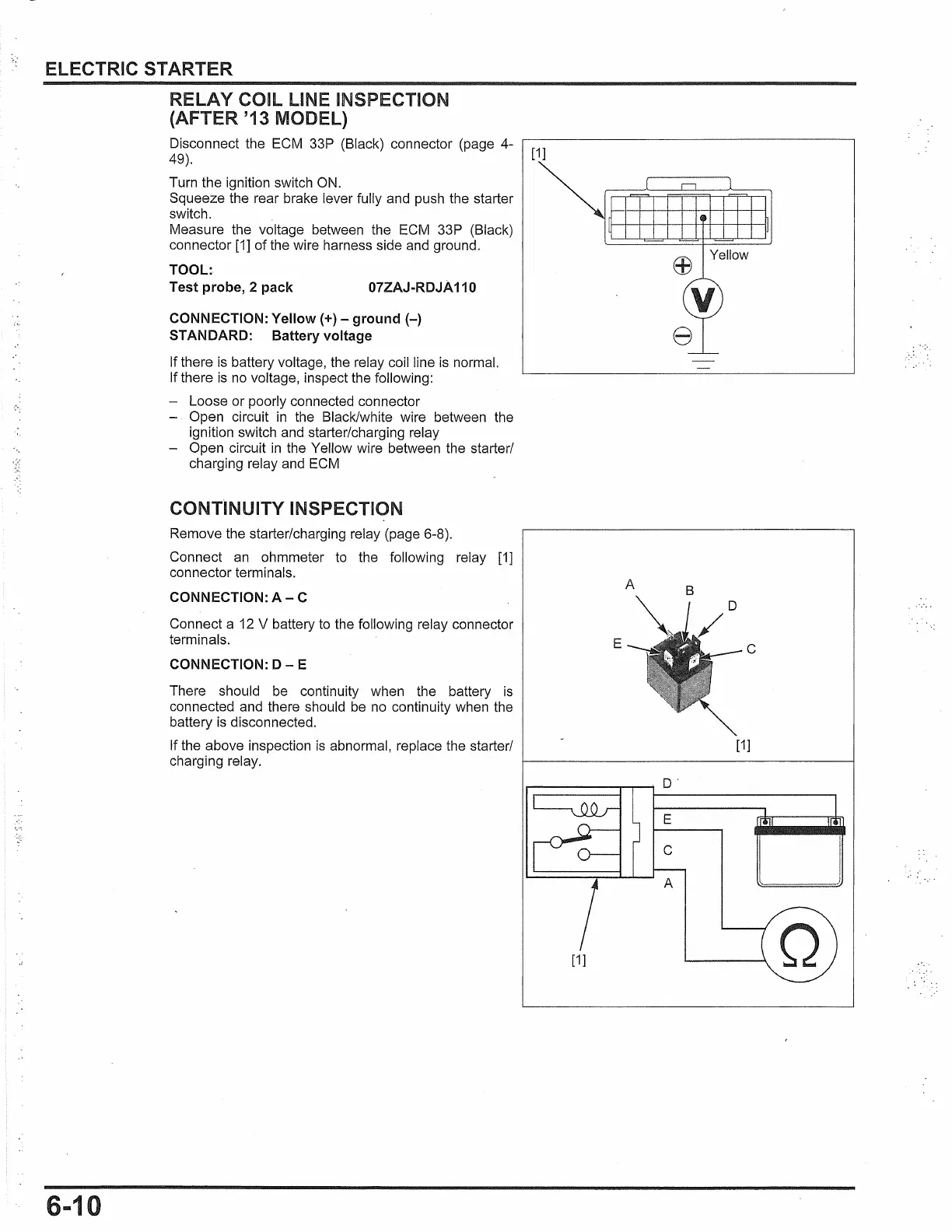

ELECTRIC STARTER
6-10
RELAY COIL LINE INSPECTION
(AFTER '13 MODEL)
Disconnect the ECM 33P (Black) connector (page 4-
49).
Turn the ignition switch ON.
Squeeze the rear brake lever fully and push the starter
switch.
Measure the voltage between the ECM 33P (Black)
connector [1]
of the wire harness side and ground.
TOOL:
Test probe, 2 pack 07ZAJ-RDJA 110
CONNECTION: Yellow(+) - ground
(-)
STANDARD: Battery voltage
If there is battery voltage, the relay coil line is normal.
If there
is no voltage, inspect the following:
- Loose
or poorly connected connector
- Open circuit
in the Black/white wire between the
ignition switch and starter/charging relay
- Open circuit
in the Yellow wire between the starter/
charging relay and ECM
CONTINUITY INSPECTION
Remove the starter/charging relay (page 6-8).
Connect
an ohmmeter to the following relay [1]
connector terminals.
CONNECTION: A- C
Connect a 12 V battery to the following relay connector
terminals.
CONNECTION: D - E
There should be continuity when the battery is
connected and there should be no continuity when the
battery
is disconnected.
If the above inspection
is abnormal, replace the starter/
charging relay.
[1]
E
C
[1]
[1]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
