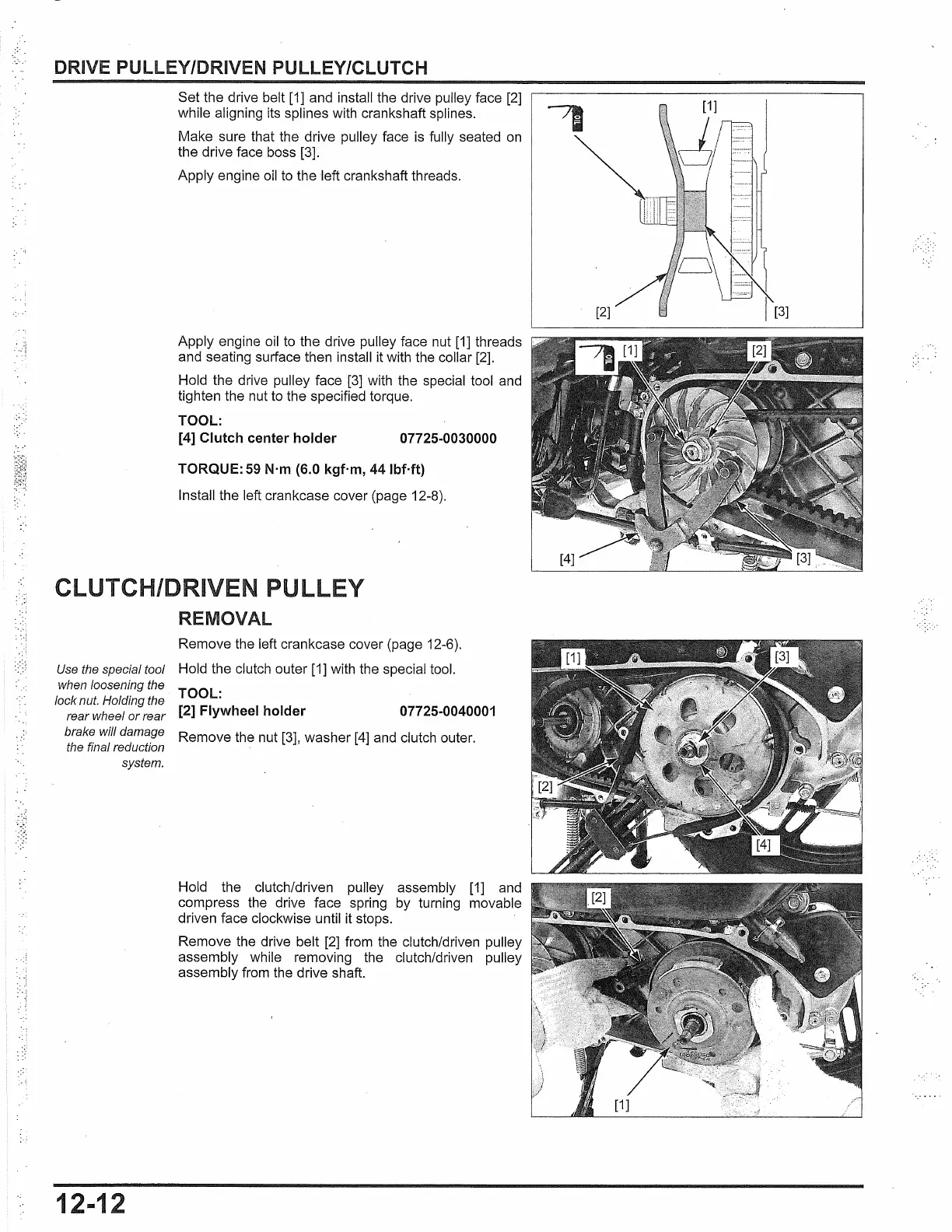

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
Set the drive belt [1] and install the drive pulley face
[2]
while aligning its splines with crankshaft splines.
Make sure that the drive pulley face is fully seated
on
the drive face boss [3].
Apply engine oil to the left crankshaft threads.
Apply engine
oil
to
the drive pulley face nut
[1]
threads
and seating surface then install it with the collar
[2].
Hold the drive pulley face
[3]
with the special tool and
tighten the nut to the specified torque.
TOOL:
[4] Clutch center holder
07725-0030000
TORQUE: 59 N·m (6.0 kgf·m, 44 lbf·ft)
Install the left crankcase cover (page 12-8).
CLUTCH/DRIVEN PULLEY
REMOVAL
Use the special tool
when loosening the
lock nut. Holding the
rear wheel
or
rear
brake will damage
the final reduction
system.
12-12
Remove the left crankcase cover (page 12-6).
Hold the clutch outer [1] with the special tool.
TOOL:
[2] Flywheel holder 07725-0040001
Remove the nut [3], washer
[4]
and clutch outer.
Hold the clutch/driven pulley assembly
[1]
and
compress the drive face spring by turning movable
driven face clockwise until it stops.
Remove the drive belt [2] from the clutch/driven pulley
assembly while removing the clutch/driven pulley
assembly from the drive shaft.

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
