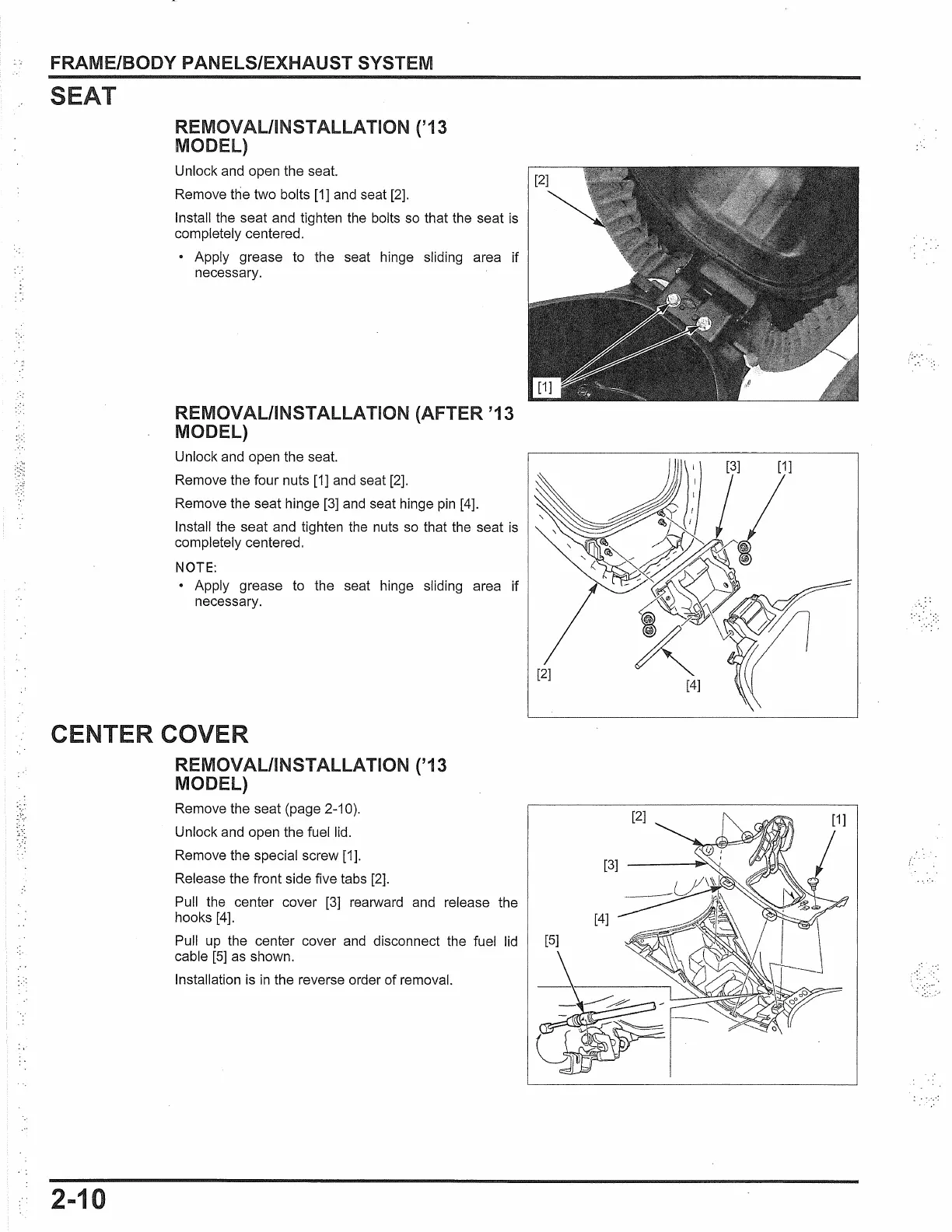

FRAME/BODY PANELS/EXHAUST SYSTEM
s
REMOVAL/INSTALLATION ('13
MODEL)
Unlock and open the seat.
Remove the two bolts
[1]
and
seat
[2].
Install the seat and tighten the bolts
so
that the seat
is
completely centered.
Apply grease to the seat hinge sliding area if
necessary.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Unlock and open the seat.
Remove the four nuts
[1]
and
seat
[2].
Remove the seat hinge [3]
and
seat hinge
pin
[4].
Install the seat and tighten the nuts
so
that the seat
is
completely centered.
NOTE:
• Apply grease
to
the seat hinge sliding area if
necessary.
CENTER COVER
REMOVAL/INSTALLATION ('13
MODEL)
2-10
Remove the seat (page 2-10).
Unlock
and
open the fuel lid.
Remove the special screw
[1
].
Release the front side five tabs
[2].
Pull the center cover
[3]
rearward and release the
hooks
[4].
Pull
up
the center cover
and
disconnect the fuel lid
cable
[5]
as
shown.
Installation is
in
the reverse order of removal.

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
