Honda PCX150 2016 User Manual

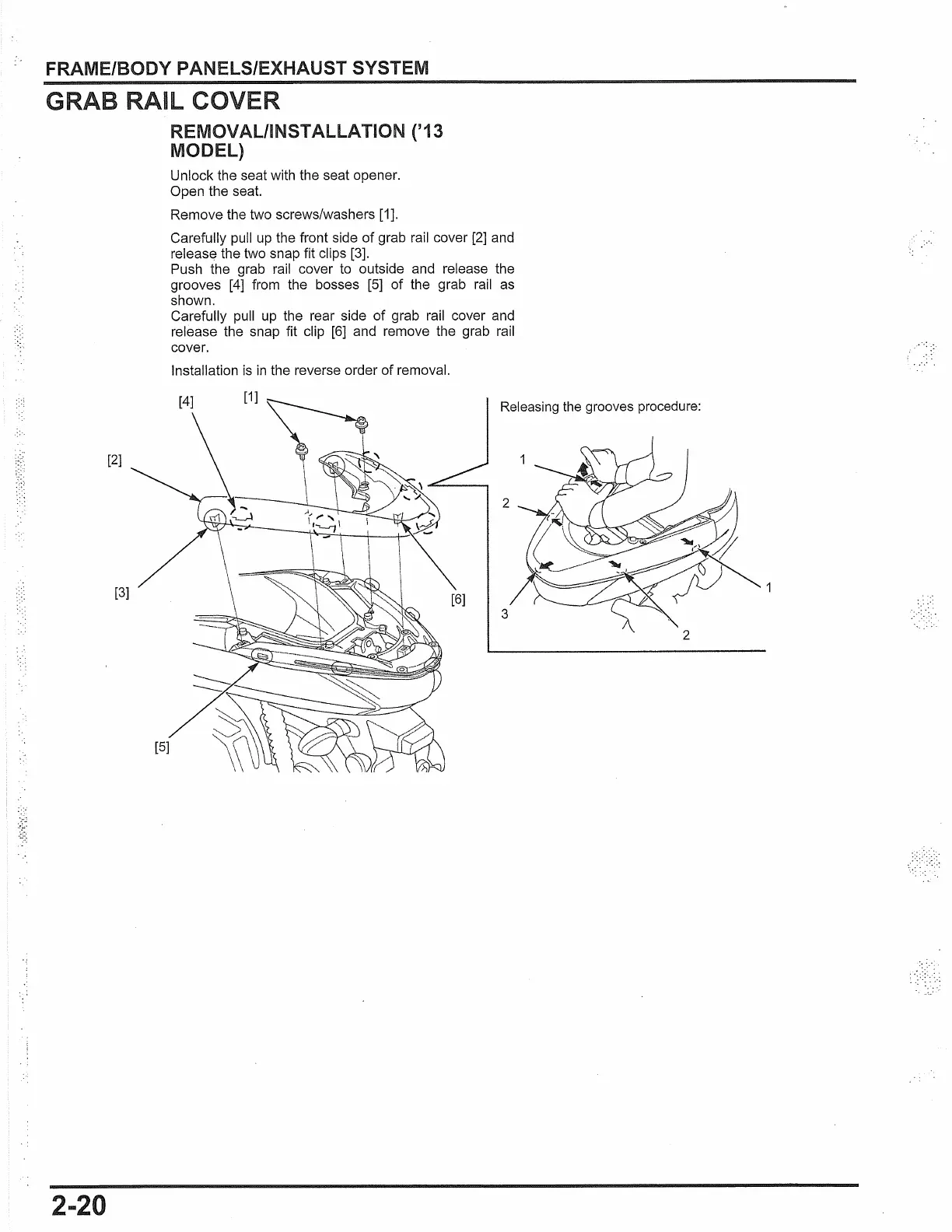

FRAME/BODY PANELS/EXHAUST SYSTEM
GRAB RAIL COVER
REMOVAL/INSTALLATION ('13
MODEL)
[2]
[3]
2-20
Unlock
the seat with the seat opener.
Open the seat.
Remove
the two screws/washers [1].
Carefully pull up the front side
of
grab rail cover [2] and
release the two snap fit clips [3].
Push
the
grab rail cover to outside and release the
grooves
[4] from the bosses [5]
of
the grab rail as
shown.
Carefully pull up the rear side
of
grab rail cover and
release the snap fit clip [6] and remove the grab rail
cover.
Installation is
in
the reverse
order
of
removal.
Releasing the grooves procedure:
2
3

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
