Honda PCX150 2016 User Manual

Wear insulated
gloves and
adequate eye
protection. Keep
flammable
materials
away
from
the electric heating
element.
Do
not
let the
thermostat
or
thermometer [2]
touch the pan,
or
you will
get
a
false
reading.
Remove the two bolts [1], thermostat [2] and
0-ring
[3]
from the water pump cover [4].

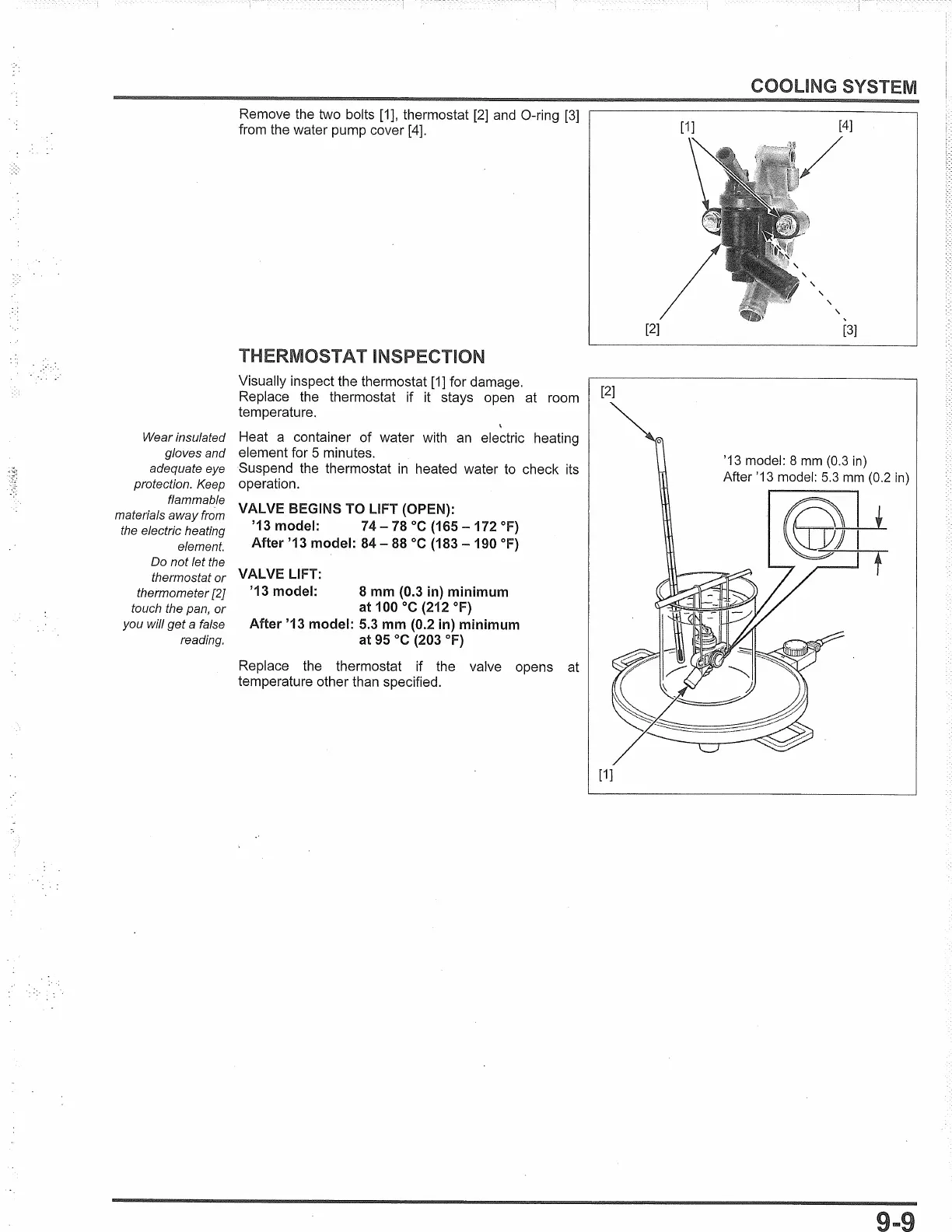

THERMOSTAT INSPECTION
Visually inspect the thermostat [1] for damage.
Replace the thermostat if it stays open at room
temperature.
\
Heat a container
of
water with an electric heating
element for 5 minutes.
Suspend the thermostat
in
heated water to check its
operation.
VALVE BEGINS TO LIFT (OPEN):
'13 model: 74 - 78
°c
(165 - 172
°F)
After '13 model: 84 - 88
°c
(183 - 190
°F)
VALVE LIFT:
'13 model: 8 mm (0.3 in) minimum
at 100
°c
(212
°F)
After '13 model: 5.3 mm (0.2 in) minimum
at 95 °C (203 °F)
Replace the thermostat if the valve opens at
temperature other than specified.
COOLING SYSTEM
[2]
[3]
[2]
'13 model: 8
mm
(0.3
in)
After '13 model:
5.3
mm
(0.2
in)
[1]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
