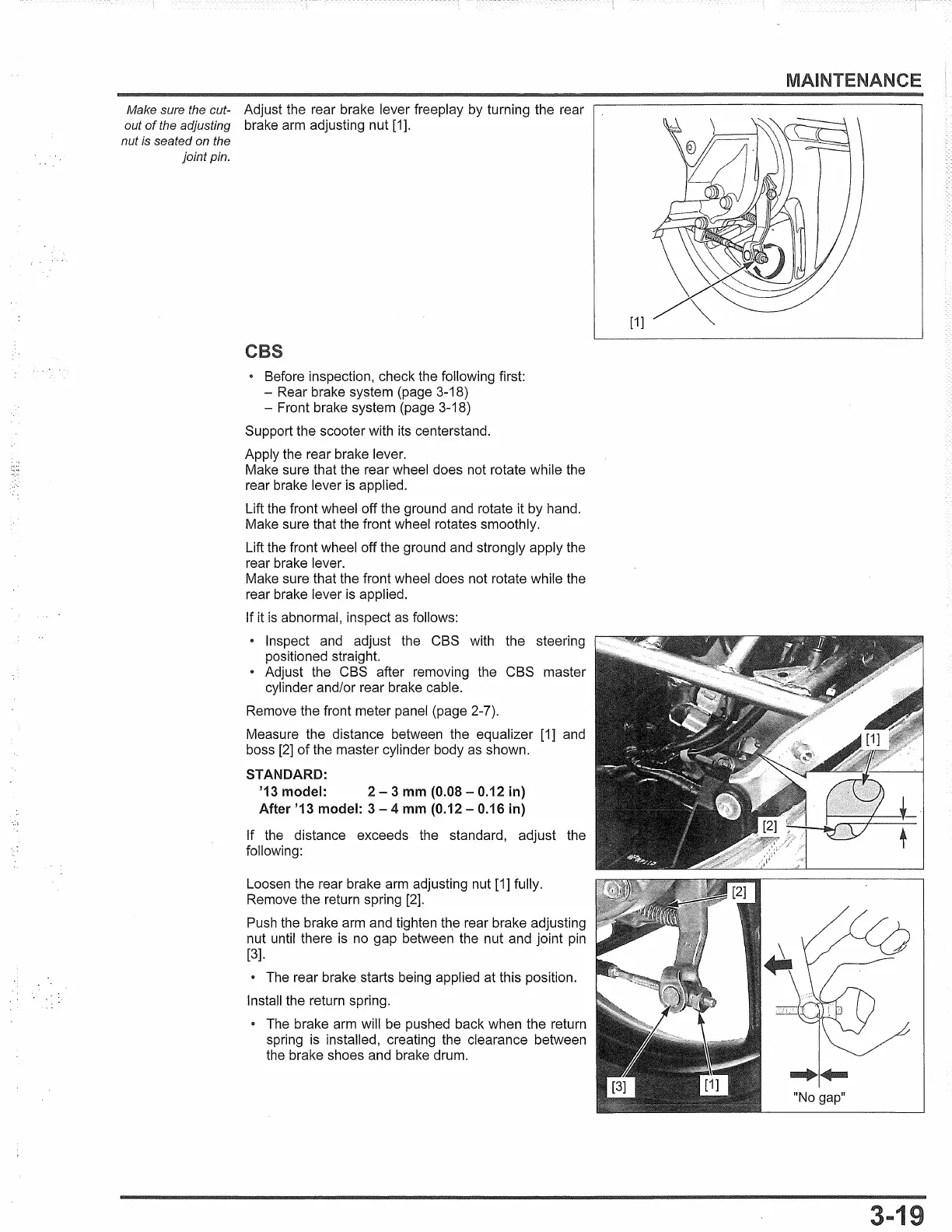

Make sure the cut- Adjust the rear brake lever freeplay by turning the rear
out
of
the adjusting brake arm adjusting nut [1].
nut is seated on the
joint pin.
• Before inspection, check the following first:
- Rear brake system (page 3-18)
- Front brake system (page 3-18)
Support the scooter with its centerstand.
Apply the rear brake lever.
Make sure that the rear wheel does not rotate while the
rear brake lever is applied.
Lift the front wheel off the ground and rotate it by hand.
Make sure that the front wheel rotates smoothly.
Lift the front wheel off the ground and strongly apply the
rear brake lever.
Make sure that the front wheel does not rotate while the
rear brake lever
is
applied.
If it
is
abnormal, inspect
as
follows:
• Inspect and adjust the CBS with the steering
positioned straight.
• Adjust the CBS after removing the CBS master
cylinder and/or rear brake cable.
Remove the front meter panel (page 2-7).
Measure the distance between the equalizer [1] and
boss
[2]
of
the master cylinder body as shown.
STANDARD:
'13 model: 2 - 3
mm
(0.08 - 0.12 in)
After '13 model: 3
-4
mm
(0.12-
0.16 in)
If the distance exceeds the standard, adjust the
following:
Loosen the rear brake arm adjusting nut [1] fully.
Remove the return spring [2].
Push the brake arm and tighten
th.e
rear brake adjusting
nut until there
is
no gap between the nut and joint pin
[3].
• The rear brake starts being applied at this position.
Install the return spring.
• The brake arm will be pushed back when the return
spring
is
installed, creating the clearance between
the brake shoes and brake drum.
MAINTENANCE
[1]
3-1
