Honda PCX150 2016 User Manual

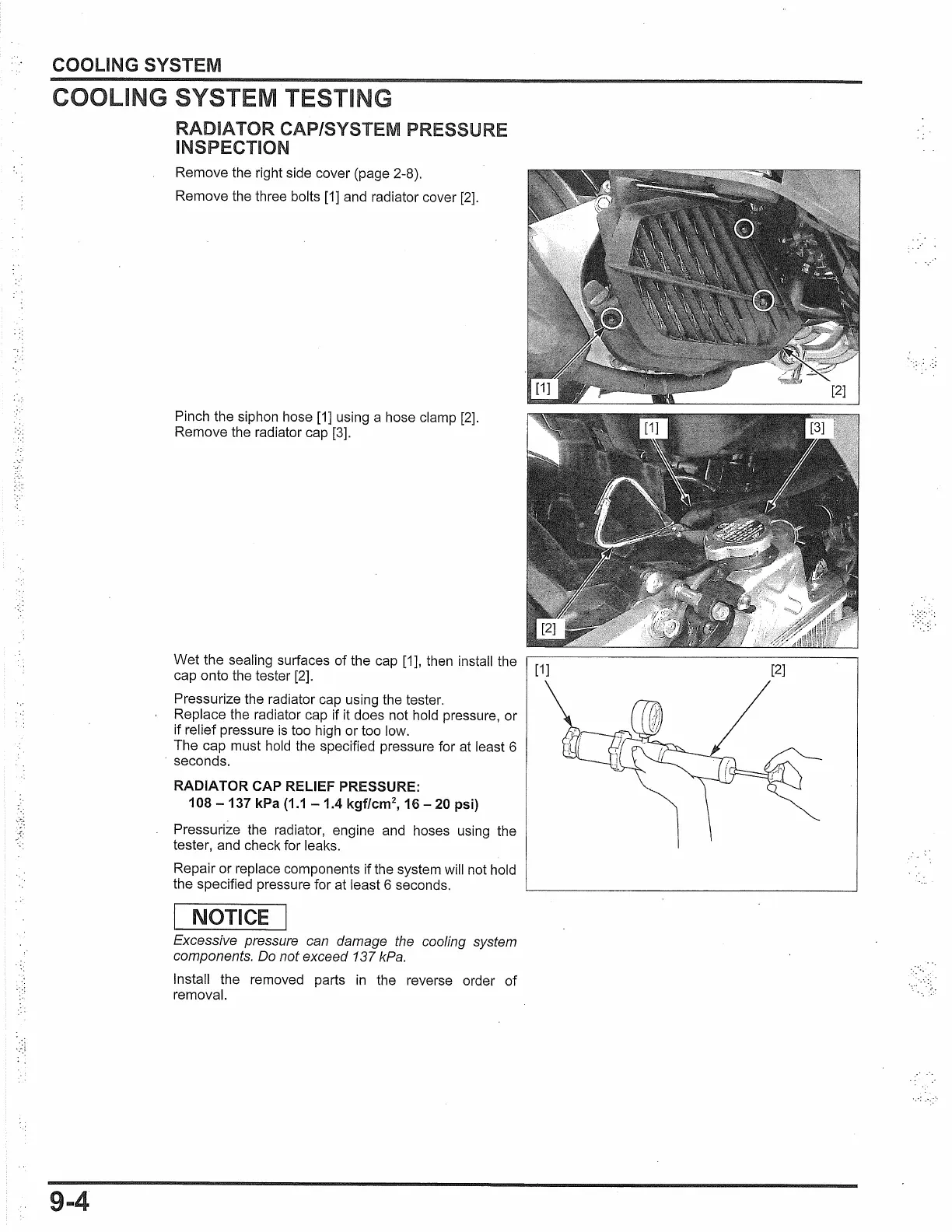

COOLING SYSTEM
9-4
NG
SYSTEM TEST
RADIATOR CAP/SYSTEM PRESSURE
INSPECTION
Remove the right side cover (page 2-8).
Remove the three bolts
[1]
and radiator cover
[2].
Pinch the siphon hose
[1]
using a hose clamp
[2].
Remove the radiator cap [3].
Wet the sealing surfaces of the cap [1], then install the
cap onto the tester [2].
Pressurize the radiator cap using the tester.
Replace the radiator cap if it does not hold pressure, or
if relief pressure
is
too high or too low.
The cap must hold the specified pressure for at least 6
· seconds.
RADIATOR CAP RELIEF PRESSURE:
108
-137
kPa
(1.1
-1.4
kgf/cm
2
,
16-20
psi)
Pressurize the radiator, engine and hoses using the
tester, and check for leaks.
Repair or replace components if the system will not hold
the specified pressure for at least 6 seconds.
I
NOTICE
I
Excessive pressure can damage the cooling system
components. Do not exceed 137
kPa.
Install the removed parts
in
the reverse order of
removal.
[1]
[2]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
