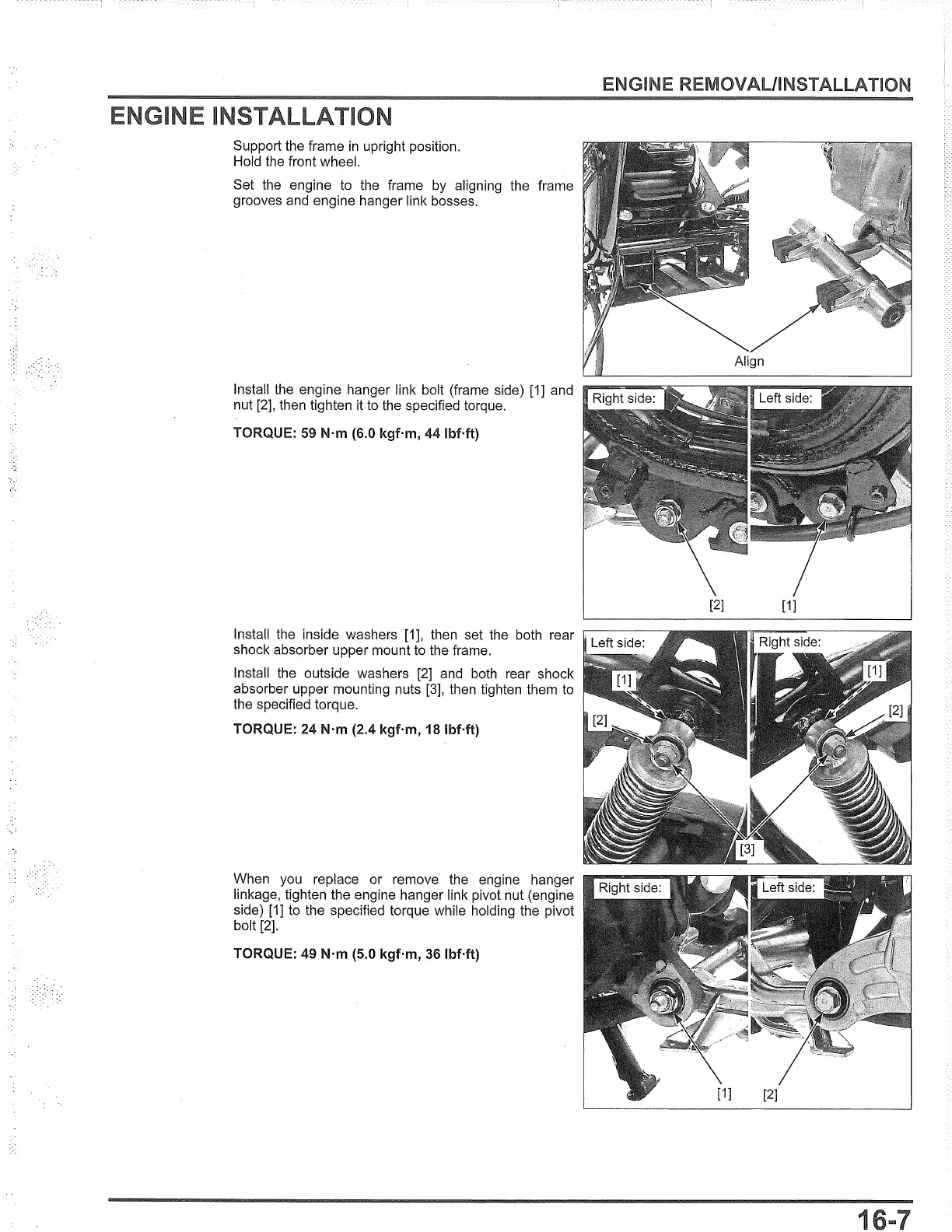

Honda PCX150 2016 - ENGINE INSTALLATION

Support the frame
in
upright position.
Hold the front wheel.
Set the engine
to
the frame by aligning the frame
grooves and engine hanger link bosses.
Install the engine hanger link bolt (frame side)
[1]
and
nut
[2],
then tighten it
to
the specified torque.
TORQUE: 59 N·m (6.0 kgf·m, 44
lbHt)
Install the inside washers [1], then set the both rear
shock absorber upper mount to the frame.
Install the outside washers [2] and
both
rear shock
absorber upper mounting nuts
[3],
then tighten them
to
the specified torque.
TORQUE: 24 N·m (2.4 kgf·m, 18
lbHt)
When you replace or remove the engine hanger
linkage, tighten the engine hanger link pivot nut (engine
side)
[1]
to the specified torque while holding the pivot
bolt
[2].
TORQUE: 49 N·m (5.0 kgf·m, 36
lbHt)
