Honda PCX150 2016 User Manual

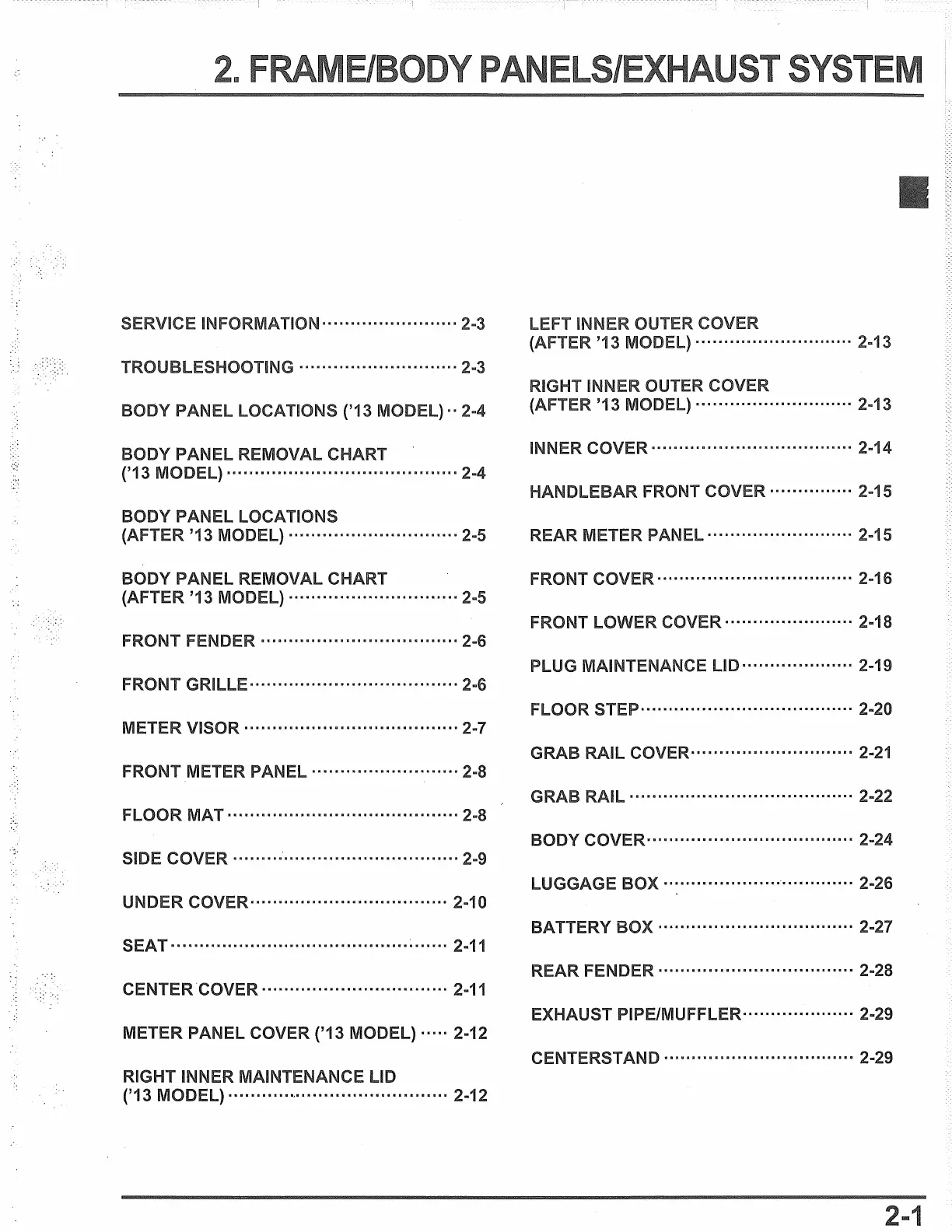

SERVICE INFORMATION········ ................ 2-3
TROUBLESHOOTING ·· · · · · · · ···· · · · · · · · · · ···
·· · · 2-3
BODY PANEL LOCATIONS ('13 MODEL) .. 2-4
BODY PANEL REMOVAL CHART
('13
MODEL)········································· 2-4
BODY PANEL LOCATIONS
(AFTER '13 MODEL)
.............................. 2-5
BODY PANEL REMOVAL CHART
(AFTER '13 MODEL) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2-5
FRONT FENDER
................................... 2-6
FRONT
GRILLE·····································
METER VISOR .... ···························· .. ···· 2-7
FRONT METER
PANEL·························· 2-8
FLOOR
MAT········································· 2-8
SIDE COVER
........ : ............................... 2-9
UNDER COVER .. · .. · .. ·· .. ··· .. ·· .. · .. · .... · .... · 2-10
SEAT
.......................................... ~ ...... 2-11
CENTER COVER································· 2-11
METER PANEL COVER ('13 MODEL)····· 2-12
RIGHT INNER MAINTENANCE LID
('13 MODEL) ............ , ........................... 2-12
INNER OUTER
(AFTER '13 MODEL) · · · · · · · · · · .. · · · · · · · .. · · · · · · · 2-13
RIGHT INNER OUTER COVER
(AFTER '13 MODEL) · · · · · · · .... · · · · · · · · · · .. · ·
.. · 2-13
INNER
COVER··· .. · .. ·························... 4
HANDLEBAR FRONT COVER ............... 2-15
REAR METER
.......................... 2-15
FRONT
COVER································ .. · 2-16
FRONT LOWER COVER··· .. · ..
············ .. · 2-18
PLUG MAINTENANCE
LID···················· 2-19
FLOOR
STEP······································ 2-20
GRAB RAIL COVER
............................. 2-21
GRAB RAIL········································
BODY COVER····································· 2 .. 24
LUGGAGE
BOX·································· 2-26
BATTERY
BOX··································· 2-27
REAR FENDER ...... ···· ..
················ .. ····· 2-28
EXHAUST PIPE/MUFFLER ....
········ .... · .. · 2-29
CENTERSTAND
.................................. 2-29

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
