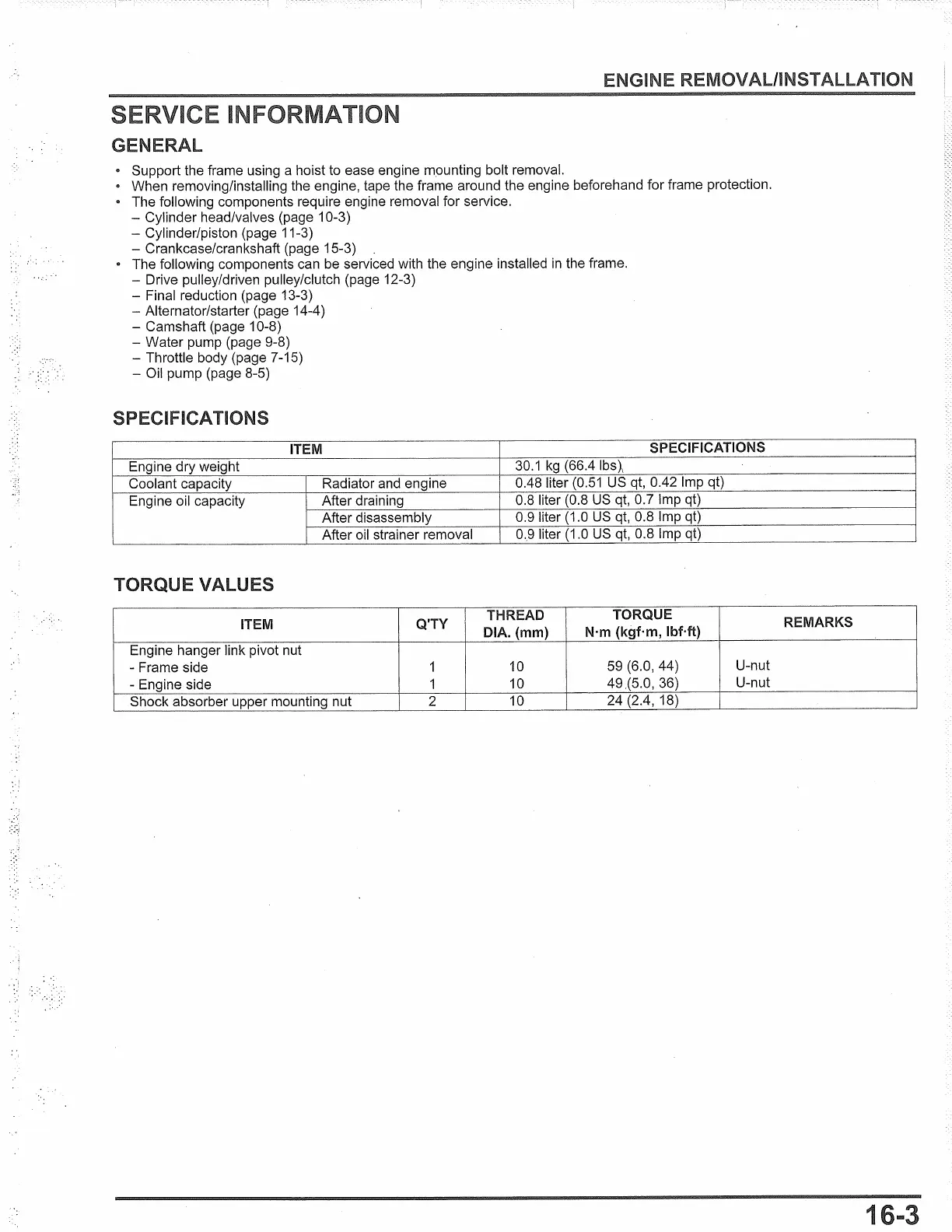

ENGINE REMOVAL/INSTALLATION
GENERAL
• Support the frame using a hoist to ease engine mounting bolt removal.
• When removing/installing the engine, tape the frame around the engine beforehand for frame protection.
• The following components require engine removal for service.
- Cylinder head/valves (page 10-3)
- Cylinder/piston (page 11-3)
- Crankcase/crankshaft (page 15-3)
• The following components can be serviced with the engine installed
in
the frame.
- Drive pulley/driven pulley/clutch (page 12-3)
- Final reduction (page 13-3)
- Alternator/starter (page 14-4)
- Camshaft (page 10-8)
-
Water
pump (page 9-8)
- Throttle body (page 7-15)
- Oil pump (page 8-5)
SPECIFICATIONS
ITEM
SPECIFICATIONS
Engine dry weight
30.1
kg
(66.4 lbs)
1
Coolant capacity
Radiator and engine
0.48 liter (0.51 US qt, 0.42 Imp qt)
Engine oil capacity
After draining 0.8 liter (0.8 US qt,
0.
7 Imp qt)
After disassembly 0.9 liter (1.0 US qt, 0.8 Imp qt)
After oil strainer removal 0
..
9 liter (1.0 US qt, 0.8 Imp qt)
TORQUE VALUES
ITEM
Q'TY
THREAD TORQUE
DIA. (mm)
N·m (kgf·m,
lbMt)
Engine hanger link pivot nut
- Frame side
1
10 59 (6.0, 44)
U-nut
- Engine side
1
10
49 ,(5.0, 36)
U-nut
Shock absorber upper mounting nut
2 10
24 (2.4, 18)
REMARKS
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
