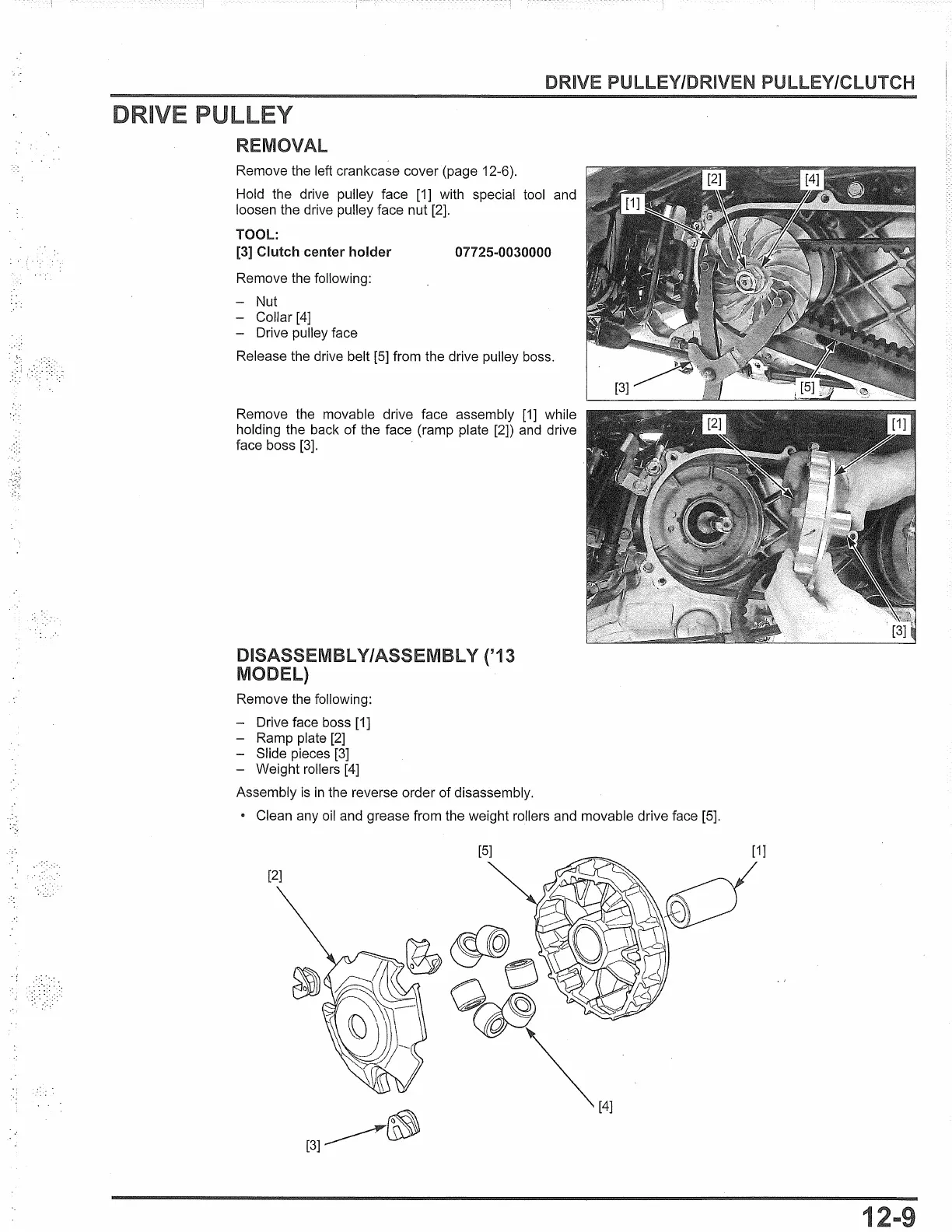

REMOVAL
Remove the left crankcase cover (page 12-6).
Hold the drive pulley face [1] with special tool and
loosen the drive pulley face nut
[2].
TOOL:
[3] Clutch center holder
Remove the following:
- Nut
- Collar
[4]
- Drive pulley face
07725-0030000
Release the drive belt [5] from the drive pulley boss.
Remove the movable drive face assembly
[1] while
holding the back
of the face (ramp plate [2]) and drive
face boss
[3].
DISASSEMBLY/ASSEMBLY {'13
MODEL)
Remove the following:
- Drive face boss
[1]
- Ramp plate [2]
- Slide pieces [3]
- Weight rollers [4]
Assembly is in the reverse order of disassembly.
PULLEY/DRIVEN PULLEY/CLUTCH
• Clean any oil and grease from the weight roHers and movable drive face [5].
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
