Honda PCX150 2016 User Manual

HYDRAULIC BRAKE
Install the CBS master cylinder reservoir
[1]
and bolt [2],
then tighten the bolt to the specified torque.
TORQUE: 6 N·m (0.61 kgf·m, 4.4 lbf·ft)
Install the inner cover (page 2-13).

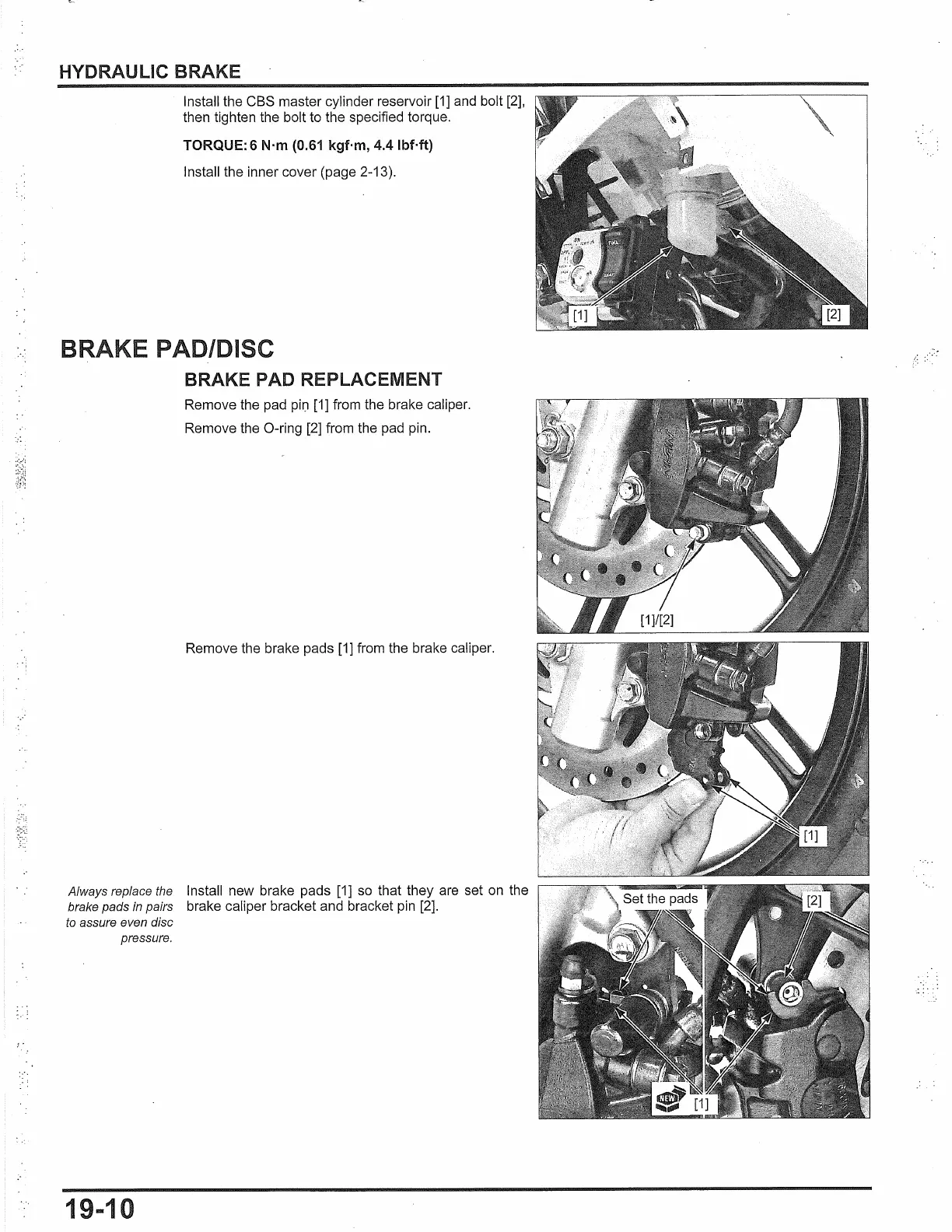

BRAKE PAD/DISC
BRAKE PAD REPLACEMENT
Remove the pad pin [1] from the brake caliper.
Remove the 0-ring [2] from the pad pin.
Remove the brake pads
[1]
from the brake caliper.
Always replace the
Install new brake pads
[1]
so
that they are set
on
the
brake pads in pairs
brake caliper bracket and bracket pin [2].
to
assure even disc
pressure.
19-10

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
