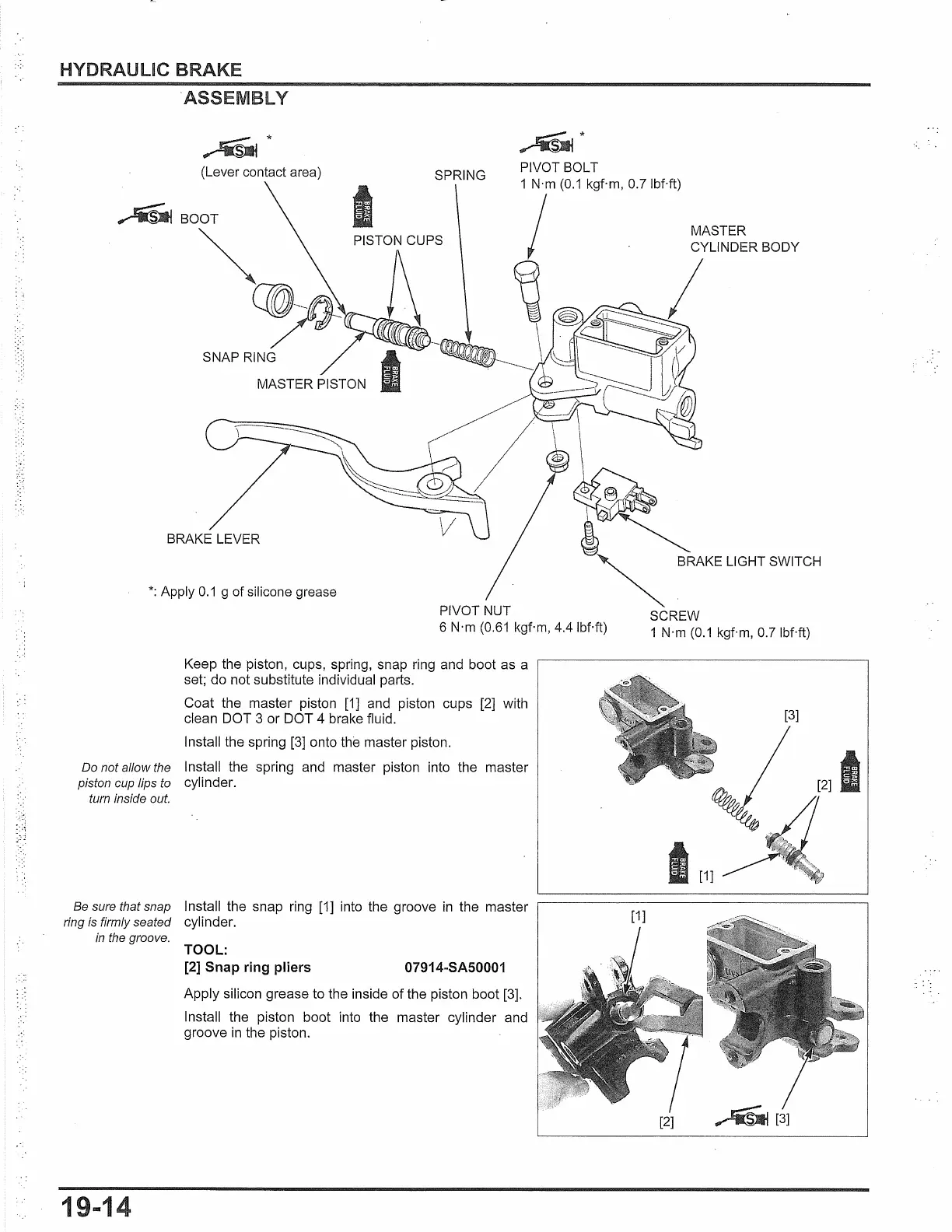

HYDRAULIC BRAKE
-ASSEMBLY
~*
~*
(Lever contact area)
SPRING
SNAP RING
BRAKE LEVER
*:
Apply
0.1
g of silicone grease
PIVOT NUT
6 N·m
(0.61
kgf·m, 4.4 lbMt)
Keep the piston, cups, spring, snap ring and boot as a
set; do not substitute individual parts.
Coat the master piston
[1]
and piston cups
[2]
with
clean DOT 3 or DOT 4 brake fluid.
Install the spring
[3]
onto the master piston.
Do not allow the
Install the spring and master piston into the master
piston cup lips to
cylinder.
turn inside out.
Be sure that snap
Install the snap ring [1] into the groove
in
the master
ring is firmly seated
cylinder.
in
the groove.
19-1
TOOL:
[2]
Snap ring pliers 07914-SA50001
Apply silicon grease to the inside of the piston boot [3].
Install the piston boot into the master cylinder and
groove
in
the piston.
MASTER
CYLINDER BODY
SCREW
1 N·m
(0.1
kgf·m,
0.7
lbMt)
[2]
~[3]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
