Honda PCX150 2016 User Manual

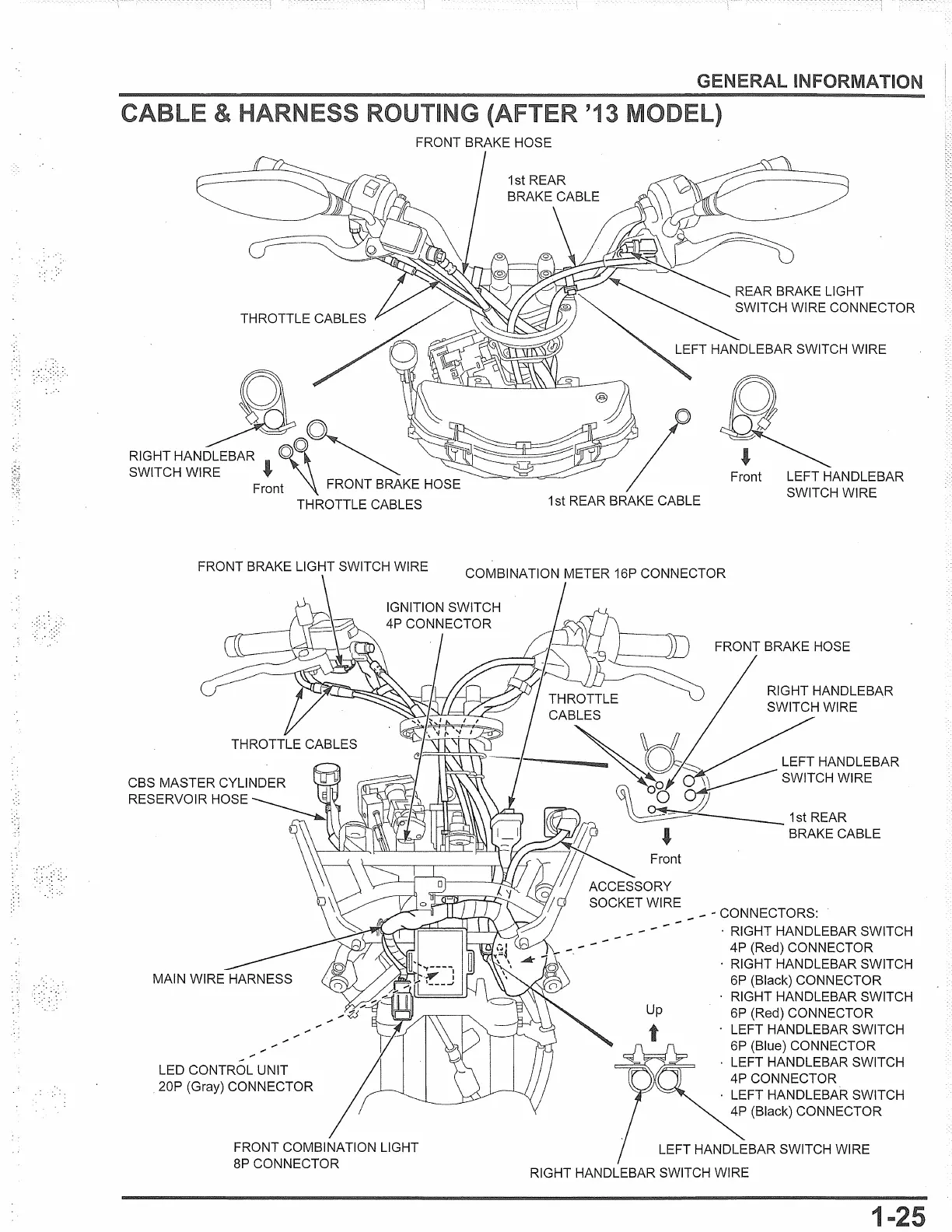

INFORMATION
FRONT BRAKE HOSE
THROTTLE CABLES
SWITCH WIRE
.J ~
Front LEFT HANDLEBAR
SWITCH WIRE
Front FRONT BRAKE HOSE
THROTTLE CABLES
FRONT BRAKE LIGHT SWITCH WIRE
~
LED CONTROL UNIT
20P (Gray) CONNECTOR
FRONT COMBINATION LIGHT
SP CONNECTOR
1st REAR BRAKE CABLE
COMBINATION METER 16P CONNECTOR
-~~J)
~
THROTTLE
CABLES
FRONT BRAKE HOSE
1--,..._-~ ~~ LEFTHANDLEBAR
- ~ ~SWITCH WIRE
~1stREAR
fl .J BRAKE CABLE
7/ Front
I I ACCESSORY
SOCKET WIRE - - - CONNECTORS:
· RIGHT HANDLEBAR SWITCH
4P (Red) CONNECTOR
· RIGHT HANDLEBAR SWITCH
6P (Black) CONNECTOR
· RIGHT HANDLEBAR SWITCH
Up 6P (Red) CONNECTOR
t · LEFT HANDLEBAR SWITCH
6P (Blue) CONNECTOR
· LEFT HANDLEBAR SWITCH
4P CONNECTOR
· LEFT HANDLEBAR SWITCH
4P (Black) CONNECTOR
RIGHT HANDLEBAR SWITCH WIRE
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
